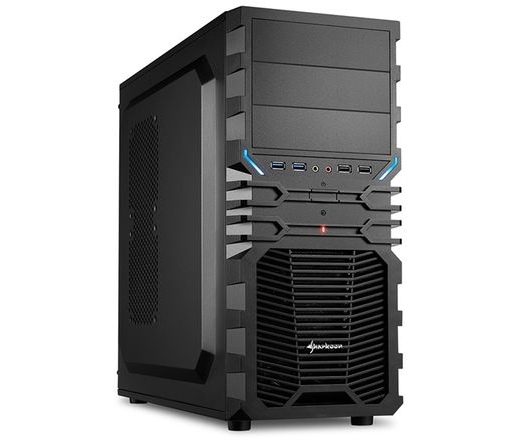

Sharkoon - VG4-V

Max. Alaplap kompatibilitás	ATX
Beépített tápegység	Tápegység nélküli
Tápegység elhelyezkedés	Alsó ATX
Oldallap	Fém
Világítás	Nincs
Extra tulajdonság	Előlapi USB 3.0 Kábelmenedzsment Vízhűtés kompatibilis
Szín	Fekete
Beépíthető HDD-k (3,5") száma	3 db
Beépíthető SSD-k (2,5") száma	4 db
Előlapi (5,25") bővítőhelyek száma	2 db
Beépített ventilátorok	2 db
Beépíthető ventilátorok(12CM) száma	4 db
Processzorhűtő maximális magassága	160 mm
Videokártya maximális hossza	385 mm

The VG4-V case stands out due to its versatile features at an attractive price. The ATX case is available in black. In the front, two USB 3.0 (internal 19-pin mainboard connector incl. USB 2.0 plug), two USB 2.0 and two audio connection options are provided.

Generous space:
Thanks to the provided side panels the VG4-V offers space for the hassle-free installation of tower coolers with a height of up to 16 cm. Graphics cards with a maximum length of up to 31/38.5 cm (after removing the SSD hard drive cage) can also be mounted. A total of up to six expansion cards can be installed. The maximum length for power supplies is 25 cm; a suitable dust filter is pre-installed on the bottom. The VG4-V offers installation openings for a CPU cooler, two openings for optional water cooling as well as a comfortable cable management system.

Fan configuration:
A 120 mm fan and provided dust filter are pre-installed in the front. In order to further strengthen the air flow inside the case, two additional 120 mm fans can be optionally mounted on the side panel. The rear panel offers a pre-installed 120 mm fan.

Front connections:
Two USB 3.0 (internal 19-pin mainboard connector incl. USB 2.0 plug), two USB 2.0 as well as two audio plugs in the front offer quick access for connecting peripherals.

Installation options for drives:
The ATX case offers three 5.25"drive bays for optical drives (two of which are equipped with quick fasteners) or two 5.25" drive bays and an externally accessible 3.5” bay. Here, for example, a card reader can be quickly and easily installed. Internally, three 3.5” hard drives can be installed using the quick fasteners. In the second mounting frame can three 2.5” HDDs/SDDs be installed, in the bottom of the case there is space for an additional 2.5” HDD/SSD.

Features:

• ATX case
• Mounting possibilities: 3x 5.25" drive bays (external) or 2x 5.25" drive bays +1x 3.5" bay (external) + 3x 3.5" hard drive bays (internal) + 4x 2.5" SSDs/HDDs (internal)
• Front I/O: 2x USB 3.0 (internal 19-pin mainboard connector incl. USB 2.0 plug), two USB 2.0 and two audio plugs.
• 6 slots for expansion cards
• Quick fasteners for two optical drives and three 3.5" hard drives
• Installation opening for CPU cooler
• 2 openings for water cooling
• Cable management system
• Dimensions: 445 x 200 x 430 mm (L x W x H)
• Weight: ~3.5 kg

Fan configuration:

Case front:	1x 120 mm fan (pre-installed)
Side panel:	2x 120 mm fan (optional)
Rear panel:	1x 120 mm fan (pre-installed)

Compatibility:

Mainboard compatibility:	mini-ITX, micro-ATX, ATX
Max. length graphics card:	31/38.5 cm (after removing the SSD hard drive cage)
Max. height CPU cooler:	16 cm
Max. length PSU:	25 cm

Package contents:

• ATX case VG4-V
• 1x slot cover, screw set, card reader mounter

General:
Form Factor:	ATX
Expansion Slots:	6
Water Cooling Openings:	2
Interior Painting:	✓
Tool-free Devices Installation:	✓
Cable Management System:	✓
Side Panel:	Metal
Weight:	4.5 kg
Dimensions (L x W x H):	44.5 x 20.0 x 43.0 cm
I/O:
USB 3.0 (Front):	2*
USB 2.0 (Front):	2
Audio (Front):	✓
Drive Bays:
5.25":	2
5.25" or 3.5":	1
5.25" to 3.5" Bay Cover:	1
3.5":	3
2.5":	4

Fan Configuration:
Front Panel:	1x 120 mm fan (pre-installed)
Side Panel:	2x 120 mm fan (optional)
Rear Panel:	1x 120 mm fan (pre-installed)
Compatibility:
Mainboard:	Mini-ITX, Micro-ATX, ATX
Max. Length Graphics Cards:	31.0/38.5 cm**
Max. Height CPU Cooler:	16.0 cm
Max. Length Power Supply:	25.0 cm
Package Contents:
VG4-V
Accessory Set
