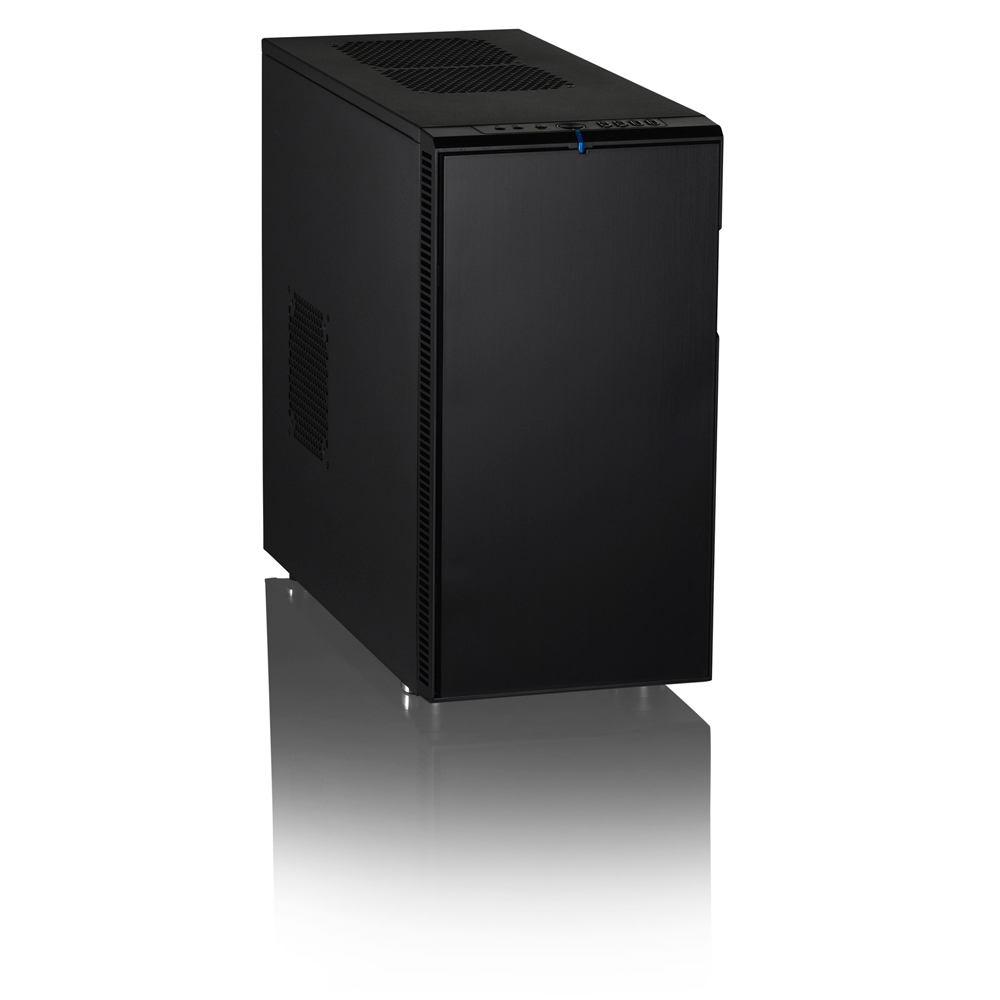

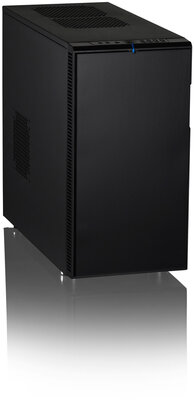

Fractal Design - Define R4

The Fractal Design Define R4 is the midi tower in the Define Series of computer cases offering minimalistic and stunning Scandinavian design fused with maximum sound reduction, configurability and functionality.

The Define R4 side and front door panels are fitted with dense, sound-absorbing material making it a benchmark for noise reduction. Moreover, the Define R4 accommodates up to 8 HDDs, all modern graphics card sizes, and multiple ventilation options - including two standard Silent Series R2 hydraulic bearing fans - to keep internal components at optimal temperatures.

For ultimate functionality, the Define R4 features a front interface with USB 3.0 and an integrated three-speed fan controller behind the front panel door.

Key features

• High density noise-reducing material for an optimal silent case - To achieve a high level of noise reduction, material with mass should be incorporated which is what we strive to achieve with the dense bitumen used on the side panels
• Patent pending ModuVent™ design allowing the user to choose between optimal silence or maximum airflow
• Top HDD cage (5 trays total) can be rotated 90 degrees or removed for additional airflow or to accommodate long graphic cards up to 430mm in length
• Three-speed fan controller is strategically integrated in the front panel and supports up to 3 fans
• Two Silent Series R2 fans included, featuring hydraulic bearings contributing to a longer life expectancy – Silent Series R2 retail fans will now come standard in all cases
• Wider case body that allows for improved cable routing behind the motherboard – now 26mm wide
• New tool-less front fan holder makes switching front fans a breeze
• Two SSDs can be mounted on the back of the motherboard plate in addition to the 8 slots in the HDD trays, for a total of 10 SSD positions available

Specifications

• ATX, Micro ATX, Mini ITX motherboard compatibility
• 7 + 1 expansion slots
• 2 - 5.25" bays
• 8 - 3.5" HDD trays - all compatible with SSDs, 2 - 2.5" extra SSD positions
• 3 - ModuVent™ plates - two in the top and one in the side
• 7 - fan positions (2 Silent Series R2 fans included)
• Filtered fan slots in the front and bottom
• CPU coolers up to 170mm tall (when no fan is installed in the side panel)
• ATX PSUs up to 170mm deep when using the bottom fan location, when not using this fan location longer PSUs (up to 270mm deep) can be used
• Graphics cards up to 295mm in length with the top HDD cage installed
• With the top cage removed, graphics cards up to 430mm in length may be installed
• 26mm of space for cable routing behind the motherboard plate
• Thick rubber grommets on all holes on the motherboard plate
• Colours available: Black Pearl, Titanium Grey, Arctic White
• Case dimensions (WxHxD): 232 x 464 x 523mm
• Package dimensions (WxHxD): 320 x 535 x 610mm
• Net weight: 12.3 kg

Cooling system

• Front: 1 - 120/140mm fan (included is a hydraulic bearing 140mm Silent Series R2 fan, 1000 RPM speed; 1 - 120/140mm fan (not included)
• Rear: 1 - 120/140mm fan (included is a hydraulic bearing 140mm Silent Series R2 fan, 1000 RPM speed)
• Top: 2 - 120/140mm fans (not included) - positions also support some models of 240 radiators, depending on configuration
• Bottom: 1 - 120/140mm fan (not included)
• Side: 1 - 120/140mm fan (not included)
• Fan controller: 1 - Integrated fan controller for up to 3 fans (included)

Front interface

• 2 - USB 3.0, 2 - USB 2.0
• Audio I/O
• Power button with LED (blue)
• Reset button
• Fan controller (behind door)

Package contents

• Define R4 computer case
• User manual
• Accessory box
