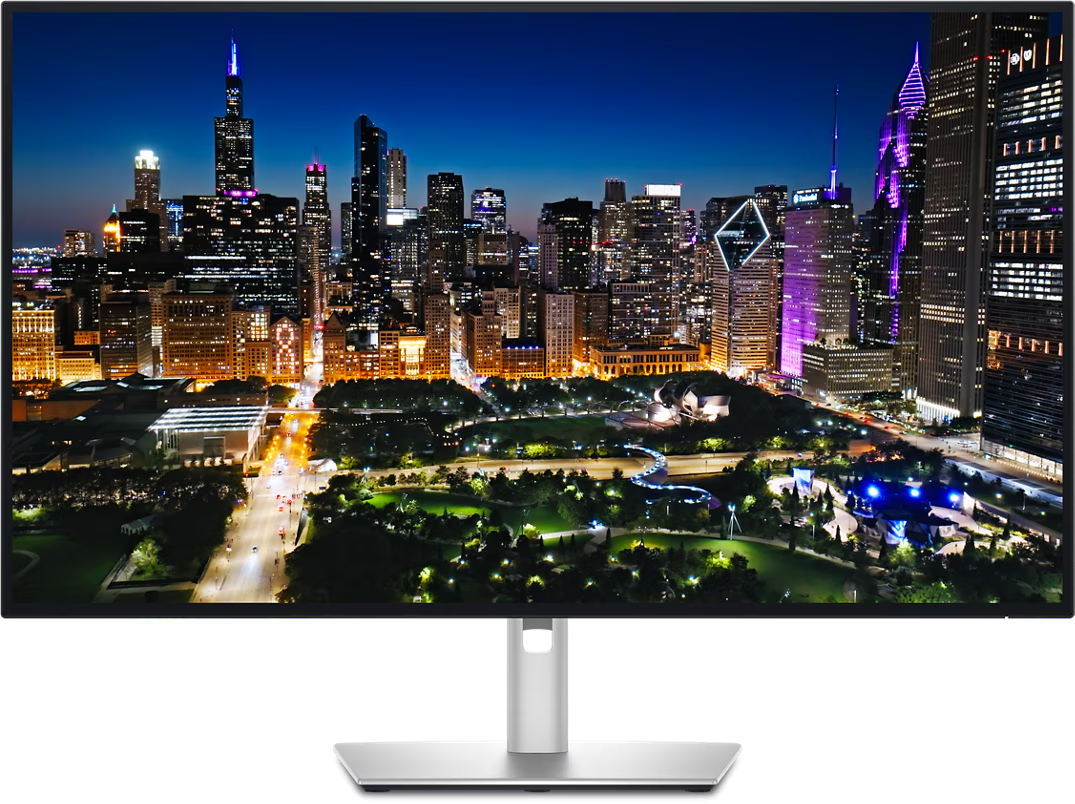

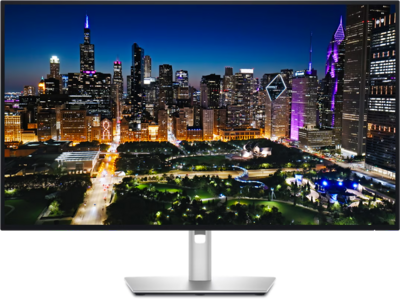

DELL - UltraSharp 32 U3225QE - 210-BQTK

ech Specs

Technical Information

Number of Screens

1

Screen Size Class

32"

Viewable Screen Size

31.5"

Screen Mode

4K UHD

Panel Technology

In-plane Switching (IPS) Black Technology

Response Time Details

• 5ms GTG (Fast)
• 8ms GTG

Aspect Ratio

16:9

Pixel Pitch

0.18159 mm x 0.18159 mm

Horizontal Viewing Angle

178^°

Vertical Viewing Angle

178^°

Mount Type

Panel Mount

Backlight Technology

LED Edgelight System

HDCP Supported

Yes

Maximum Adjustable Height

150 mm

Tilt Angle

-5^° to 21^°

Swivel Angle

-30^° to 30^°

Pivot Angle

-90^° to 90^°

Features

• VESA DisplayHDR 600
• Eye Comfort Technology
• Narrow Bezel
• Mercury-free
• Arsenic-free Glass
• Low reflectance with anti-glare and hard-coating 3H
• PVC Free
• BFR Free
• Picture by Picture
• Picture in Picture
• Cable Lock Slot
• Security Lock
• Ambient Light Sensor
• Color Calibration

Horizontal Frequency

30 kHz to 275 kHz

Vertical Frequency

48 Hz to 120 Hz

Adjustable Stand

Yes

Stand Adjustments

• Swivel
• Height
• Pivot
• Tilt

Stand Included

Yes

Glass Hardness

3H

Energy Efficiency Class

F

Soundbar Compatibility

Optional soundbar (sold separately)

Video

Maximum Resolution

3840 x 2160 up to 120 Hz

Standard Refresh Rate

120 Hz

Colour Supported

1.07 Billion Colours

Native Contrast Ratio

3,000:1

Brightness

• 450 cd/m²
• 600 cd/m²

Colour Gamut

• DCI-P3 99% (CIE1976) (typical)
• Display P3 99%
• sRGB 100% (CIE1931) (typical)
• BT.709 100%
• Delta E <1.5 (Average)

Pixel Per Inch (PPI)

140

Interfaces/Ports

Connectivity

• 1 DisplayPort 1.4 port with DSC support (DRR for Microsoft Windows)
• 1 DisplayPort 1.4 port out
• 1 HDMI port (Supports up to UHD 3840 x 2160 120Hz FRL, VRR as per specified in HDMI2.1)
• 1 Thunderbolt 4 upstream port (DP1.4 (HDCP 2.2) with DSC support, PD: Up to 140W EPR, 2/4 Lanes switching)
• 1 Thunderbolt 4 downstream port (Downstream, Daisy Chain, 15 W)
• 1 USB-C (USB 10Gbps KVM) upstream port
• 1 Analog 2.0 audio line out port (3.5 mm jack)
• 4 USB Type-A ports 10Gbps
• 1 RJ45 Ethernet port, 2.5GbE

• 1 USB Type-A 10Gbps port with BC 1.2
• 2 USB-C 10Gbps downstream ports

USB Type-C (Power Delivery)

Up to 140W EPR

Audio Line Out

Yes

Built-in Devices

Built-in Devices

Ambient Light Sensor

Environmental Conditions

Operating Temperature Range

0^°C) to 40^°C)

Non-operating Temperature Range

-20^°C to 60^°C

Operating Humidity Range

10% to 80% (Non-condensing)

Non-operating Humidity Range

5% to 90% (Non-condensing)

Maximum Operating Altitude

4998.72 m

Maximum Non-operating Altitude

12192 m

Power Description

Input Voltage Range

100V AC to 240V AC

Operating Power Consumption

30.50 W

Standby Power Consumption

0.5 W

Off-Mode Power Consumption

0.3 W

Frequency

• 60 Hz
• 50 Hz

Maximum Power Consumption

335 W

Voltage Current

4.20 Ah

Physical Characteristics

VESA Mount Compatible

Yes

VESA Mount Standard

100 x 100

Height

410.34 mm

Width

713.20 mm

Depth

57.50 mm

Height with Stand

618.94 mm

Width with Stand

713.20 mm

Depth with Stand

215 mm

Compressed Height with Stand

468.94 mm

Extended Height with Stand

618.94 mm

Weight (Approximate)

6.52 kg

Weight with Stand (Approximate)

9.34 kg

Miscellaneous

Package Contents

• UltraSharp 32 4K Thunderbolt Hub Monitor U3225QE
• Stand
• Drivers and Documentation Media
• QR Card
• Safety Information

Cables Included

• Power Cable
• 1 x DisplayPort-DisplayPort Cable - 1.80 m
• 1 x USB Type-A to Type-C Upstream Cable 1.00 m
• 1 x Thunderbolt 4 passive cable - 1.00 m

Energy Star

Yes

Country of Origin

China

TCO Certified

Yes

Dell Display Manager Compatibility

Yes

Environmentally Friendly

Yes

Environmental Certification

TCO Certified Edge

Energy Efficiency Certification

ENERGY STAR 8.0

Energy Efficiency Compliance

Energy-related Products Directive Lot 5 (ErP Lot 5)

Environmental Compliance

Restriction of Hazardous Substances (RoHS)
