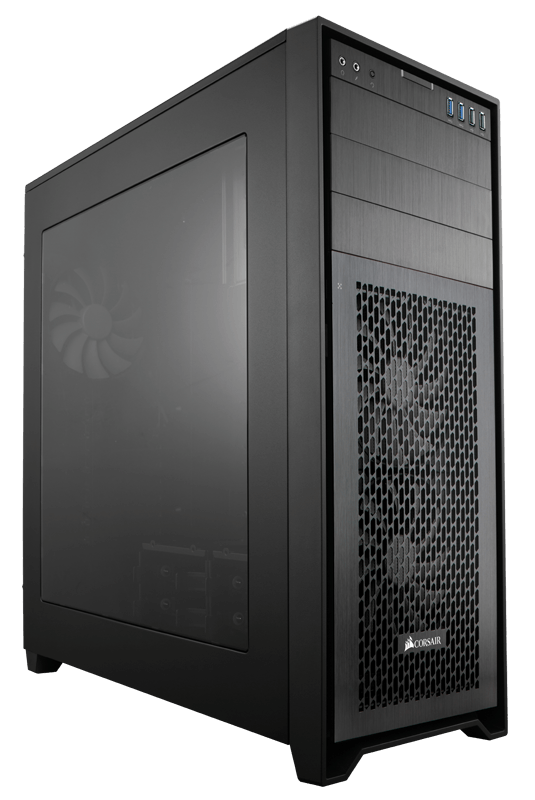

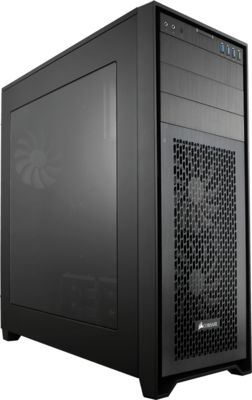

Corsair - Obsidian Series 750D - CC-9011078-WW

The high airflow full tower Obsidian Series case for great-looking high performance PCs

If you’re building a high-performance full tower PC system, Obsidian Series 750D Airflow Edition is a great start.

It combines generous expansion flexibility, excellent air or water cooling capabilities, and an interior optimized for fast and easy builds and upgrades.

The exterior is built from solid steel and brushed aluminum for a clean, elegant look.

Minimalist style, maximum potential

The 750D Airflow has a clean, elegant exterior that dispenses with arbitrary plastic add-ons in exchange for the beauty of brushed aluminum and solid steel. This rigid, rugged exterior surrounds a frame that has ample room for high-performance components and the sophisticated cooling you’ll need if you’re going to push those components to their limits.

Modular drive cage system

The tool-free drive bays can be moved and removed, so you can use only what you need for your particular storage requirements. In turn, you’ll get increased space for components and better airflow potential.

Package contents

• Obsidian Series 750D Airflow Edition Full Tower ATX Case
• Quick Start Guide

Compatibility

• E-ATX, ATX, Micro ATX, XL-ATX and Mini-ITX motherboards

Technical specifications

• Generous expansion room for building high-performance systems
• High airflow front mesh design for excellent aircooling performance
• Full side panel window to view your components
• Tool-free SSD, Hard Drive, and Optical Drive installation
• Includes three AF140L fans, with room for up to eight fans
• Modular drive cage system for highly customizable layouts
  • Two modular drive cages house three 3.5” or 2.5” drives each
  • Four tool-free dedicated SSD cages, sideways mounted

• Radiator and fan compatibility:
  • Top: 3 x 120mm or 2 x 140mm
  • Front: 2 x 140mm or 2 x 120mm (2 x 140mm included)
  • Bottom: 2 x 120mm
  • Rear: 1 x 140mm or 120mm (140mm included)
• Two USB 3.0 and two USB 2.0 front panel connectors, plus headphone and microphone
• Easily accessed front, top, and PSU dust filters
• Excellent cable routing with rubber grommets for clean builds
• Nine expansion slots for multiple PCI-E devices or large motherboards
• Maximum CPU Cooler Height 170mm
• Maximum GPU Length 450mm

Warranty

Two years

Weight

9.7kg

Color

Black

Case Form Factor

Full-Tower

Dimensions

560mm x 235mm x 546mm

Case Motherboard Support

Mini-ITX, MicroATX, ATX, E-ATX, XL-ATX

Maximum GPU Length

450mm

Maximum CPU Cooler Height

170mm

Maximum PSU Length

220mm

Case Expansion Slots

9

Case Drive Bays

(x3) 5.25in
(x4) 2.5in
(x6) Combo 3.5in/2.5in

Case Material

Brushed Aluminum and Steel

Case Power Supply

ATX (not included)

External Connections

(x2) USB 2.0
(x2) USB 3.0
(x1) Headphone Port
(x1) Microphone Port

Fan Mount Locations

Front: (x2) 120/140mm
Top: (x3) 120mm or (x2) 140mm
Rear: 120/140mm
Bottom: (x2) 120mm

Fans Included

Front: (x2) 140mm
Rear: (x1) 140mm

Radiator Mount Locations

Front: 240/280mm
Top: 240/280/360mm
Rear: 120/140mm
Bottom: 120/240mm

Compatible Corsair Liquid Coolers

H55, H60, H75, H80i, H90, H100i, H105, H110
