Sharkoon - VS4-W

Max. Alaplap kompatibilitás	ATX
Beépített tápegység	Tápegység nélküli
Tápegység elhelyezkedés	Alsó ATX
Oldallap	Plexi
Világítás	Kék Led - Ventilátor
Extra tulajdonság	Előlapi USB 3.0 Kábelmenedzsment Vízhűtés kompatibilis
Szín	Fekete
Beépíthető HDD-k (3,5") száma	3 db
Beépíthető SSD-k (2,5") száma	4 db
Előlapi (5,25") bővítőhelyek száma	2 db
Beépített ventilátorok	2 db
Beépíthető ventilátorok(12CM) száma	3 db
Processzorhűtő maximális magassága	160 mm
Videokártya maximális hossza	385 mm

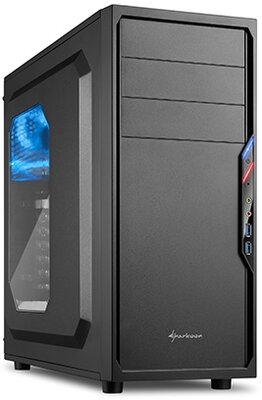

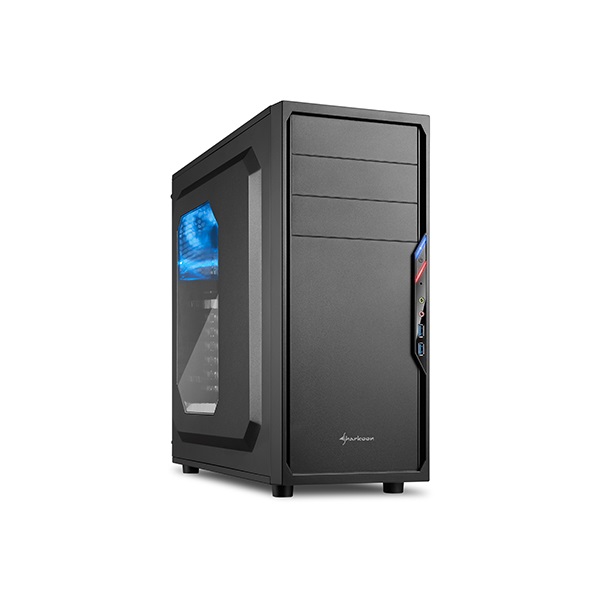

The VS4 case stands out due its versatile features at an attractive price. The all-black ATX case in the Window option provides an acrylic side window as well as two USB3.0 connection options in the front.

Generous space:
Thanks to the provided side panels the VS4-W offers space for the hassle-free installation of tower coolers with a height of up to 16 cm. Graphics cards with a maximum length of up to 31/38.5 cm (after removing the SSD hard drive cage) can also be mounted. A total of up to six expansion cards can be installed. The maximum length for power supplies is 25 cm; a suitable dust filter is pre-installed on the bottom. The VS4-W also offers installation openings for a CPU cooler, two openings for optional water cooling as well as a comfortable cable management system.

Fan configuration:
A 120 mm fan provides with dust filter pre-installed in the front and a 120 mm LED fan also pre-installed in the rear panel. In order to further strengthen the air flow inside the case, an optional 120 mm fan can also be mounted in the front.

Front connections:
Two USB 3.0ports and two audio ports in the case front offer quick access for connecting peripherals.

Installation options for drives:
The ATX case offers three 5.25” drive bays for optical drives (two of which are equipped with quick fasteners) or two 5.25" drive bays and an externally accessible 3.5” bay. Here, for example, a card reader can be fitted quickly and easily. Internally, three 3.5” hard drives with the quick fasteners can be installed. In the second mounting frame can three 2.5” HDDs/SDDs be installed, in the bottom of the case there is space for an additional 2.5” HDD/SSD.

Features:

• ATX case
• Mounting possibilities: 3x 5.25" drive bays (external) or 2x 5.25" drive bays + 1x 3.5" bay (external) + 3x 3.5" hard drive bays (internal) + 4x 2.5" SSDs/HDDs (internal)
• Front I/O: 2x USB 3.0, 2x Audio
• Black interior finish
• 6 slots for expansion cards
• Quick fasteners for two optical drives and three 3.5" hard drives
• Installation opening for CPU cooler
• 2 openings for water cooling
• Cable management system
• Acrylic side panel
• Dimensions: 445 x 200 x 430 mm (L x W x H)
• Weight: ~3.5 kg

Fan configuration:

Case front:	1x 120 mm fan (pre-installed), 1x 120 mm fan (optional)
Rear panel:	1x 120 mm LED fan (pre-installed)

Compatibility:

Mainboard compatibility:	mini-ITX, micro-ATX, ATX
Max. length graphics card:	31/38.5 cm (after removing the SSD hard drive cage)
Max. height CPU cooler:	16 cm
Max. length PSU:	25 cm

Package contents:

• ATX case VS4-W
• 1x slot cover, screw set, card reader mounter

Specifications:

General:
Form Factor:	ATX
Expansion Slots:	6
Water Cooling Openings:	2
Interior Painting:	✓
Tool-free Devices Installation:	✓
Cable Management System:	✓
Side Panel:	Acrylic
Weight:	4.5 kg
Dimensions (L x W x H):	44.5 x 20.0 x 43.0 cm
I/O:
USB 3.0 (Front):	2*
Audio (Front):	✓
Drive Bays:
5.25":	2
5.25" or 3.5":	1
5.25" to 3.5" Bay Cover:	1
3.5":	3
2.5":	4

Fan Configuration:
Front Panel:	1x 120 mm fan (pre-installed), 1x 120 mm fan (optional)
Rear Panel:	1x 120 mm LED fan (pre-installed)
Compatibility:
Mainboard:	Mini-ITX, Micro-ATX, ATX
Max. Length Graphics Cards:	31.0/38.5 cm**
Max. Height CPU Cooler:	16.0 cm
Max. Length Power Supply:	25.0 cm
Package Contents:
VS4-W
Accessory Set
