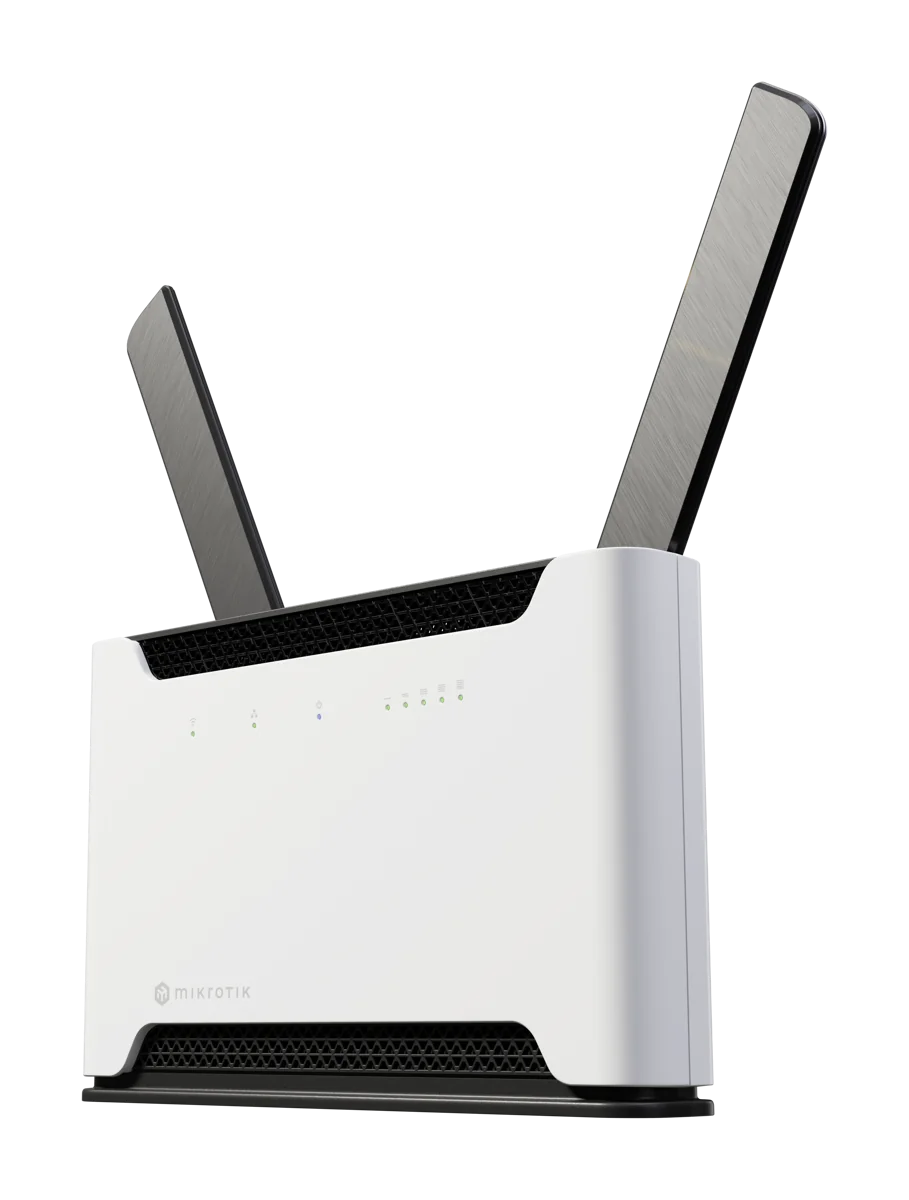

MikroTik - Chateau 5G R17 ax 4xGbE, 1x2.5G LAN port 1xSIM slot 802.11ax Wi-Fi 6 Dual-Band Vezeték nélküli LTE 5G router - S53UG+5HAXD2HAXD-TC&RG650E-EU

Specifications

• Product codeS53UG+5HaxD2HaxD-TC&RG650E-EU
• ArchitectureARM 64bit
• CPUIPQ-6010
• CPU core count4
• CPU nominal frequency864-1800 MHz
• CPU Threads count4
• Switch chip modelIPQ-6010
• RouterOS license4
• Operating SystemRouterOS v7
• Size of RAM1 GB
• Storage size128 MB
• Storage typeNAND
• MTBFApproximately 200'000 hours at 25C
• Tested ambient temperature-40°C to 70°C

Powering

• Number of DC inputs1 (DC jack)
• DC jack input Voltage12-28 V
• Max power consumption27 W
• Max power consumption without attachments18 W
• Cooling typePassive

Mobile

• 3G CategoryR8 (42.2Mbps Downlink, 5.76Mbps Uplink)
• 3G bands1 (2100MHz)
  5 (850MHz)
  8 (900MHz)
• LTE Category20 (2.0 Gbps Downlink, 211 Mbps Uplink)
• MIMO DL4x4
• MIMO UL1x1 (5G SA MIMO UL 2x2)
• LTE FDD bands1 (2100MHz)
  3 (1800MHz)
  5 (850MHz)
  7 (2600MHz)
  8 (900 MHz)
  20 (800MHz)
  28 (700MHz)
  32 (1500 MHz)
• LTE TDD bands38 (2600MHz)
  41 (2500MHz)
  42 (3500MHz)
  40 (2300MHz)
  43 (3700MHz)
• 5G NSA FDD bands1 (2100 MHz)
  3 (1800 MHz)
  5 (850 MHz)
  7 (2600 MHz)
  8 (900 MHz)
  20 (800 MHz)
  26 (850 MHz)
  28 (700 MHz)
  67 (700 MHz)
  75 (1500 MHz)
  76 (1500 MHz)
• 5G NSA TDD bands38 (2600 MHz)
  40 (2300 MHz)
  41 (2500 MHz)
  77 (3700 MHz)
  78 (3500 MHz)
• 5G SA FDD bands1 (2100 MHz)
  3 (1800 MHz)
  5 (850 MHz)
  7 (2600 MHz)
  8 (900 MHz)
  20 (800 MHz)
  26 (850 MHz)
  28 (700 MHz)
  67 (700 MHz)
  75 (1500 MHz)
  76 (1500 MHz)
• 5G SA TDD bands38 (2600 MHz)
  40 (2300 MHz)
  41 (2500 MHz)
  77 (3700 MHz)
  78 (3500 MHz)
• TAC86896506

Wireless specifications

• Wireless 2.4 GHz Max data rate574 Mbit/s
• Wireless 2.4 GHz Number of chains2
• Wireless 2.4 GHz standards802.11b/g/n/ax
• Antenna gain dBi for 2.4 GHz3
• Wireless 2.4 GHz chip modelQCN-5022
• Wireless 2.4 GHz generationWi-Fi 6
• Wireless 5 GHz Max data rate1200 Mbit/s
• Wireless 5 GHz Number of chains2
• Wireless 5 GHz standards802.11a/n/ac/ax
• Antenna gain dBi for 5 GHz6
• Wireless 5 GHz chip modelQCN-5052
• Wireless 5 GHz generationWi-Fi 6

Ethernet

• 10/100/1000 Ethernet ports4
• Number of 2.5G Ethernet ports1

Peripherals

• Number of SIM slots1 Modem (Micro SIM)
• Number of USB ports1
• USB Power ResetYes
• USB slot typeUSB type A
• Max USB current (A)1.5

Other

• CPU temperature monitorYes
• PCB temperature monitorYes
• Voltage MonitorYes
• Mode buttonYes
• eSIMYes

Certification & Approvals

• CertificationCE, EAC, ROHS
• IP20

Included parts

24V 1.2A power adapter

UTP Flat Cable (1.5m)

Note

The device has an operating system preinstalled and licensed. No separate purchase is necessary and the product is ready to use. The device includes free software updates for the life of the product or a minimum of 5 years starting from date of purchase.
