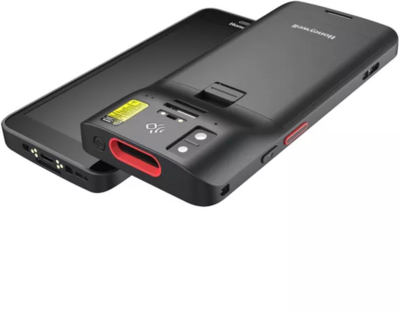

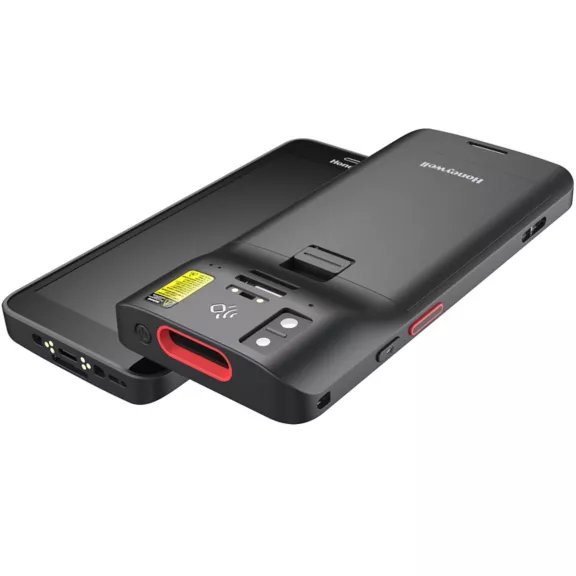

Honeywell - CT37 - Fekete

Features

• Application
• Retail, Transportation & Logistics, Field Operations and Healthcare

• Housing Grade
• Disinfectant Ready Housing

• For Use With
• Android

• Features
• Compatible with Universal Dock

• Environment
• Healthcare
• Standard

• Connectivity
• Wi-Fi

• Camera Position
• Rear and Front

• Camera
• 13-megapixel color rear camera
• 8-megapixel color front camera

Dimensions

• Overall Dimensions
• 167.4 mm x 76.0mm x 12.6mm (6.6 in x 3.0 in x 0.5 in)

Scanning Specifications

• Decode Capability
• Honeywell FlexRange™ FR S0803
• Standard Range Engine S0703 (1D/2D barcode symbologies)

Network

• WWAN Specifications
• 4G-LTE DL CAT-18: ~800 Mbps
• 4G-LTE UL CAT-15: ~200 Mbps
• 5G FR1: Bands 1, 2, 3, 5, 7, 8, 12, 13, 14, 20, 25, 26, 28, 29, 30, 38, 40, 41, 48, 66, 71, 77, 78, 79
• 5G NSA-DL: ~2500 Mbps, UL: ~1050 Mbps
• 5G SA-DL: ~2300 Mbps, UL: ~1050 Mbps
• AT&T FirstNet Compliant
• Global bands support, device certified with GCF-PTCRB, ATT, TMO, VZW
• LTE: Bands 1, 2, 3, 4, 5, 7, 8, 12, 13, 14, 17, 18, 19, 20, 25, 26, 28, 29, 30, 38, 39, 40, 41, 42, 43, 48, 66, 71

• WLAN Specifications
• Data rates: 2.4GHz: 802.11b/g/ax – 20MHz up to 286.8Mbps; 5GHz: 802.1/n/ac/ax -20MHz, 40MHz, 80MHz, 160MHz up to 2882Mbps; 802.11ax- 20MHz, 40MHz, 80MHz, 160MHz up to 2882Mbps.
• IEEE 802.11 a/b/g/n/ac/d/h/i/r/k/v/w/mc/ax, 2x2 MU-MIMO; Triband (2.4GHz, 5GHz, 6GHz); Wi-Fi 6E (801.11ax); Dual Band Simultaneous (DBS); IPv4, IPv6
• Supported EAP: TLS, PEAP, TTLS, PWD, LEAP, CCX compatible.
• WLAN Security: Enhanced open (OWE), WEP, WPA/WPA2/WPA3 (Personal and Enterprise)
• Wi-Fi certified; Wi-Fi 6E certified.

• RFID Specifications
• Integrated NFC reader, compliant with ISO/IEC 1443A, ISO/IEC 1443 B, ISO/IEC 15693 (ICode), MIFARE 1K/4K, MIFARE DESFire, Sony FeliCa, ISO/IEC 18092 (Type F), Contactless payment support, ECP 1.0 and ECP 2.0.

• GPS Specifications
• GPS, GLONASS, Galileo, Beidou, QZSS, NavIC, Dual band GNSS-Concurrent L1/G1/E1/B1 with L5/E5a/BDSB2a, a-GPS, Supports XTRA

• Computer Wireless Communication
• 5G , WiFi 6E, BT5.3, NFC

• Bluetooth Specifications
• V5.3 Bluetooth and BLE; 2nd BLE

Software & Firmware

• Platform
• Mobility Edge

• Operating System Type
• Android

• Operating System
• Each Android version guaranteed from Android 14 to 18, subject to technical feasibility confirmed by Qualcomm

Memory & Data

• Memory
• 8GB DDR5 RAM, 128GB UFS 3.1 Flash

Hardware

• Scan Engine Type
• Laser aimer

• Scan Engine Range
• Standard Range and FlexRange

• Scan Engine Model
• Honeywell FlexRange™ FR S0803
• Honeywell S0703 Slim Imager

• Scan Distance
• Mid Range (0-5m)
• No Scanner
• Standard Range (0-1m)

• Processor
• Qualcomm QCS4490 or QCM4490 octa-core, up to 2.4GHz

• Keypad
• Full Touchscreen

• Display Size
• Gorilla Glass™ Victus™ , 6-inch

• Display Resolution
• Full High-Definition (2280 x 1080)

Electrical

• Battery Types
• Hot-swappable
• Replaceable

• Battery Type
• Li-ion

• Battery Capacity
• 3846mAh and 5550mAh

Environmental

• Storage Temperature Range
• -30° to 70°C (-22°F to 158°F)

• Operating Temperature
• -20°C to 50°C (-4°F to 122°F)

• Operating Humidity
• 5% to 95% (non-condensing)

Standards & Approvals

• Tumble Specifications
• 1,500, 0.5m (1.6 ft) tumbles
• 750, 1.0m (3.3 ft) tumbles with protective boot

• Protection Ratings
• IP68/IP65

• Drop Specifications
• Multiple 1.8m (6ft) drops to concrete at room temperature per MIL-STD-810H
• Multiple 2.1m (7ft) drops to concrete at room temperature with boot per MIL-STD-810H
