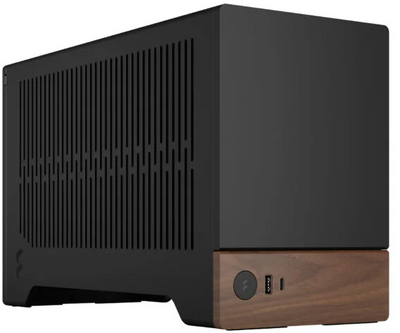

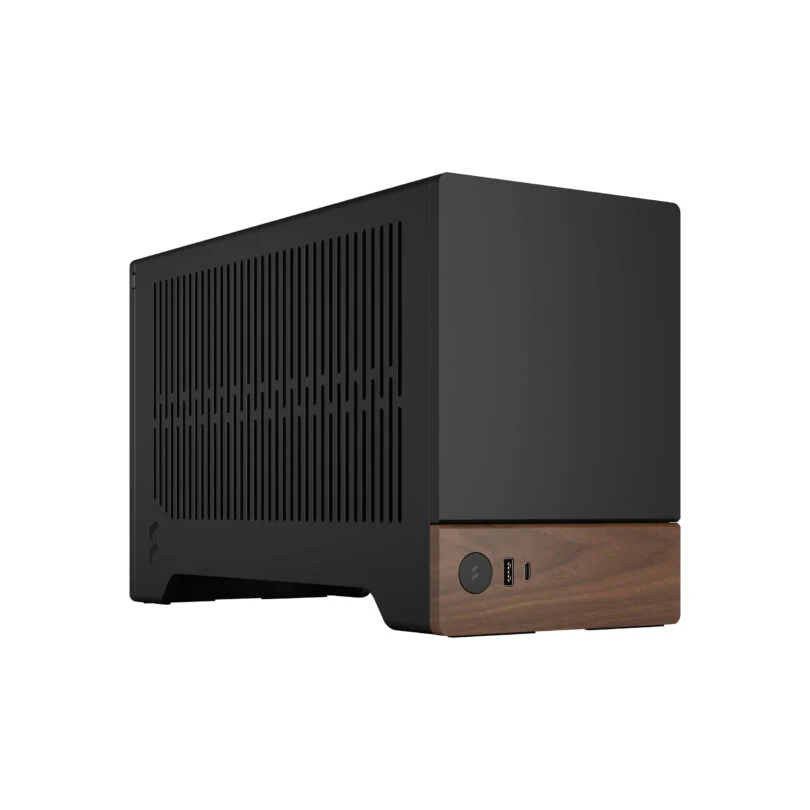

FRACTAL DESIGN - Terra - Graphite - FD-C-TER1N-01

Specifications

• Dedicated 2.5" drive mounts

  2 (included)

• Expansion slots

  3 (Max GPU Mode), 2 (Max CPU-Cooler height mode)

• Front interface

  1x USB 3.2 Gen 2x2 Type-C (20Gbps), 1x USB 3.0 Type-A (5Gbps), Power Button

• Total fan mounts

  1x 120 mm

• Bottom fan

  1x 120 mm

• Tool-less push-to-lock

  Both side panels and top panel (can also be locked with screws)

Compatibility

• Motherboard compatibility

  mITX

• Power supply type

  SFX-L/ SFX

• PSU max length

  130 mm

• Side radiator

  1x 120mm (121 mm wide if max 200 mm GPU and no SSDs)

• GPU max length

  322 mm

• GPU max width (if GPU height is lower than 131 mm)

  72 mm (Configured for Max GPU) / 43 mm (Configured for Max CPU-Cooler)

• GPU max width (if GPU height 131-145mm)

  62 mm (Configured for Max GPU) / 33 mm (Configured for Max CPU-Cooler)

• GPU max height

  145 mm (Configured for Max GPU) / 131 mm (Configured for Max CPU-Cooler)

• *CPU cooler max height

  48 mm (Configured for Max GPU) / 77 mm (Configured for Max CPU-Cooler)

• *Additional comment

  Motherboard Spine is adjustable, which affects the min/ max GPU width and CPU cooler height. If GPU width is increased, CPU cooler height will decrease and vice versa. The max width of the GPU is also dependent on the height. There are two different scenarios (H<131mm, H>131-145mm). See manual for detailed info.

• *Note

  If you wish to use the Terra PCIe 4.0 riser cable together with a PCIe 5.0 compatible motherboard and graphics card, make sure you first set the PCIe Slot Configuration in your motherboard BIOS or UEFI to PCIe Gen4 for best system stability.

Dimensions

• Case dimensions (LxWxH)

  343 x 153 x 218 mm

• Case dimensions w/o feet/protrusions/screws

  343 x 153 x 198 mm

• Package dimensions (LxWxH)

  394 x 215 x 292 mm

• Net weight

  3.1 kg

• Gross weight

  4.0 kg

• Volume

  10.4 liter (excluding feet), 11.4 liter (external dimensions)
