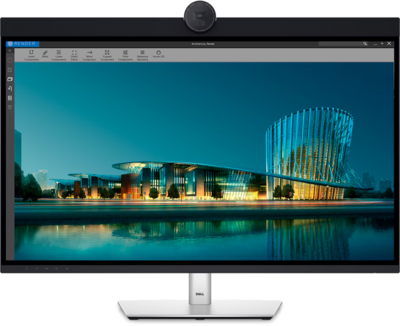

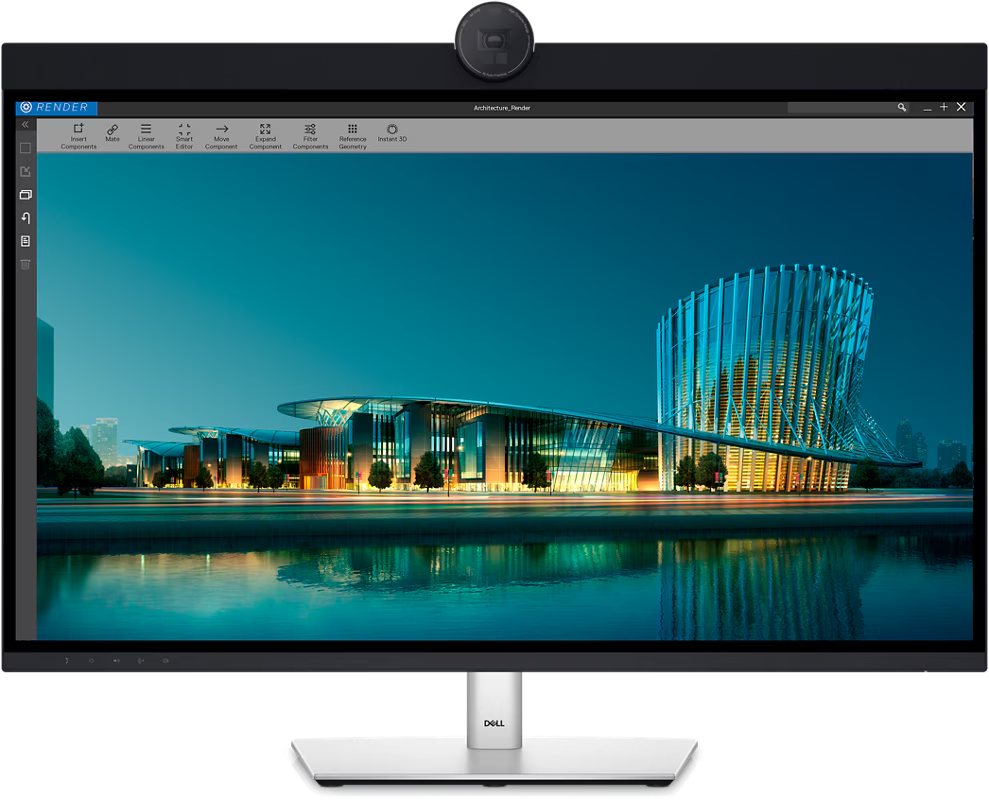

Dell - UltraSharp 32 U3224KBA - 210-BHNX

Tech Specs

Connectivity

Interfaces

• HDMI (up to 6144x3456@60Hz / HDCP 2.2)
• Mini DisplayPort 2.1 (up to 6144x3456@60Hz / HDCP 2.2)
• USB-C (power up to 140W EPR)
• 4 x USB 3.2 Gen 2
• RJ45 Ethernet port, 2.5GbE
• USB 3.2 Gen 2 downstream with Battery Charging 1.2
• 2 x USB-C 3.2 Gen 2 downstream (power up to 15W)
• Thunderbolt 4/USB-C 3.2 Gen 2 upstream/DisplayPort 1.4 (Up to 140W EPR)
• Thunderbolt 4 downstream (for daisy chain, power up to 15W)

General

Display Type

LED-backlit LCD monitor / TFT active matrix

Energy Class

Class G

Diagonal Size

32"

Viewable Size

31.5"

Built-in Devices

Microphone array, KVM ports, USB 3.2 Gen 2/USB-C hub, webcam

Panel Type

IPS Black

Aspect Ratio

16:9

Native Resolution

6K 6144 x 3456 at 60 Hz

Pixel Pitch

0.1134 mm

Pixel Per Inch

223

Brightness

450 cd/m²

Contrast Ratio

2000:1 / 2000:1 (dynamic)

HDR Format

HDR600

Colour Support

1.07 billion colours

Colour Gamut

99% DCI-P3, 100% Rec 709, 100% sRGB

Response Time

5 ms (grey-to-grey fast), 8 ms (grey-to-grey normal)

Horizontal Viewing Angle

178^°

Vertical Viewing Angle

178^°

Screen Coating

Anti-glare, 3H Hard Coating

Backlight Technology

LED backlight

Features

Daisy chain compatible, Mercury free, arsenic-free glass, Dell Easy Arrange, Wide Viewing Angle

Dimensions (WxDxH)

71.742 cm x 23.7 cm x 52.263 cm - with stand (lowest position)

Weight

13.3 kg

USB Power Delivery

Up to 140 Watt EPR

Built-in Webcam

Sensor Resolution

8 Megapixel

Max Video Resolution

3840 x 2160 at 30 fps

Digital Zoom

5

Features

78° field of view, 90° field of view, 65° field of view, Windows Hello compatible, up to 5 m focus distance

Audio Input

Type

2 array microphones

Audio

Type

Speakers - stereo

Output Power / Channel

14 Watt

Mechanical

Display Position Adjustments

Height, pivot (rotation), swivel, tilt

Tilt Angle

-5^°/+21^°

Swivel Angle

-30^°/+30^°

Rotation Angle

-90^°/+90^°

Height Adjustment

160 mm

VESA Mounting Interface

100 x 100 mm

Miscellaneous

Features

Security lock slot (cable lock sold separately), ESS Technology, VESA interface support

Cables Included

• 1 x Thunderbolt 4 / USB-C cable - 1.5 m
• 1 x Mini DisplayPort cable - miniDisplayPort to miniDisplayPort - 1 m
• 1 x USB 3.2 Gen 2 cable - USB Type A to C - 1 m

Compliant Standards

RoHS, NFPA 99, BFR-free, PVC-free

Security Slot Type

Kensington security slot

Power

Input Voltage

AC 100-240 V (50/60 Hz)

Power Consumption (On mode)

56.73 W

Power Consumption (Typical)

420 Watt

Power Consumption Stand by

0.26 Watt

Power Consumption (Off Mode)

0.25 Watt

On / Off Switch

Yes

Software / System Requirements

Included Software

Dell Display Manager

Dimensions & Weight

Dimensions & Weight Details

• With stand (lowest position) - width: 71.742 cm - depth: 23.7 cm - height: 52.263 cm - weight: 13.3 kg
• With stand (highest position) - width: 71.742 cm - depth: 23.7 cm - height: 68.263 cm - weight: 13.3 kg
• Without stand - width: 71.742 cm - depth: 6.629 cm - height: 48.664 cm - weight: 8.61 kg

Dimensions & Weight (Shipping)

Shipping Weight

17.7 kg

Manufacturer Warranty

Service & Support

- 3 years - response time: next business day

Bundled Services

3-Year Advanced Exchange Service and Premium Panel Exchange
