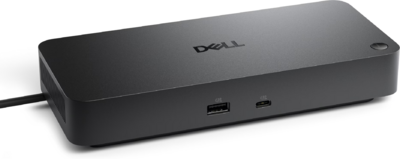

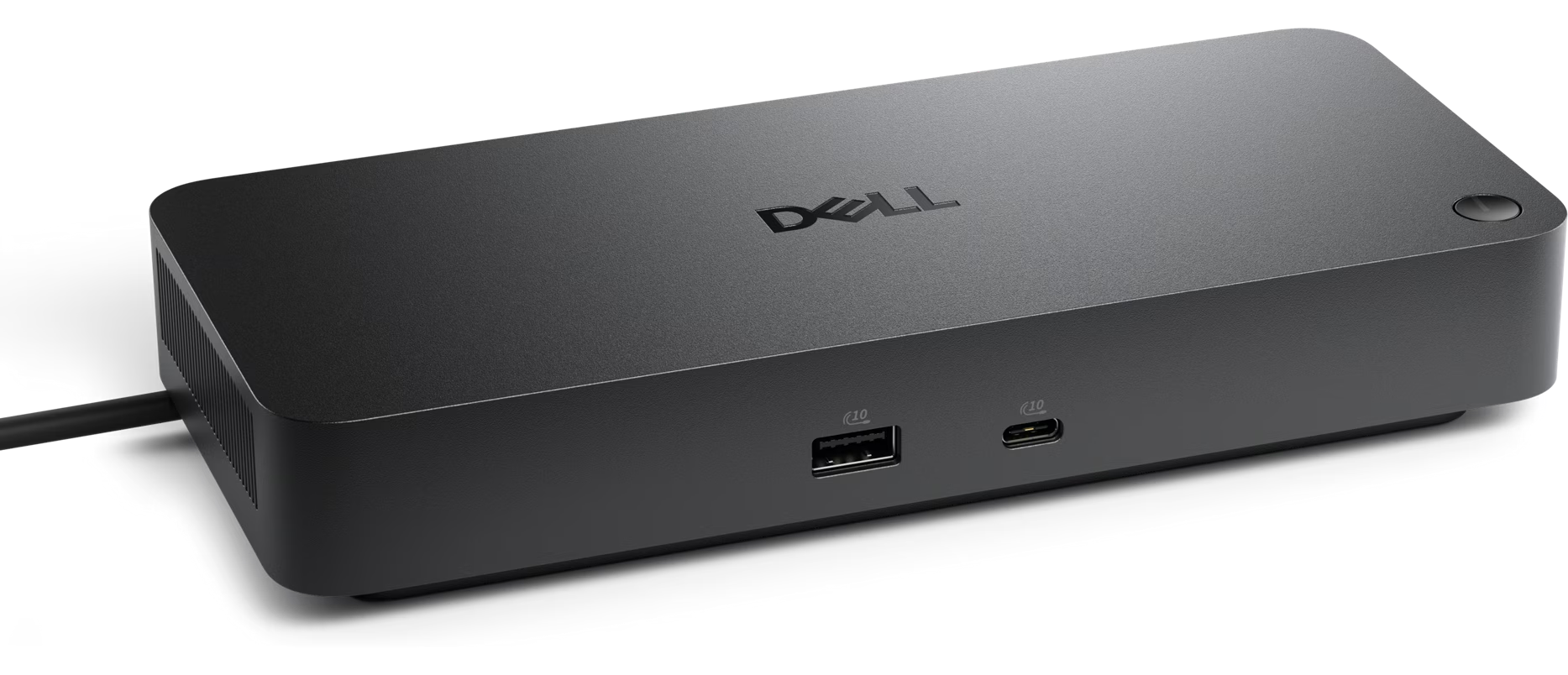

Dell - Pro Thunderbolt 5 Dock - WD25TB5 - 210-BTHZ

Tech Specs

Technical Information

Connectivity Technology

Wired

Device Supported

• Notebook
• Desktop PC

Cable Length

83 cm

Features

• Power Delivery Pass-through
• LED Power Indicator
• Indicator Light

Management Features

• Intel AMT over Thunderbolt with select Intel vPro PCs
• MAC Address Pass-through
• PXE Boot
• Dock Power Button Sync
• Wake-on-LAN
• WLAN to LAN Switch
• Kernel Direct Memory Access (DMA) Protection
• Dell Command Update (DCU)
• Port Disablement
• Host PC based firmware update
• Firmware update on disconnect

Number of Displays Supported

4

Screen Mode Supported

• QHD @ 60Hz
• WQHD @ 60Hz
• 4K @ 60Hz
• 5K @ 60Hz
• 6K @ 60Hz
• 8K @ 60Hz
• 4K @ 120Hz

Supported Resolutions

• 3840 x 2160
• 5120 x 2160
• 2560 x 1440
• 3440 x 1440
• 7680 x 4320
• 6144 x 3456

Maximum Data Transfer Rate

1.25 GB/s

Security Slot Type

• Kensington Security Slot
• Noble Wedge Security Slot

Power Delivery Details

• 4 x USB-A 3.2 Gen 2 (4.5W each)
• 1 x USB-C 3.2 Gen 2 (15W)
• 1 x USB-C Multi-function DisplayPort (7.5W)
• 2 x Thunderbolt 5 (15W each)
• All deliver power with or without PC

Power Delivery

• 300W (Dell Systems)
• 240W (non-Dell Systems)

Video Resolution Details

• QHD - 60 Hz (Quad Display)
• WQHD - 60 Hz (Triple Display)
• 4K - 60 Hz (Dual Display)
• 5K - 60 Hz (Single Display)
• 4K - 60 Hz (Quad Display)
• 4K - 60 Hz (Triple Display)
• 6K - 60 Hz (Dual Display)
• 8K - 60 Hz (Single Display)
• 4K - 120 Hz (Quad Display)
• 4K - 120 Hz (Triple Display)

Network & Communication

Ethernet Technology

2.5 Gigabit Ethernet

Interfaces/Ports

Host Interface

Thunderbolt 5

Total Number of USB Ports

6

USB Type-A

Yes

Number of USB 3.2 Gen 2 Type-A Ports

4

Number of USB 3.2 Gen 2 Type-C Ports

1

Number of USB Type-A Ports

4

USB Type-C

Yes

USB Type-C Detail

1 x USB-C 3.2 Gen 2 (10 Gbps), (15W), 1 x USB-C Multi-function DisplayPort (7.5W)

Number of USB Type-C Ports

2

Network (RJ-45)

Yes

DisplayPort

Yes

Number of DisplayPorts

2

DisplayPort Version

2.1

HDMI

Yes

Number of HDMI Ports

1

HDMI Version

2.1

Thunderbolt

Yes

Thunderbolt Ports Quantity

2

Interfaces

• 2 x DP2.1
• 1 x HDMI 2.1
• 1 x USB-C 3.2 Gen 2 Multi-function DisplayPort 2.1
• 2 x Thunderbolt 5

Software

Host Software

Host Software (Windows):

• Dell Firmware Utility
• Dell Display and Peripheral Manager
• Dell Command Update

Cloud Management (via host PC software)
Dell Device Management Console enables:

• Automatic firmware updates
• Maintain specific firmware version or downgrade
• Peripheral inventory and status

Operating System Supported

• Windows 10
• Windows 11
• Ubuntu 24.04
• Red Hat Enterprise Linux 9.7
• ChromeOS 141
• macOS

Power Description

Maximum Power Supply Wattage

330 W

Power Source Type

Power Adapter

Physical Characteristics

Height

205 mm

Width

90 mm

Depth

35.3 mm

Weight (Approximate)

620 g

Miscellaneous

Package Contents

• Pro Dock WD25TB5 Docking Station
• Power Adapter
• Power Cord
• Documentation (Quick Start Guide, Safety, Environmental, and Regulatory Information)

Kensington Security Slot

Yes
