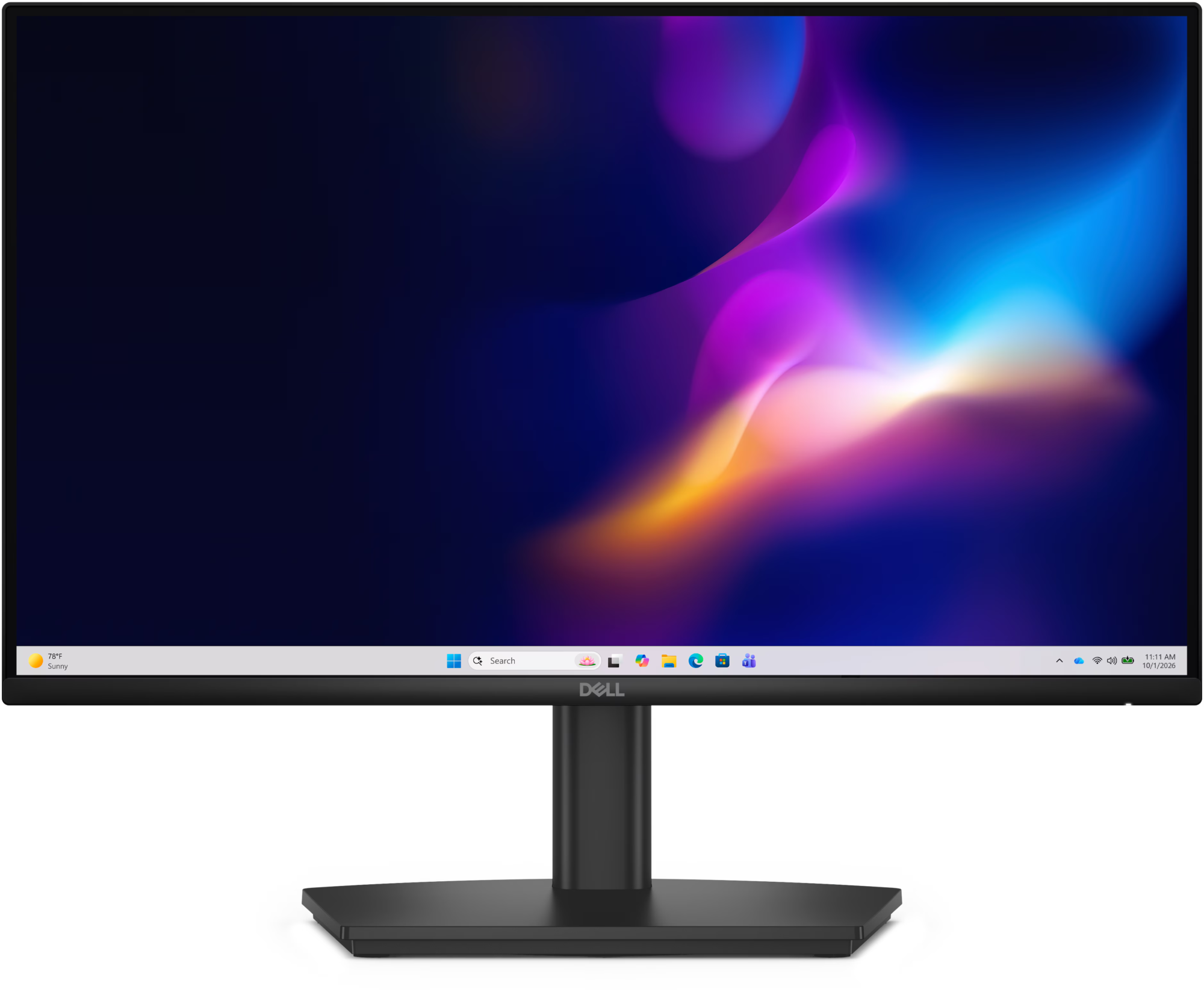

Dell - Pro 22 E2226HS - 210-BWPH

Tech Specs

General Information

Manufacturer

Dell Technologies

Manufacturer Part Number

285DT

Brand Name

Dell

Product Line

Pro

Product Model

E2226HS

Product Name

Pro 22 Adjustable Stand Monitor - E2226HS

Product Type

LCD Monitor

Technical Information

Number of Screens

1

Screen Size Class

22"

Viewable Screen Size

54.6 cm (21.5")

Screen Mode

Full HD

Display Screen Type

Flat Panel

Panel Technology

In-plane Switching (IPS) Technology

Response Time Details

• 5 ms GTG (Fast)
• 8 ms GTG

Aspect Ratio

16:9

Pixel Pitch

0.24795 mm x 0.24795 mm

Horizontal Viewing Angle

178^°

Vertical Viewing Angle

178^°

Mount Type

Panel Mount

HDCP Supported

Yes

Maximum Adjustable Height

130 mm

Tilt Angle

-5^° to 21^°

Swivel Angle

-173^° to 173^°

Pivot Angle

+/-90^°

Features

• Anti-glare
• Arsenic-free Glass
• BFR Free
• Cable Lock Slot
• Eye Comfort Technology
• Low Blue Light
• Mercury-free
• PVC Free
• Security Lock

Adjustable Stand

Yes

Stand Adjustments

• Height
• Pivot
• Slant
• Swivel
• Tilt

Stand Included

Yes

Stand Type

Adjustable

Pivot

Yes

Curved Screen

No

Glass Hardness

3H

Surface Treatment

Anti-glare

Flicker Free

Yes

Video

Maximum Resolution

1920 x 1080

Standard Refresh Rate

100 Hz

Colour Supported

16.7 Million Colours

Colour Depth

8-bit (6-bit + FRC)

Native Contrast Ratio

1,000:1

Brightness

300 cd/m²

Colour Gamut

72% NTSC (CIE 1931)

Calibration Accuracy

No

Maximum Preset Resolution

1920 x 1080 at 100Hz

Pixel Per Inch (PPI)

102

Resolution Type

Standard

Audio

Number of Speakers

2

Speakers

Yes

Speaker Output Power

2 x 2 W

Interfaces/Ports

Network (RJ-45)

No

HDMI

Yes

HDMI Version

1.4

USB

No

VGA

Yes

DisplayPort™

Yes

Thunderbolt™

No

USB Type-C®

No

Number of HDMI Inputs

1

Total Number of HDMI Ports

1

Number of DisplayPorts

1

Number of VGA Ports

1

Number of DisplayPort 1.4 (HDCP 1.4)

1

Audio Line In

No

DVI-D

No

Audio Line Out

No

DisplayPort Input

Yes

DisplayPort Output

No

Number of HDMI 1.4 (HDCP 1.4)

1

USB Type-B

No

DisplayPort HDCP Version

HDCP 1.4

HDMI HDCP Version

HDCP 1.4

RS-232 (Rear)

No

Thunderbolt Downstream (Rear)

No

USB Type-A (Front)

No

USB Type-A (Rear)

No

USB Type-C (Front)

No

USB Type-C (Power Delivery) Upstream Supported (Rear)

No

USB Type-C (Without Power Delivery) Upstream Supported (Rear)

No

Interface/Port Details

• 1 HDMI port (HDCP 1.4) (Supports up to 1920 x 1080, 100 Hz as specified in HDMI 1.4)
• 1 DisplayPort 1.4 (HDCP 1.4) port
• 1 VGA port

Built-in Devices

Webcam

No

Microphone

No

Environmental Conditions

Non-operating Temperature Range

-20^°C to 60^°C

Non-operating Humidity Range

5% to 90% (Non-condensing)

Maximum Operating Altitude

5 km

Maximum Non-operating Altitude

12.19 km

Operating Temperature Range

0^°C40^°C

Operating Humidity Range

10%80%

Power Description

Input Voltage Range

100V AC to 240V AC

Operating Power Consumption

10.40 W

Standby Power Consumption

300 mW

Off-Mode Power Consumption

300 mW

Energy Efficiency Class

C

Frequency

• 50 Hz
• 60 Hz

Maximum Power Consumption

28.50 W

Voltage Current

700 mA

Input Voltage Range/Current Details

100 VAC to 240 VAC/50 Hz or 60 Hz ± 3 Hz/0.7 A

Physical Characteristics

VESA Mount Compatible

Yes

VESA Mount Standard

100 x 100

Colour Family

Black

Product Colour

Black

Height

286.09 mm

Width

488.06 mm

Depth

55.85 mm

Height with Stand

471.53 mm

Width with Stand

488.06 mm

Depth with Stand

211.60 mm

Compressed Height with Stand

341.53 mm

Extended Height with Stand

471.53 mm

Bezel Width (Top)

6 mm

Bezel Width (Bottom)

12.30 mm

Bezel Width (Left)

6 mm

Bezel Width (Right)

6 mm

Weight (Approximate)

2.19 kg

Stand Height

400.04 mm

Stand Width

257.02 mm

Stand Depth

211.60 mm

Weight with Stand & Cables (Approximate)

3.92 kg

Miscellaneous

Package Contents

• Pro 22 Adjustable Stand Monitor - E2226HS
• Stand
• 1 x Power Cable: 1.80 m
• 1 x DisplayPort to DisplayPort cable (1.80 m) for selected countries only
• 1 x HDMI cable (1.80 m) for selected countries only
• QR card
• Safety, Environmental, and Regulatory Information

Certifications & Standards

• California CEC
• BFR/PVC reduce monitor (Circuit boards are made from BFR/PVC-free laminates)
• Arsenic-Free glass and Mercury-Free for the panel only
• Meets NFPA 99 leakage current requirements.
• Product Safety, EMC, and

Platform Supported

• Linux
• Mac
• Windows

Energy Star®

Yes

TAA Compliant

Yes

TCO Certified

Yes

Eye Comfort Certification

Yes

Eye Comfort Rating

3 Star

Dell Display and Peripheral Manager Compatibility

Yes

Remote Asset Management

Dell Display and Peripheral Manager (DDPM)

Cable Type Included

• Power Cable: 1.80 m
• 1 x HDMI cable (1.8 m) for EMEA and APJC

Environmentally Friendly

Yes

Environmental Certification

• China Environmental United Certification Center (CEC)
• Electronic Product Environmental Assessment Tool Climate+ (EPEAT Climate+)
• Electronic Product Environmental Assessment Tool Gold (EPEAT Gold)
• TCO Certified 10.0
• TCO Certified Edge

Energy Efficiency Certification

• China Energy Conservation Program (CECP)
• ENERGY STAR 8.0

Energy Efficiency Compliance

• Energy-related Products Directive (ErP)
• Energy-related Products Directive Lot 5 (ErP Lot 5)
• Korea E-Standby
• Minimum Energy Performance Standards (MEPS)

Environmental Compliance

• China Restriction of Hazardous Substances (China RoHS)
• Eurasian Economic Union Restriction of Hazardous Substances (EAEU RoHS)
• Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
• Restriction of Hazardous Substances (RoHS)
• Waste Electrical and Electronic Equipment Directive (WEEE)
