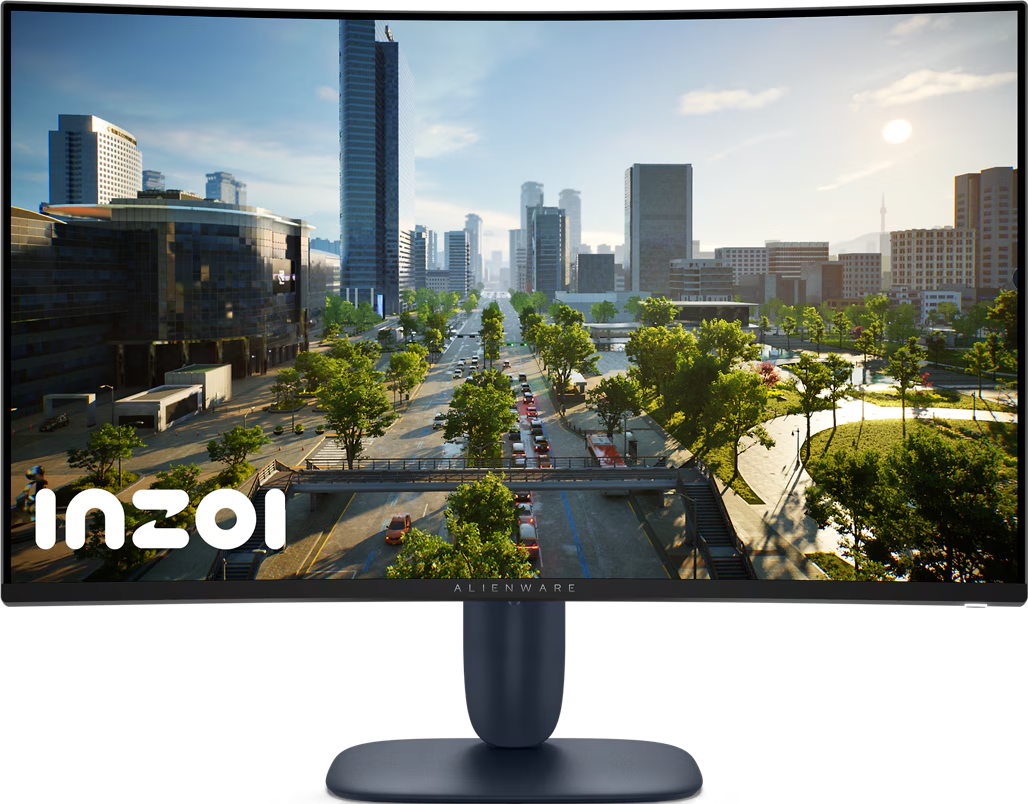

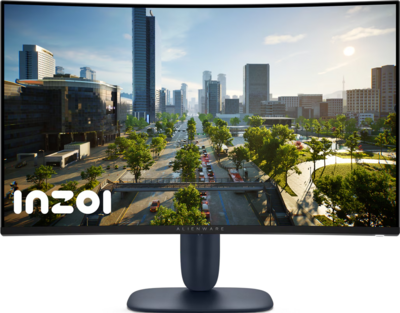

DELL - Alienware AW3225DM - 210-BQWN

Tech Specs

Technical Information

Number of Screens

1

Screen Size Class

32"

Viewable Screen Size

80 cm (31.5")

Screen Mode

WQHD

Panel Technology

Vertical Alignment (VA)

Response Time

1 ms

Response Time Details

• 1ms GTG (Extreme Mode)
• 4ms GTG (Fast)
• 2ms GTG (Super Fast)

Aspect Ratio

16:9

Pixel Pitch

0.2724 mm x 0.2724 mm

Horizontal Viewing Angle

178^°

Vertical Viewing Angle

178^°

Mount Type

Panel Mount

Backlight Technology

LED Edgelight System

HDCP Supported

Yes

Maximum Adjustable Height

110 mm

Tilt Angle

-5^° to 21^°

Features

• VESA DisplayHDR 400
• Low Blue Light
• Narrow Bezel
• ComfortView Plus
• Anti-glare
• Mercury-free
• Picture in Picture
• Picture by Picture
• Security Lock
• Cable Lock Slot
• Arsenic-free Glass

Horizontal Frequency

• 30 kHz to 285 kHz - DisplayPort 1.4
• 30 kHz to 230 kHz - HDMI 2.1

Vertical Frequency

• 48 Hz to 180 Hz - DisplayPort 1.4
• 48 Hz to 144 Hz - HDMI 2.1

Adjustable Stand

Yes

Stand Adjustments

• Height
• Tilt

Stand Included

Yes

Glass Hardness

3H

Video

Maximum Resolution

2560 x 1440

Standard Refresh Rate

180 Hz

Colour Supported

1.07 Billion Colors

Native Contrast Ratio

3,000:1

Brightness

400 cd/m²

Tearing Prevention Technology

• AMD FreeSync^TM
• VESA AdaptiveSync

Colour Gamut

95% DCI-P3 (CIE 1976)

Maximum Preset Resolution

2560 x 1440 at 180Hz

Pixel Per Inch (PPI)

93

Interfaces/Ports

Connectivity

• 2 HDMI ports (HDCP 1.4 & 2.3) (Supports up to QHD 2560 x 1440, 144 Hz, 10 bit, TMDS, HDR, VRR as per specified in HDMI 2.1)
• 1 DisplayPort 1.4 (HDCP 1.4 & 2.3) (Supports up to 2560 x 1440, 180 Hz, HDR, VRR)

• 1 USB 5Gbps Type-A downstream port with Battery Charging 1.2
• 1 USB 5Gbps Type-A downstream port
• 1 USB 5Gbps Type-B upstream port

Built-in Devices

Built-in Devices

NA

Environmental Conditions

Operating Temperature Range

0^°C to 40^°C

Non-operating Temperature Range

-20^°C to 60^°C

Operating Humidity Range

10% to 80% (Non-condensing)

Non-operating Humidity Range

5% to 90% (Non-condensing)

Maximum Operating Altitude

5 km

Maximum Non-operating Altitude

12.19 km

Power Description

Input Voltage Range

100V AC to 240V AC

Operating Power Consumption

33 W

Standby Power Consumption

0.3 W

Off-Mode Power Consumption

0.3 W

Energy Efficiency Class

G

Frequency

• 60 Hz
• 50 Hz

Maximum Power Consumption

90 W

Voltage Current

1.5 A

Physical Characteristics

VESA Mount Compatible

Yes

VESA Mount Standard

100 x 100

Height

418.7 mm

Width

707.4 mm

Depth

121.7 mm

Height with Stand

583.33 mm

Width with Stand

707.42 mm

Depth with Stand

232 mm

Compressed Height with Stand

473.75 mm

Extended Height with Stand

583.33 mm

Bezel Width (Top)

8.20 mm

Bezel Width (Bottom)

18.21 mm

Bezel Width (Left)

8.47 mm

Bezel Width (Right)

8.47 mm

Weight (Approximate)

6.58 kg

Weight with Stand (Approximate)

9.63 kg

Miscellaneous

Application/Usage

Gaming

Environmental Compliance

Restriction of Hazardous Substances (RoHS)

Package Contents

• Alienware 32 Gaming Monitor - AW3225DM
• Stand
• QR card
• Alienware Sticker
• Safety, Environmental, and Regulatory Information

Cables Included

• Power cable
• 1 x DisplayPort-DisplayPort cable - 1.80 m
• 1 x HDMI cable - 1.80 m
• 1 x USB Type-A to Type-B 5Gbps cable - 1.80 m
