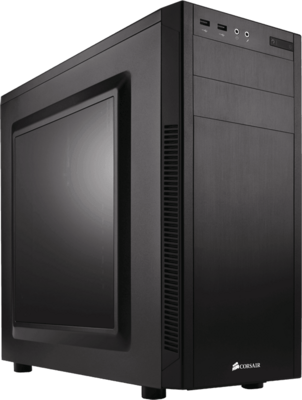

Corsair - Carbide Series 100R - CC-9011075-WW

Elegant and modern on the outside, with all the features a serious PC builder needs on the inside.

The Carbide Series 100R Mid Tower case has the versatility serious PC builders need with the clean, modern exterior design all users can agree with. Tool-free access to the interior, a flush-mounted window for admiring your components, and a range of cooling options are all available to the home builder at a spectacular value with this latest addition to the Corsair family.

Simple, elegant, and sharp.

It’s the performance PC platform in stealth mode. With a mesh-free front panel, flush-mounted side panel window and clean lines, the 100R is both professional enough for the office and customizable enough for any home PC build.

Package contents

• Carbide Series 100R Mid-Tower Case
• Accessory kit
• Warranty and Support Information

Compatibility

• ATX, MicroATX and Mini-ATX motherboards

Technical specifications

• USB 3.0 Compatible: Dual USB 3.0 front panel ports offer the best in connectivity
• SSD Support: All four hard drive trays provide solid-state drive support
• Direct Airflow to Top GPU: Direct airflow gives your GPU added cooling for intense gaming sessions
• Up To Five Fan Mounts Plus One Included 120mm Fan: A 120mm fan gets your cooling off the ground, and extra mounts provide added expandability

• Tool-free 3.5” and 5.25” Drive Installation: Builds are made easier with tool-free drive installation
• Thumbscrew Side Panels: No tools are needed to easily access the inside of your case
• Flush-Mounted Side Panel Window: The side panel window showcases the powerful components inside
• Cable Routing Channels and Holes: Builds are further simplified and aesthetics improved with easy cable organization
• Modern Internal Layout: The modernized interior makes building your dream PC easier while improving overall performance

Warranty

Two years

Weight

4.8kg

Case Form Factor

Mid-Tower

Dimensions

471mm x 200mm x 430mm

Case Motherboard Support

Mini-ITX, MicroATX, ATX

Maximum GPU Length

Top Slots: 414mm
Lower Slots: 275mm

Maximum CPU Cooler Height

150mm

Maximum PSU Length

260mm

Case Expansion Slots

7

Case Drive Bays

(x2) 5.25in
(x4) Combo 3.5in/2.5in

Case Material

Steel

Case Power Supply

ATX (not included)

External Connections

(x2) USB 3.0
(x1) Headphone Port
(x1) Microphone Port

Fan Mount Locations

Front: (x2) 120/140mm
Top: (x2) 120mm
Rear: (x1) 120mm

Fans Included

Rear: (x1) 120mm

Compatible Corsair Liquid Coolers

H55, H60, H75, H80i
