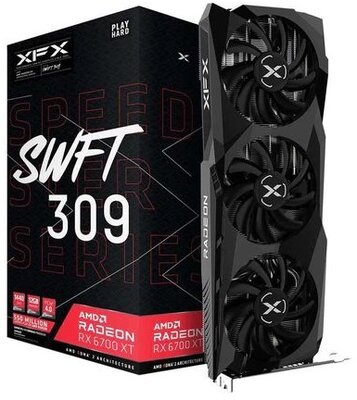

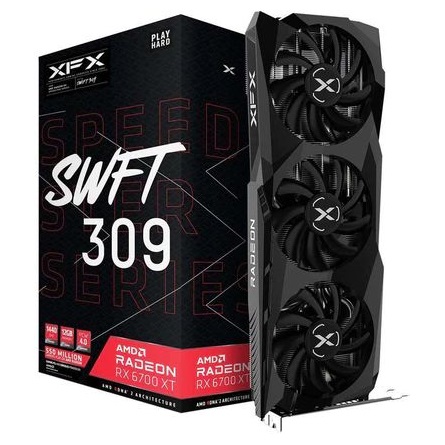

XFX RX6700XT - SPEEDSTER SWFT 309 - RX-67XTYJFDV

Manufacturer: XFX
Model Number:RX-67XTYJFDV
Product Name: AMD Radeon™ RX 6700 XT
Product Description:  XFX SPEEDSTER SWFT 309 AMD Radeon™ RX 6700 XT CORE Gaming Graphics Card with 12GB GDDR6 HDMI 3xDP, AMD RDNA™ 2
Short Description : XFX SPEEDSTER SWFT 309 AMD Radeon™ RX 6700 XT CORE Gaming Graphics Card with 12GB GDDR6, AMD RDNA™ 2
Launch Date: March, 2021
UPC Number: 778656080966

Specifications

‍Bus Type: PCI-E 4.0

‍
Clock Speeds:
Base clock Up to: 2321MHz
Game Clock Up To: 2424MHz*
Boost clock Up to: 2581MHz**

Stream Processors:  2560
Memory Bus: 192bit
Memory Clock: 16 Gbps
Memory Size: 12 GB
Memory Type: GDDR6
Card Profile:  Dual Slot
Thermal Solution: DD Fan

*"Game Clock" is the expected GPU clock when running in typical gaming applications, set to typical TGP (Total Graphics Power). Actual individual game clock results may vary.

**"Boost Clock" is the maximum frequency achievable on the GPU running a bursty workload. Boost clock achievability, frequency, and sustainability will vary based on several factors, including but not limited to: thermal conditions and variation in applications and workloads.

Outputs

‍DisplayPort: 1.4 with DSC
HDMI™: 2.1 VRR and FRL
Output : Display Port 3
Output: HDMI 1

‍

Requirements

‍External Power: 2x PCI-E 8pin
Minimum Power Supply Requirement: 650 watt
XFX Recommended Power Supply: XFX 750W PSU

‍

Certifications

RoHS

Package Contents

Quick Installation Guide: 1

Estimated Dimensions & Weights

‍Card Dimension (cm) 30.4 x 12.3 x 4.2
Card Dimension (inch) 11.97 x 4.84 x 1.65
Master Carton Dimensions (cm) 57 x 40.5 x 43
Master Carton Dimensions (inch) 22.44 x 15.94 x 16.93
Master Carton Weight (Kg) 15.08 est
Master Carton Weight (lb) 33.25 est.
Package Dimensions (cm) 39.7 x 19.1 x 11
Package Dimensions (inch) 15.63 x 7.52 x4.33
Package Weight (Kg) 1.32 est.
Package Weight (lb) 2.91 est.
Units/Carton 10

Technologies

AMD RDNA™ 2 Architecture
DirectX® 12 Ultimate
Hardware Raytracing
FidelityFX
Radeon Anti-Lag
Microsoft® Windows® 10 Support
Microsoft® DirectX™ 12 Support
7nm Technology
GDDR6 Memory
PCI® Express 4.0 Support
AMD FreeSync™ Technology*
DisplayPort™ 1.4 with DSC
HDMI™ 2.1 VRR
Video Streaming up to 8K
AMD FidelityFX*
Radeon™ Image Sharpening*
Radeon™ Anti-Lag*
Radeon™ Software
Game Driver Optimizations
OpenGL Support
OpenCL Support

‍

‍

* Not compatible with Windows 7. For more information on Radeon technologies, visit: AMD.com/gamingdetails

‍

Key Features

Advanced 7nm GPU
PCI Express 4.0 Support
Radeon Image Sharpening
FidelityFX
Radeon Anti-Lag
Microsoft® Windows® 10 Support
Microsoft® DirectX™ 12 Support
7nm Technology
AMD Virtual Super Resolution (VSR)
AMD Relive
AMD FreeSync 2 HDR
AMD Frame Rate Target Control (FRTC)
AMD Eyefinity multi-display technology
AMD Radeon Adrenalin Software
AMD WattMan
Displayport 1.4 w/ DSC
Dolby TrueHD and DTS-HD Master Audio Support
OpenGL Support
OpenCL Support
