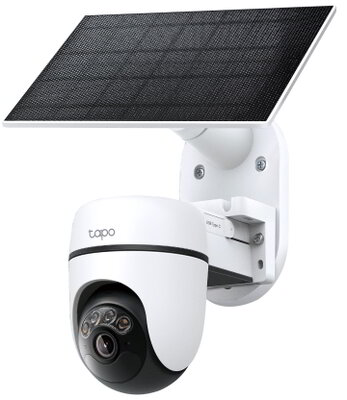

TP-LINK - Tapo C630 KIT

CAMERA

Image Sensor:

1/2.7" Progressive Scan CMOS Sensor

Lens:

Focal Length: 4.0 mm
Aperture: F1.6
Field of View: 105.4° (Diagonal), 88.0°(Horizontal), 46.0°(Vertical)

Night Vision:

Infrared Night Vision (52 ft / 16 m)
Color Night Vision (52 ft / 16 m)

Lighting:

2× Built-in Spotlights

Interface & Button:

1× Power Button
1× RESET Button
1× MicroSD Card Slot (Up to 512GB)

Pan/Tilt Range:

Pan Mechanical Range: 340° (360° Pan Coverage)
Tilt Mechanical Range: 90° (130° Tilt Coverage)

SOLAR PANEL

Connection Capacity:

A solar panel can only connect to one camera.

Output Port:

Type-C

VIDEO & AUDIO

Maximum Resolution:

3K 5MP (2880 × 1620 px)

Frame Rate:

15 fps

Digital Zoom:

13.5

Video Compression:

H.264

Live View:

YES

Image Enhancement:

3DNR
WDR

Audio Input & Output:

Built-in Microphone and Speaker

Audio Communication:

Two-Way Audio with Noise Cancellation

Siren Volume:

78.9 dBA (Level measured at 10 cm distance)

STORAGE

Local Storage:

MicroSD Card Slot on Camera (Up to 512 GB, microSD card not included)

Cloud Storage:

Tapo Care Cloud Storage Services (Subscription required)

DETECTION and NOTIFICATIONS

Sensor:

Motion Sensor
Ambient Light Sensors

AI Detection:

Motion Detection
Person Detection
Vehicle Detection
Pet Detection

Activity Zones:

Yes

Output Notification :

System Notification
System Notification with Snapshot (Tapo Care Services)

NETWORK

Network Connectivity:

Connect via Wi-Fi

Wireless Connectivity:

IEEE 802.11b/g/n, 2.4 GHz Wi-Fi

SECURITY

128-bit AES Encryption with SSL/TLS
WPA/WPA2-PSK

POWER

Power Source:

5V DC Power Adapter (Not Included)
6700 mAh Built-in Rechargeable Lithium-ion Battery
Solar Panel: Tapo A201

Input Voltage:

5.0 V, 2.0 A

Output Voltage:

/

GENERAL

Smart Integration:

Google Assistant, Amazon Alexa

Weather Resistance:

IP65 for both camera and solar panel

System Requirements :

Tapo App: iOS 12.0 or higher, Android 7.0 or higher

Mounting Options:

Wall-Mounted
Eave-Mounted
Pole-Mounted (Pole-Mounting loops required but not included)

Operating Temperature:

-20°C to 45°C (-4°F to 113°F)

Storage Temperature:

-40°C to 60°C (-40°F to 140°F)

Operating Humidity:

10%~90% RH, Non-condensing

Storage Humidity:

0%~90% RH, Non-condensing

Charging Temperature:

0°C to 45°C (32°F to 113°F)

Dimensions ( W x D x H ):

Camera Dimensions: 141 x 128 x 84 mm (5.55 x 5.04 x 3.31 in)
Solar Panel Dimensions: 173.4 x 120.4 x 15.7 mm (6.83 x 4.74 x 0.618 in)

Package Content:

Tapo C630 Camera × 1
Tapo A201 Solar Panel × 1
Tapo A201 Solar Panel Bracket × 1
Base Cover × 1
USB Adapter Cable × 1
Extension Wire × 1
Cable Zip Tie × 1
Mounting Screws and Anchors
Mounting Template Stickers
Quick Start Guide

Certifications:

CE, FCC, JRF, VCCI, RCM, NTRA, NCC, BSMI, DOE, CEC, IP65, RoHS
