Scythe - Ninja 4

Foglalat támogatás	Intel s775 Intel s1366 Intel s1156 Intel s1155 Intel s1150 Intel s1151 Intel s2011 Intel s2011-3 AMD AM2 AMD AM3 AMD FM1 AMD FM2
TDP (W) - Teljesítmény	150W
Ventilátor mérete	120mm
Csatlakozó	4pin (PWM) - szabályozható
Magasság	155mm
Extra tulajdonság	N/A
Max. ventilátor zaj	29,5dB
Max. ventilátor fordulat	1500 rpm
Hűtő tömege (teljes)	790gramm

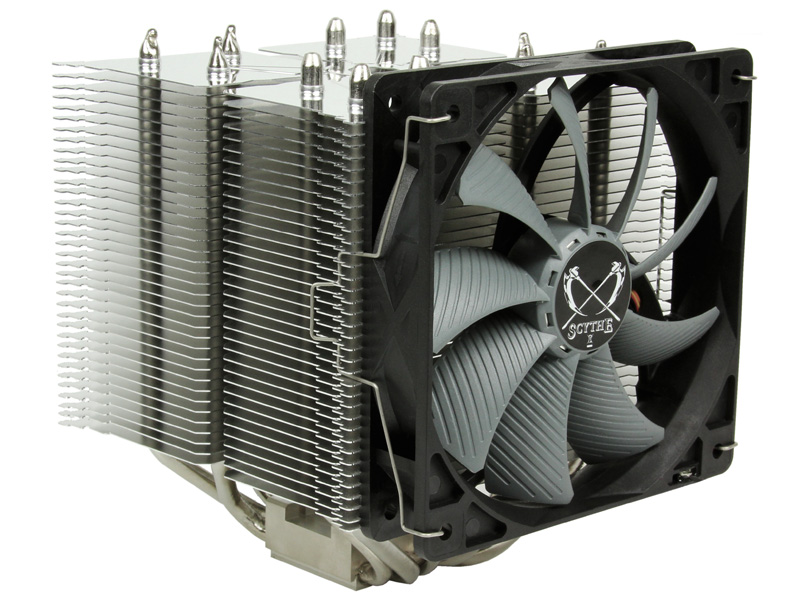

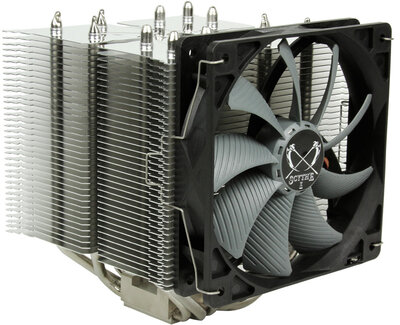

The Ninja 4 is the latest model in the Ninja CPU Cooler Series, developed for uncompromising performance. It features the new T-M.A.P.S technology, an optimized alignment of heatpipes, and the back-plate based Hyper Precision Mounting System (H.P.M.S) for firm mounting and easy installation procedure. These improvements and a special, adjustable Glide Stream 120mm PWM fan result in an increased cooling performance while reducing the weight compared to his predecessor. Also the design of the heat-sink allows fan mounting on all four sides. This enables the optimal integration of the Ninja 4 in the air flow of the pc-case and reduces turbulence and the emergence of hotspots.

Three-dimensional Multiple Airflow Pass-through Structure
By introducing our new T-M.A.P.S technology for the Ninja 4, we were able to increase the cooling capacity compared to previous models based on the older M.A.P.S lamellar structure. The clever arrangement of the cooling fins allows the usage of an additional pair of fins without suffering negative effects to weight or height of the heatsink and optimizes the cooling power in the lower speed range of the supplied fan.

Glide Stream 120 mm PWM Fan
The enclosed 120mm fan comes from the Glide- Stream PWM series. This new model offers the ability to adjust the maximum fan speed in 3 settings via a slide switch, allowing the user to choose between extremely silent operation or maximum cooling power.

Flexible Fan Mounting
Inspired by his predecessors, the Ninja 4 offers the option to install the fan on all four sides of the heatsink. This allows for very effective integration into air flow of the case. To further increase the performance, a second fan* can be installed by using the included additional pair of fan clips.

User-friendly Installation System
The proven HPMS (Hyper Precision Mounting System) mounting system is also to be found in Ninja 4 again . The mounting of the cooler is much easier. It requires fewer installation steps and time without compromising reliability.

Modelname:
Ninja 4 CPU Cooler

Modelnumber:
SCNJ-4000

Compatibility:
Intel®:
Socket LGA775
Socket LGA1150
Socket LGA1151
Socket LGA1155
Socket LGA1156
Socket LGA1366
Socket LGA2011 / 2011-v3 (Square ILM)

AMD®:
Socket AM2
Socket AM2+
Socket AM3
Socket AM3+
Socket FM1
Socket FM2
Socket FM2+

Please note that an original backplate with screw mounting is needed for installation on mainboards with AMD sockets. Please check before buying if the backplate is fixed by screws (example)! If the backplate uses plastic-pins, mounting of this cooler is not possible.

Overall dimensions:
130 x 153 x 155 (including fan - more dimensions)

Weight:
780 g / 900 g inklusive Lüfter

Heatpipenumbers / -diameter:
6 / 6mm

Accessories:
Installation material for Intel® and AMD® Socket, thermal grease,  second pair of fan clips, installation manual.

Base plate material:
nickel-plated copper (additional information)



Fan - Specifications

Modelname:
GlideStream 120 PWM

Model-Nr.:
SY1225HB1212H-PS (3 operations modes H/M/L)

Fan dimensions:
120 x 120 x 25 mm / 4.72 x 4.72 x 0.98 mm

Noise Level:
L: 4,0 ~ 12,5 dBA
M: 4,0 ~ 23,5 dBA
H: 4,0 ~ 29,5 dBA

Air Flow:
L:  21,97 ~   73,90 m³/h | 12.93 ~ 43.50 CFM
M: 21,97 ~ 112,96 m³/h | 12.93 ~ 63.73 CFM
H: 21,97 ~ 143,78 m³/h | 12.93 ~ 84.64 CFM

Fan Speed:
L:  300 upm (±300) ~ 800 upm (±10%
M: 300 upm (±300) ~ 1150 upm (±10%)
H: 300 upm (±300) ~ 1500 upm (±10%)

Voltage / Amperage:
DC 12V / 0,22A

Static Pressure:
L:  0,69 ~   4,90 Pa / 0,07 ~ 0.50 mmH²O
M: 0,69 ~ 10,40 Pa / 0,07 ~ 1.06 mmH²O
H: 0,69 ~ 17,55 Pa / 0,07 ~ 1.79 mmH²O

Bearing Type:
Sleeve Bearing
