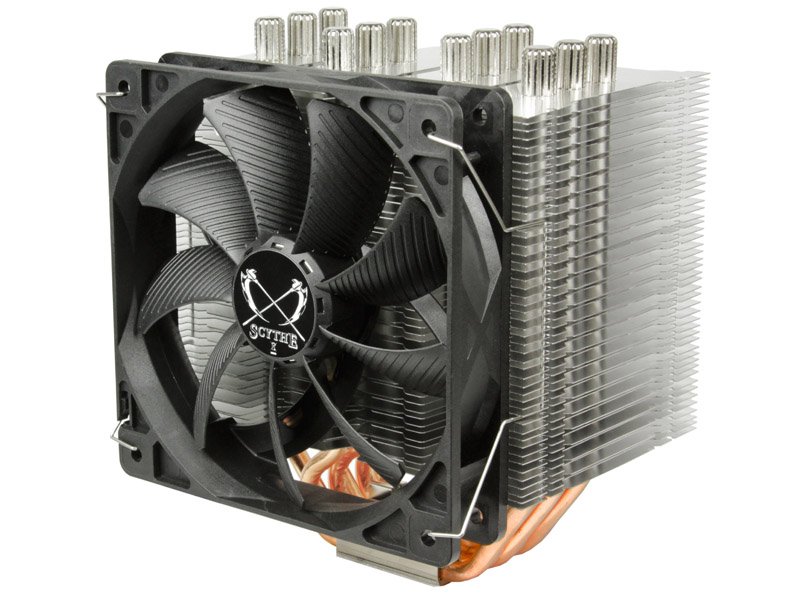

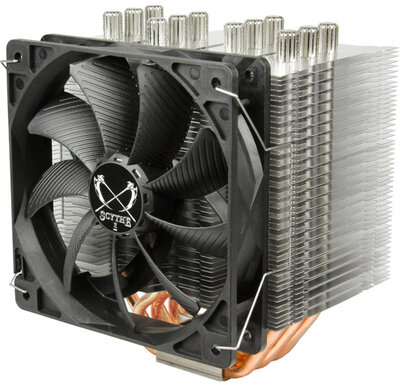

Scythe - Mugen 4

Foglalat támogatás	Intel s775 Intel s1366 Intel s1156 Intel s1155 Intel s1150 Intel s1151 Intel s2011 Intel s2011-3 AMD AM2 AMD AM3 AMD FM1 AMD FM2
TDP (W) - Teljesítmény	150W
Ventilátor mérete	120mm
Csatlakozó	4pin (PWM) - szabályozható
Magasság	157mm
Extra tulajdonság	N/A
Max. ventilátor zaj	28dB
Max. ventilátor fordulat	1400 rpm
Hűtő tömege (teljes)	620gramm

How to improve an almost perfect cooler? This question indeed caused some sleepless nights for the engineers at Scythe! Every little detail was looked at from every thinkable angle to find room for improvement. First, the "famous" Slip Stream fan had to give way to the new Glide Stream. Then, the already very efficient cooling fin design was modified to optimize the airflow even more. But what is perfect cooling without a convenient, user-friendly mounting system? This is where the Mugen 4 really differs from its' predecessor - a totally blue-penciled, new mounting system guarantees quick, but at the same time, stable mounting on all common sockets on the market today.

T-M.A.P.S. (Three-dimensional Multiple Airflow Pass- through Structure)
The Mugen 4's unique fin structure decreases air resistance and optimizes cooling performance in the lower rpm-range of the supplied fan. Furthermore, the smart arrangement of the fin layout made space for one more pair of fins without negatively affecting the total bulit height.



User-friendly Installation
The fundamental difference is to be found in the mounting system of the Mugen 4 - the new H.P.M.S (Hyper Precision Mounting System) makes easy mounting possible - requiring less work steps on the way.This briliant concept allows fitting the Mugen 4 without having to demount the motherboard.

Multi Fan Mount Structure
Following in its' predecessors footsteps, the Mugen 4's design also allows variable fan placement to optimize a targeted airflow.To furthermore enhance cooling performance, a second fan can be mounted with the supplied pair of fan clips.

Model Name:
Mugen 4 CPU Cooler

Model Number.:
SCMG-4000

Compatibility:
Intel®:
Socket LGA775
Socket LGA1150
Socket LGA1151
Socket LGA1155
Socket LGA1156
Socket LGA1366
Socket LGA2011 / 2011-v3 (Square ILM)

AMD®:
Socket AM2
Socket AM2+
Socket AM3
Socket AM3+
Socket FM1
Socket FM2
Socket FM2+

Please note that an original backplate with screw mounting is needed for installation on mainboards with AMD sockets. Please check before buying if the backplate is fixed by screws (example)! If the backplate uses plastic-pins, mounting of this cooler is not possible.

Overall Dimensions:
130 x 88 x 156,45 mm / 5.11 x 3.46 x 6.14   (more details)

Weight:
625 g / 22.04 (Heatsink only)

Accessory:
2x mounting plate (Intel), 2xmounting plate (AMD), 1x mounting bar, 4x screw for mounting plates, 8x stud nuts, 2x mounting screws, 1x spacer (socket 775), 4x spacer, 1x wrench, 4x fan clips, back plate, thermal grease, installation manual

Baseplate Material:
Nickel-plated copper (additional information)



Fan Specifications

Model Name:
GlideStream 120 PWM

Model-No.:
SY1225HB12SM-P

Fan Size:
120 x 120 x 25 mm / 4.72 x 4.72 x 0.98 in

Noise Level:
5,3 ~ 28 dBA

Air Flow:
20,7 ~ 79 CFM / 35,16 ~ 134,2 m³/h

Fan Speed:
400 (±200 rpm) ~ 1.400 rpm (±10%) (PWM-controlled)

Static Pressure:
1,18 ～ 15,3 Pa / 0,12 ～ 1,56 mmH2O

Bearing Type:
Sleeve Bearing
