Scythe - Grand Kama Cross 3

Foglalat támogatás	Intel s775 Intel s1366 Intel s1156 Intel s1155 Intel s1150 Intel s1151 Intel s2011 Intel s2011-3 AMD AM2 AMD AM3 AMD FM1 AMD FM2
TDP (W) - Teljesítmény	150W
Ventilátor mérete	140mm
Csatlakozó	4pin (PWM) - szabályozható
Magasság	147mm
Led világítás	Nincs LED
Extra tulajdonság	N/A
Max. ventilátor zaj	30,7dB
Max. ventilátor fordulat	1300 rpm
Hűtő tömege (teljes)	790gramm

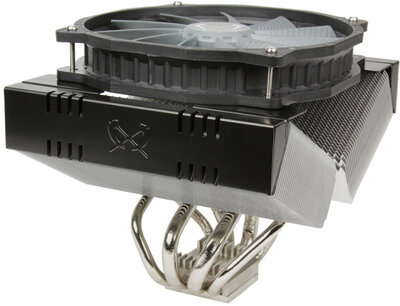

The Grand Kama Cross 3 with its eye-catching design (a common feature to the whole Grand Kama Cross series) stands out among Top-Blow coolers. The unique design conveys additional benefits, such as excellent memory compatibility and simultaneous cooling of chipset and VRMs. New to the third model are two 8mm heatpipes. The increased heatpipe diameter results in significantly better heat transfer from the base plate to the cooling fins. Together with further performance-optimizing improvements, Grand Kama Cross 3 has become the most powerful as well as the most silent cooler of the Grand Kama Cross family.

Improved cooling performance
By replacing two 6 mm with 8 mm heatpipes cooling performance increases tremendously. Special emphasis was put on efficient heat transfer between heatpipes and the base plate to further push performance limits and to unleash Grand Kama Cross’ full potential.

X-Struktur Design
The unique design of the Grand Kama Cross 3 supports mounting of large heatsink memory modules or large VRM / chipset-heatsinks without interference. It even provides simultaneous cooling for these CPU surrounding components.

Low Noises
For the cooling fins, a turbulence minimizing saw tooth profile is used. This results in lower operating noise at higher fan rpm ranges. In addition, less air resistance optimizes the cooling capacity.

GlideStream 140 PWM
The supplied fan is a customized version of the Scythe GlideStream model, adapted to the Grand Kama Cross 3. It runs at a lower minimum speed and provides, in combination with the heat fin profile, less flow noise.

Model Name:
Grand Kama Cross 3 CPU Cooler

Model Number:
SCGKC-3000

Compatibility:
Intel®:
Socket LGA775
Socket LGA1150
Socket LGA1151
Socket LGA1155
Socket LGA1156
Socket LGA1366
Socket LGA2011 / 2011-v3 (Square ILM)

AMD®:
Socket AM2
Socket AM2+
Socket AM3
Socket AM3+
Socket FM1
Socket FM2
Socket FM2+

Please note that an original backplate with screw mounting is needed for installation on mainboards with AMD sockets. Please check before buying if the backplate is fixed by screws (example)! If the backplate uses plastic-pins, mounting of this cooler is not possible.

Overall Dimensions:
171 x 147 x 140 mm / 5.79 x 5.51 x 6.73 in (including fan - more details)

Weight:
790 g / 27.86 oz

Accessory:
mounting parts for Intel and AMD sockets, screw driver, wrench, thermal grease, installation manual

Baseplate Material:
Nickel-plated copper (additional information)



Fan Specifications



Model Name:
GlideStream 140 PWM

Model-No.:
SY1425HB12M-P

Dimensions:
140 x 140 x 25 mm / 5.51 x 5.51 x 0.98 mm

Noise Level:
12.5 ~ 30.7 dBA

Air Flow:
29.90 ~ 97.18 CFM - 50.79 ~ 165.08 m³/h

Fan Speed:
400 (±300 upm) ~ 1.300 upm (±10%) (PWM-gesteuert)

Static Pressure:
0.98 ~ 10.0 Pa / 0.10 ~ 1.02 mmH²O

Bearing Type:
Gleitlager

max. Power Input:
4,44W

Voltage:
12V

Amperage:
0,37A
