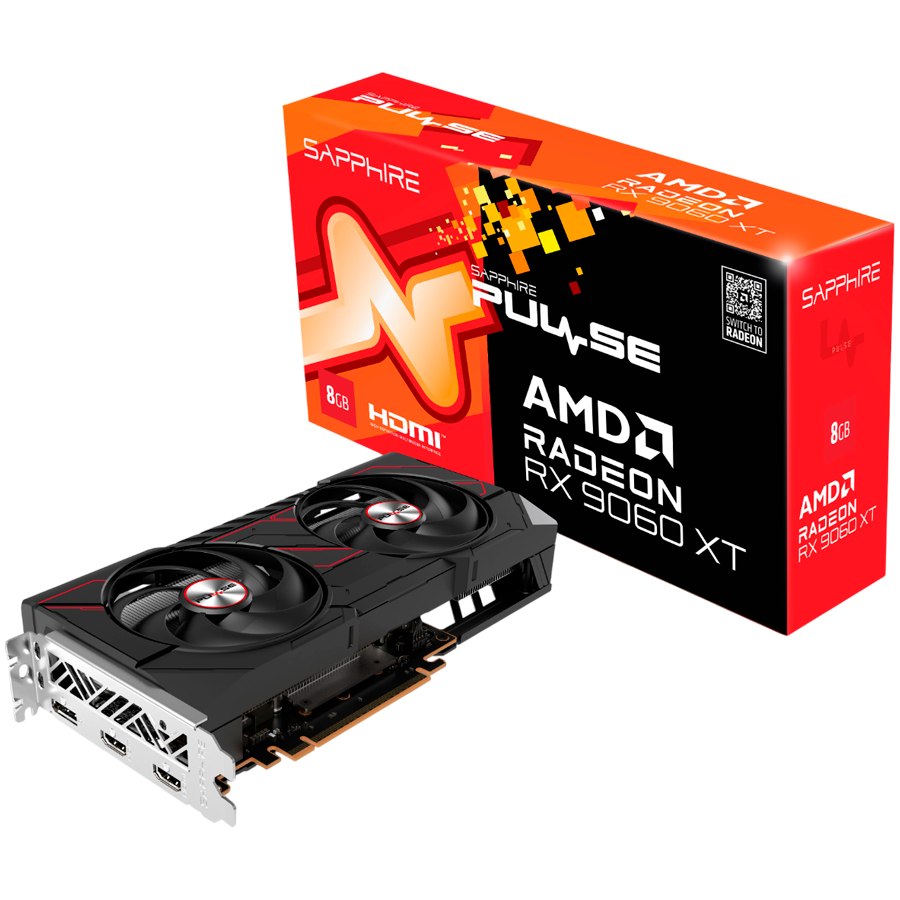

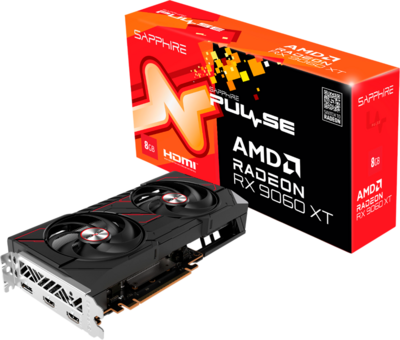

Sapphire RX9060XT - PULSE - 11350-04-20G

GPU

AMD Radeon™ RX 9060 XT Graphics Card
AMD RDNA™ 4 Architecture

Engine Clock

• Boost Clock: Up to 3290 MHz
• Game Clock: Up to 2700 MHz

Boost Clock is the maximum frequency achievable on the GPU running bursty workload. Boost clock achievability, frequency, and sustainabilty will vary based on several factors, including but not limited to: thermal conditions and variation in application and workloads.

Game Clock is the expected GPU clock when running typical gaming applications, set to typical TGP(Total Graphics Power). Actual individual game clock results may vary.

Stream Processors

2048

Compute Units

32 CUs (3rd Gen RT + 2nd Gen AI Accelerators)

Infinity Cache

32MB

Ray Accelerators

32

AI Accelerator

64

Memory Size/Bus

8GB/128 bit GDDR6

Memory Clock

20 Gbps Effective

Displays

Maximum 3 Displays

Resolution

• HDMI®: 7680×4320
• DisplayPort™ 2.1a: 7680×4320

Interface

PCI-Express 5.0 x16

Output

• 2x HDMI®
• 1x DisplayPort™ 2.1a

BIOS Support

• UEFI

Game Index

1080P ULTRA

Sapphire Features

• Honeywell PTM7950 Thermal Interface Material (TIM)
• AeroCurve Fan Blade
• Free Flow
• FrameDefense
• Integrated Cooling Module
• Dual-X Cooling Technology
• High TG Copper PCB
• Optimized Composite Heatpipes
• Metal Backplate
• Sleeve Bearing Fans
• 9-Phase Digital Power Design
• Fuse Protection
• Intelligent Fan Control
• Precision Fan Control
• TriXX Supported
• TriXX Boost

AMD Features

• AMD RDNA™ 4 Architecture
• 32 Compute Units (3rd Gen RT + 2nd Gen AI Accelerators)
• AMD HYPR-RX with AFMF 2
• AMD FidelityFX™ Super Resolution 4 with AI Upscaling
• DisplayPort™ 2.1a
• AMD Radiance Display™ Engine
• AMD Fluid Motion Frames 2 technology
• AMD Radeon™ Anti-Lag 2 technology
• AV1 Encode/Decode
• AMD FidelityFX™ technologies
• Microsoft® DirectX® 12 Ultimate
• AMD Noise Suppression
• AMD Freesync™ technology
• AMD Infinity Cache
• 8 GB of GDDR6 on 128-bit Memory Bus
• AMD smart technologies
• AMD Software: Adrenalin Edition™ application

Cooler Type

• Dual-X Cooling
• AeroCurve Fan Blade
• Free Flow
• Integrated Cooling Module
• High TG Copper PCB
• Optimized Composite Heatpipes
• Sleeve Bearing

Form Factor

2.3 slot, ATX
Dimension: 244(L)X 124(W)X 46.1 (H)mm

Power Consumption

170W Typical Board Power

OS

Linux®, Windows® 10, and Windows 11. 64-bit  operating system required

System Requirement

• Minimum 450 Watt Power Supply
• 1 x 8-pin Power Connector.
• PCI Express® based PC is required with one X16 lane graphics slot available on the motherboard.
• Minimum 8GB of system memory. 16GB recommended.
