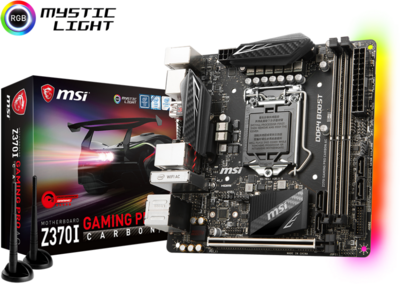

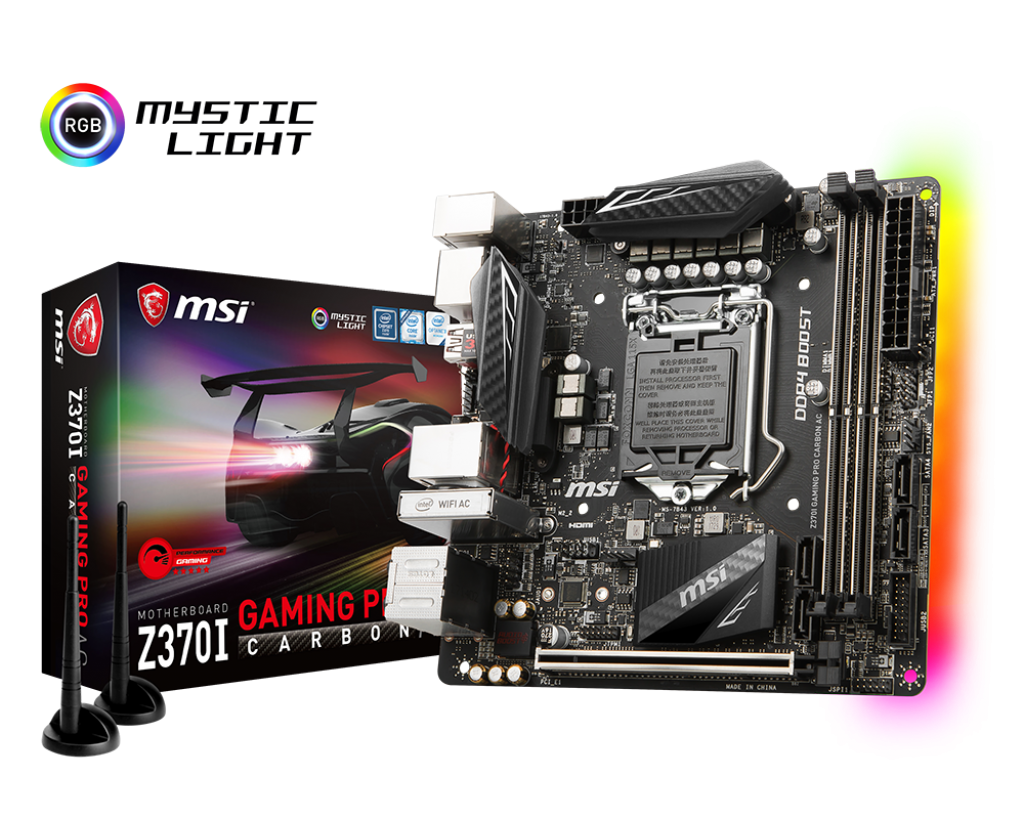

S1151 MSI Z370I GAMING PRO CARBON AC

PROCESSOR

Supports 8th Generation Intel^® Core™ Processors, and Intel^® Pentium^® and Celeron^® Processors for Socket LGA1151

See supported processors

CHIPSET

Intel^® Z370 Chipset

MEMORY

• 2 x DDR4 memory slots, support up to 32GB
  • Supports 4500(OC)/ 4400(OC)/ 4333(OC)/ 4266(OC)/ 4133(OC)/ 4000(OC)/ 3866(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3300(OC)/ 3200(OC)/ 3000(OC)/ 2800(OC)/ 2667/ 2400/ 2133 MHz Memory¹
• Dual channel memory architecture
• Supports non-ECC, un-buffered memory
• Supports Intel^® Extreme Memory Profile (XMP)

1. Please refer to Compatibility for more information on compatible memory

See supported memory

SLOTS

• 1 x PCIe 3.0 x16 slot

ONBOARD GRAPHICS

• 1 x HDMI^™ port 1.4, supports a maximum resolution of 4096x2160@30Hz
• 1 x DisplayPort port 1.2, supports a maximum resolution of 4096X2304@60Hz

STORAGE

Intel^® Z370 Chipset

• 4 x SATA 6Gb/s ports
  • Supports RAID 0, RAID1, RAID 5 and RAID 10 for SATA storage devices
• 1 x M.2 slot (M2_1, Key M)
  • Support up to PCIe 3.0 x4 and SATA 6Gb/s
  • Supports 2242/ 2260 /2280 storage devices
  • Intel^® Optane™ Memory Ready

USB

ASMedia^® ASM3142 Chipset

• 1 x USB 3.1 Gen2 (SuperSpeed USB 10Gbps) Type-C port on the back panel
• 1 x USB 3.1 Gen2 (SuperSpeed USB 10Gbps) Type-A port on the back panel

Intel^® Z370 Chipset

• 4 x USB 3.1 Gen1 (SuperSpeed USB) ports (2 Type-A ports on the back panel, 2 ports available through the internal USB connector)
• 4 x USB 2.0 (High-speed USB) ports (2 Type-A ports on the back panel, 2 ports available through the internal USB connector)

AUDIO

Realtek^® ALC1220 Codec

• 7.1-Channel High Definition Audio
• Supports S/PDIF output

WIRSLESS LAN & BLUETOOTH^®

Intel^® Dual Band Wireless-AC 8265 card

• The Wireless module is pre-install in the M2_2 (M.2 Key E) slot.
• Supports Wi-Fi 802.11 a/b/g/n/ac, dual band (2.4GHz, 5GHz) up to 867 Mbps speed.
• Supports Dual Mode Bluetooth® 2.1, 2.1+EDR, 3.0, 4.0, BLE, 4.2

LAN

• 1 x Intel I219-V Gigabit LAN controller

INTERNAL CONNECTORS

• 1 x 24-pin ATX main power connector
• 1 x 8-pin ATX 12V power connector
• 4 x SATA 6Gb/s connectors
• 1 x USB 3.1 Gen1 connector (supports additional 2 USB 3.1 Gen1 ports)
• 1 x USB 2.0 connector (supports additional 2 USB 2.0 ports)
• 1 x 4-pin CPU fan connector
• 1 x 4-pin system fan connector
• 1 x Front panel audio connector
• 2 x Front panel connectors
• 1 x TPM module connector
• 1 x Chassis Intrusion connector
• 1 x Clear CMOS jumper
• 1 x 5050 RGB LED strip 12V connector
• 1 x CORSAIR Individually Addressable RGB LED strip 5V connector

BACK PANEL PORTS

1. Keyboard / Mouse
2. DisplayPort,Intel^® Gigabit LAN
3. Intel Wi-Fi & Bluetooth
4. Golden Audio Connectors
5. USB 2.0
6. HDMI
7. USB 3.1 Gen2 Type-A/C
8. Clear CMOS Button
9. USB 3.1 Gen1
10. Optical S/PDIF-Out

DIMENSIONS

• 6.7 in. x 6.7 in. (17.0 cm x 17.0 cm)
• Mini-ITX Form Factor

MOUNTING

4 mounting holes
