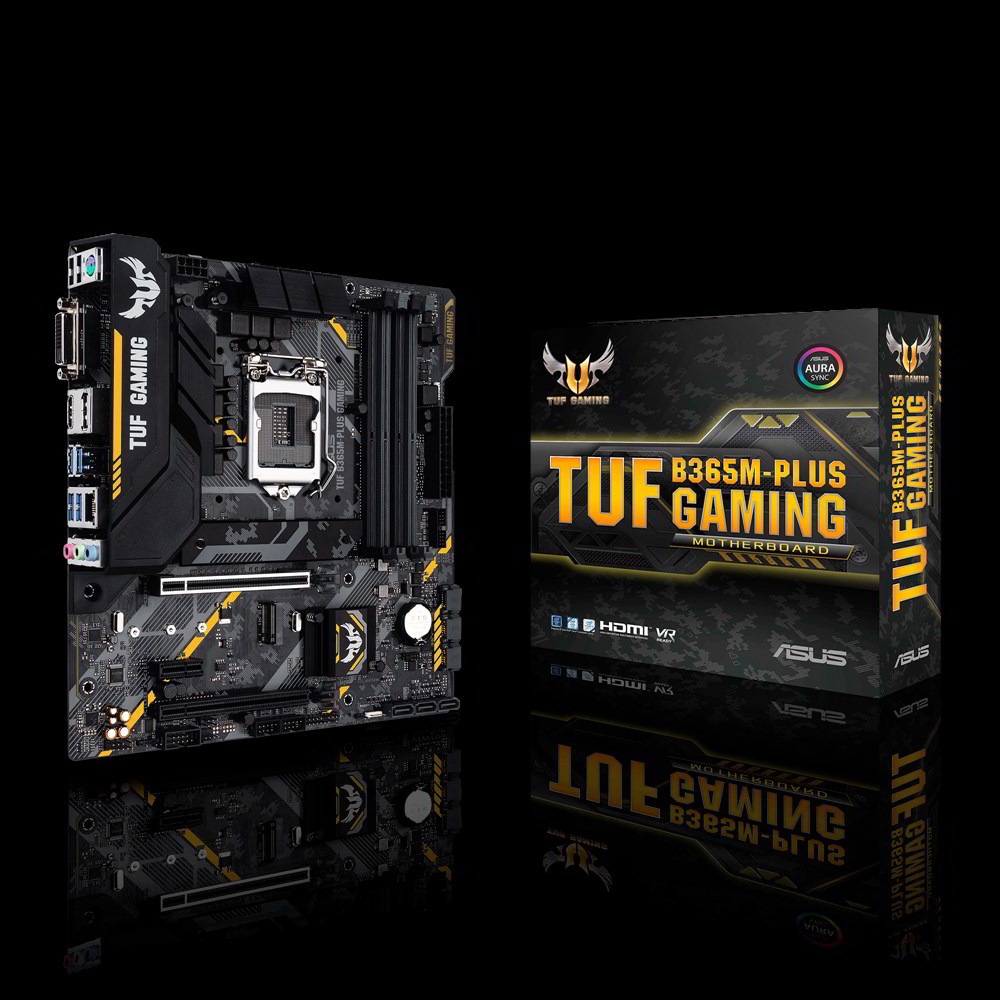

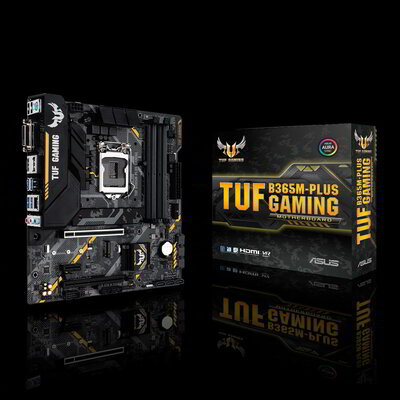

S1151 ASUS TUF B365M-PLUS GAMING

Intel® Socket 1151 9th / 8th Gen Intel^® Core™, Pentium^® Gold and Celeron^® Processors
Supports Intel® 14 nm CPU
Supports Intel® Turbo Boost Technology 2.0
* The Intel® Turbo Boost Technology 2.0 support depends on the CPU types.
* Refer to www.asus.com for CPU support list

Intel® B365

Intel® B365 Chipset
4 x DIMM, Max. 64GB, DDR4 2666/2400/2133 MHz Non-ECC, Un-buffered Memory
Dual Channel Memory Architecture
Supports Intel® Extreme Memory Profile (XMP)
* Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
* The maximum memory frequency supported varies by processor
** DDR4 2666MHz and higher memory modules will run at max. 2666MHz on Intel® 8th Gen. 6-core or higher processors.

Integrated Graphics Processor- Intel® HD Graphics support
Multi-VGA output support : HDMI/DVI-D/DisplayPort ports
- Supports HDMI with max. resolution 4096 x 2160 @ 30 Hz
- Supports DVI-D with max. resolution 1920 x 1200 @ 60 Hz
- Supports DisplayPort 1.2 with max. resolution 4096 x 2304 @ 60 Hz
Maximum shared memory of 1024 MB (for iGPU exclusively)
Supports Intel® InTru™ 3D, Quick Sync Video, Clear Video HD Technology, Insider™
Supports up to 3 displays simultaneously

Supports AMD CrossFireX™ Technology

1 x PCIe 3.0 x16 (x16 mode)
1 x PCIe 3.0 x16 (max at x4 mode)
1 x PCIe 3.0/2.0 x1

Intel® B365 Chipset :
1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode)
1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (PCIE 3.0 x 4 mode)
6 x SATA 6Gb/s port(s), gray
Support Raid 0, 1, 5, 10
Intel® Optane™ Memory Ready

Intel® I219V, 1 x Gigabit LAN
TUF LANGuard

Realtek® ALC1200 8-Channel High Definition Audio CODEC
- Supports : Jack-detection, Front Panel Jack-retasking
Audio Feature :
- Audio Shielding: Ensures precision analog/digital separation and greatly reduced multi-lateral interference
- Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals
- Premium Japanese audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity
* Choose the chassis with HD audio module in front panel to support 8-channel audio output.

Intel® B365 Chipset :
6 x USB 3.1 Gen 1 port(s) (4 at back panel, blue, 2 at mid-board)
Intel® B365 Chipset :
6 x USB 2.0/1.1 port(s) (2 at back panel, , 4 at mid-board)

ASUS TUF PROTECTION
- ASUS ESD Guard: Enhanced ESD protection
- ASUS Overvoltage Protection: World-class circuit-protecting power design
- ASUS Stainless-Steel Back I/O: 3X corrosion-resistance for greater durability!
- ASUS DIGI+ VRM: Precision control for stable power
- ASUS Safe Slot core+: PCIe slot fortified with a stainless-steel brace
ASUS OptiMem：
- Optimem (Improved DDR4 stability)
ASUS EPU :
- EPU
ASUS Exclusive Features :
- AI Suite 3
- Ai Charger
- PC Cleaner
ASUS Quiet Thermal Solution :
- Stylish Fanless Design: PCH Heat-sink & MOS Heat-sink & M.2 Heat-sink solution
- ASUS Fan Xpert 2+
ASUS EZ DIY :
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
ASUS Q-Design :
- ASUS Q-Slot
- ASUS Q-DIMM
M.2 Onboard(The latest transfer technologies with up to 32Gb/s data transfer speeds)

1 x PS/2 keyboard/mouse combo port(s)
1 x DVI-D
1 x DisplayPort
1 x HDMI
1 x LAN (RJ45) port(s)
4 x USB 3.1 Gen 1 USB Type-C^TM up to 5Gbps
2 x USB 2.0
1 x 8-channel Audio I/O

1 x Addressable RGB header
1 x Aura RGB Strip Header
1 x USB 3.1 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s) (19-pin, moss green)
2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
2 x M.2 Socket 3 for M Key, type 2242/2260/2280 devices
1 x COM port(s) connector(s)
6 x SATA 6Gb/s connector(s)
1 x CPU Fan connector(s)
2 x Chassis Fan connector(s)
1 x S/PDIF out header(s)
1 x 24-pin EATX Power connector(s)
1 x 8-pin EATX 12V Power connectors
1 x Front panel audio connector(s) (AAFP)
1 x Clear CMOS jumper(s)
1 x System panel connector

User's manual
I/O Shield
2 x SATA 6Gb/s cable(s)
2 x M.2 screws
1 x Supporting DVD
1 x TUF GAMING Sticker
1 x TUF Certification card(s)

128Mb Flash ROM, UEFI AMI BIOS, PnP, SM BIOS 3.1, ACPI 6.1, Multi-language BIOS, ASUS EZ Flash 3, CrashFree BIOS 3, F3 My Favorites, Last Modified log, F6 Qfan Control, F12 PrintScreen, and ASUS DRAM SPD (Serial
Presence Detect) memory information

Windows® 10 64-bit

mATX Form Factor
9.6 inch x 9.5 inch ( 24.4 cm x 24.1 cm )

WOL by PME, PXE
