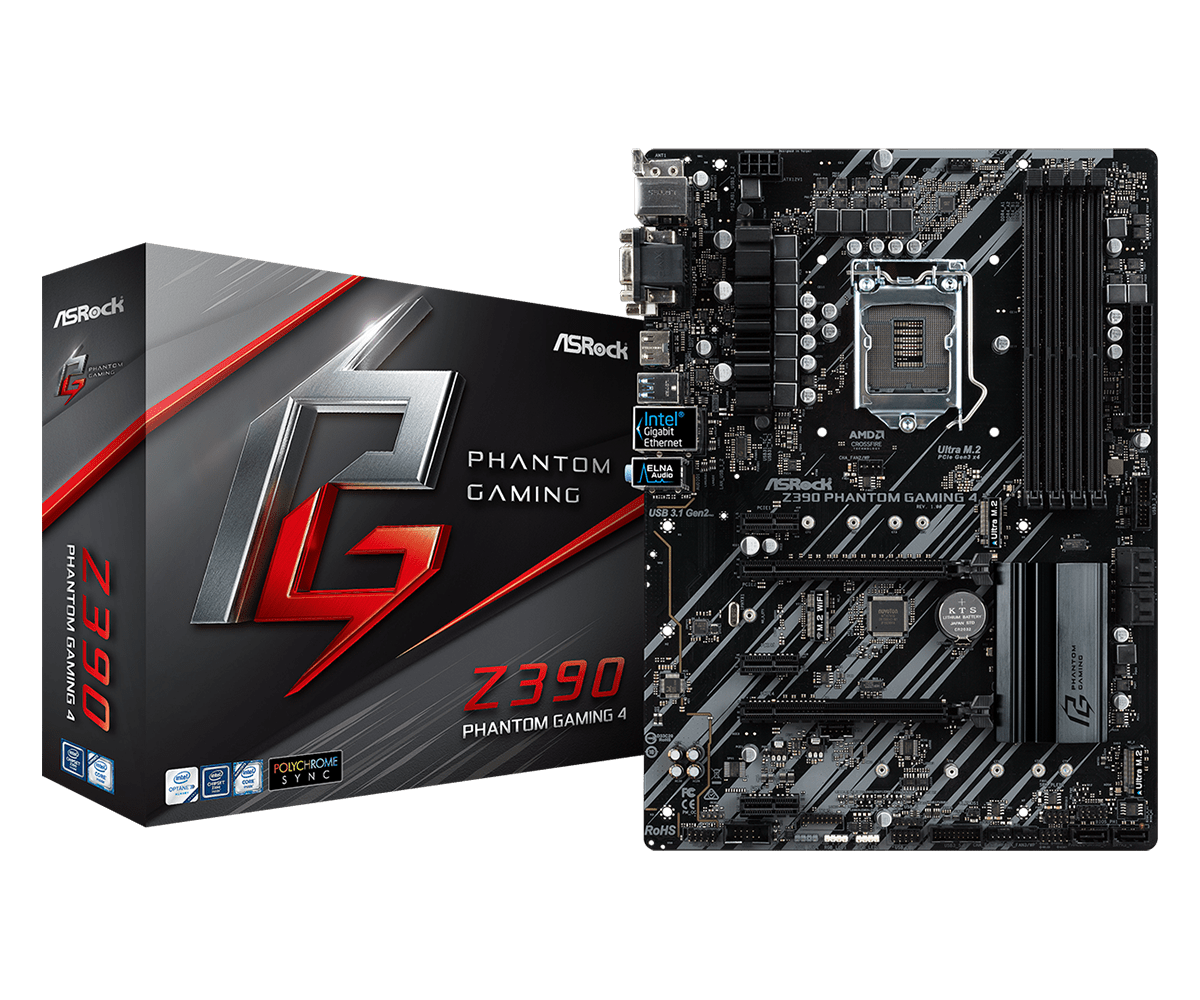

S1151 ASROCK Z390 PHANTOM GAMING 4

Azonosító #164781
Gyártó ASRock
CikkszámZ390 PHANTOM GAMING 4
Frissítve484 napja
Garancia 12 hónap
(32 740 Ft + ÁFA)

41 580 Ft

NEM RENDELHETŐ
0 vélemény
Írjon véleményt

SPECIFIKÁCIÓ

Processzor foglalat Socket 1151v2
Chipset Z390
Memória típus DDR4
Memória foglalatok száma 4 x DIMM
Videókártya csatlakozók száma 4 x Pci-Ex (3.0)
Háttértár csatlakozók
  • 6 x SATA 3
  • 2 x M.2 PCIe
Hátlapi csatlakozók
  • 1 x 10/100/1000 MB/s RJ45
  • PS/2
  • VGA
  • DVI-D
  • HDMI(1.4)
  • 2 x USB 2.0
  • 1 x USB 3.1 Gen2
  • 1 x USB 3.1 Gen2 Type-C
  • 2 x USB 3.1 Gen1
Alaplapi csatlakozók
  • 3 x Pci-Ex (x1)
  • M.2 Wi-Fi foglalat
  • 2 x RGB LED csatlakozó (4pin)
  • 1 x ARGB LED csatlakozó (3pin)
  • Thunderbolt csatlakozó
  • 2 x USB 2.0 tüske
  • 2 x USB 3.1 Gen1 tüske
Ventilátor csatlakozók
  • 1 x 4pin CPU ventillátor
  • 3 x 4pin ház ventillátor
Tápcsatlakozók
  • 20+4 PIN ATX
  • 8 PIN 12V
Méret ATX
Extra tulajdonság
  • Gamer (játékosoknak)
  • RAID
Súly 1.26 kg

Termék leírás

  • Gaming Armor

    Memory
    - 15μ Gold Contact in DIMM Slots
    Internet
    - Intel® LAN

  • Unique Feature

    ASRock USB 3.1 Gen2
    - ASRock USB 3.1 Gen2 Type-A Port (10 Gb/s)
    - ASRock USB 3.1 Gen2 Type-C Port (10 Gb/s)
    ASRock Super Alloy
    - Premium 50A Power Choke
    - Sapphire Black PCB
    - High Density Glass Fabric PCB
    ASRock Intel® 4-Layer Memory POOL (Planes on Outer Layers) Technology
    ASRock Ultra M.2 (PCIe Gen3 x4 & SATA3)
    ASRock Full Spike Protection (for all USB, Audio, LAN Ports)
    ASRock Live Update & APP Shop

  • CPU

    - Supports 9th and 8th Gen Intel® Core™ Processors (Socket 1151)
    - Digi Power design
    - 10 Power Phase design
    - Supports Intel® Turbo Boost 2.0 Technology
    - Supports Intel® K-Series unlocked CPUs
    - Supports ASRock BCLK Full-range Overclocking

  • Chipset

    - Intel® Z390

  • Memory

    - Dual Channel DDR4 Memory Technology
    - 4 x DDR4 DIMM Slots
    - Supports DDR4 4300+(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3200(OC) / 2933(OC) / 2800(OC) / 2666 / 2400 / 2133 non-ECC, un-buffered memory
    - Supports ECC UDIMM memory modules (operate in non-ECC mode)
    - Max. capacity of system memory: 64GB*
    - Supports Intel® Extreme Memory Profile (XMP) 2.0
    - 15μ Gold Contact in DIMM Slots

    *Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows® 32-bit OS. For Windows® 64-bit OS with 64-bit CPU, there is no such limitation.

  • BIOS

    - 128Mb AMI UEFI Legal BIOS with multilingual GUI support
    - ACPI 6.0 Compliant wake up events
    - SMBIOS 2.7 Support
    - DRAM, PCH 1.0V, VCCIO, VCCST, VCCSA, VPPM Voltage Multi-adjustment

  • Graphics

    - Supports Intel® UHD Graphics Built-in Visuals : Intel® Quick Sync Video with AVC, MVC (S3D) and MPEG-2 Full HW Encode1, Intel® InTru™ 3D, Intel® Clear Video HD Technology, Intel® Insider™, Intel® UHD Graphics
    - DirectX 12
    - HWA Encode/Decode: AVC/H.264, HEVC/H.265 8-bit, HEVC/H.265 10-bit, VP8, VP9 8-bit, VP9 10-bit (Decode only), MPEG2, MJPEG, VC-1 (Decode only)
    - Three graphics output options: D-Sub, DVI-D and HDMI
    - Supports Triple Monitor
    - Supports HDMI with max. resolution up to 4K x 2K (4096x2160) @ 30Hz
    - Supports DVI-D with max. resolution up to 1920x1200 @ 60Hz
    - Supports D-Sub with max. resolution up to 1920x1200 @ 60Hz
    - Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI Port (Compliant HDMI monitor is required)
    - Supports HDCP with DVI-D and HDMI Ports
    - Supports 4K Ultra HD (UHD) playback with HDMI Port

    *Intel® UHD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated.

  • Audio

    - 7.1 CH HD Audio with Content Protection (Realtek ALC892 Audio Codec)*
    - Premium Blu-ray Audio support
    - Supports Surge Protection
    - ELNA Audio Caps

    *To configure 7.1 CH HD Audio, it is required to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver.

  • LAN

    - Gigabit LAN 10/100/1000 Mb/s
    - Giga PHY Intel® I219V
    - Supports Wake-On-LAN
    - Supports Lightning/ESD Protection
    - Supports Energy Efficient Ethernet 802.3az
    - Supports PXE

  • Slots

    - 2 x PCI Express 3.0 x16 Slots (PCIE2/PCIE4: single at x16 (PCIE2); dual at x16 (PCIE2) / x4 (PCIE4))
    - 3 x PCI Express 3.0 x1 Slots (Flexible PCIe)
    - Supports AMD Quad CrossFireX™ and CrossFireX™
    - 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT module and Intel® CNVi (Integrated WiFi/BT)

    *Supports NVMe SSD as boot disks

  • Storage

    - 6 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1, RAID 5, RAID 10, Intel® Rapid Storage Technology 16), NCQ, AHCI and Hot Plug*
    - 1 x Ultra M.2 Socket (M2_1), supports M Key type 2230/2242/2260/2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s)**
    - 1 x Ultra M.2 Socket (M2_2), supports M Key type 2230/2242/2260/2280/22110 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s)**

    *If M2_1 is occupied by a SATA-type M.2 device, SATA3_5 will be disabled.
    If M2_2 is occupied by a SATA-type M.2 device, SATA3_1 will be disabled.
    If M2_2 is occupied by a PCIe-type M.2 device, SATA3_0 will be disabled.

    ***Supports Intel® Optane™ Technology
    Supports NVMe SSD as boot disks
    Supports ASRock U.2 Kit

  • Connector

    - 1 x COM Port Header
    - 1 x TPM Header
    - 1 x Power LED and Speaker Header
    - 2 x RGB LED Headers*
    - 1 x Addressable LED Header**
    - 1 x CPU Fan Connector (4-pin)***
    - 3 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)****
    - 1 x 24 pin ATX Power Connector
    - 1 x 8 pin 12V Power Connector
    - 1 x Front Panel Audio Connector
    - 1 x Thunderbolt™ AIC Connector (5-pin)
    - 2 x USB 2.0 Headers (Support 3 USB 2.0 ports) (Supports ESD Protection)
    - 2 x USB 3.1 Gen1 Headers (Support 4 USB 3.1 Gen1 ports) (Supports ESD Protection)
    - 1 x Performance Mode / Easy OC Header

    *Support in total up to 12V/3A, 36W LED Strip

    **Supports in total up to 5V/3A, 15W LED Strip

    ***The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power.

    ****The Chassis/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power.
    CHA_FAN1/WP, CHA_FAN2/WP and CHA_FAN3/WP can auto detect if 3-pin or 4-pin fan is in use.

  • Rear Panel I/O

    - 1 x Antenna Ports
    - 1 x PS/2 Mouse/Keyboard Port
    - 1 x D-Sub Port
    - 1 x DVI-D Port
    - 1 x HDMI Port
    - 2 x USB 2.0 Ports (Supports ESD Protection)
    - 1 x USB 3.1 Gen2 Type-A Port (10 Gb/s) (Supports ESD Protection)
    - 1 x USB 3.1 Gen2 Type-C Port (10 Gb/s) (Supports ESD Protection)
    - 2 x USB 3.1 Gen1 Ports (Supports ESD Protection)
    - 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
    - HD Audio Jacks: Line in / Front Speaker / Microphone

  • Software and UEFI

    Software
    - ASRock Phantom Gaming Tuning
    - ASRock Polychrome RGB
    - ASRock Key Master
    - ASRock XFast LAN
    UEFI
    - ASRock EZ Mode
    - ASRock Full HD UEFI
    - ASRock My Favorites in UEFI
    - ASRock Instant Flash
    - ASRock Internet Flash
    - ASRock Easy RAID Installer

    *These utilities can be downloaded from ASRock Live Update & APP Shop.

  • Support CD

    - Drivers, Utilities, AntiVirus Software (Trial Version), Google Chrome Browser and Toolbar

  • Accessories

    - Quick Installation Guide, Support CD, I/O Shield
    - 2 x SATA Data Cables
    - 3 x Screws for M.2 Sockets

  • Hardware Monitor

    - Temperature Sensing: CPU, Chassis/Water Pump Fans
    - Fan Tachometer: CPU, Chassis/Water Pump Fans
    - Quiet Fan (Auto adjust chassis fan speed by CPU temperature): CPU, Chassis/Water Pump Fans
    - Fan Multi-Speed Control: CPU, Chassis/Water Pump Fans
    - Voltage monitoring: +12V, +5V, +3.3V, CPU Vcore, DRAM, VPPM, PCH 1.0V, VCCSA, VCCST

  • Form Factor

    - ATX Form Factor: 12.0-in x 8.8-in, 30.5 cm x 22.4 cm
    - Solid Capacitor design

  • OS

    - Microsoft® Windows® 10 64-bit

  • Certifications

    - FCC, CE
    - ErP/EuP ready (ErP/EuP ready power supply is required)
