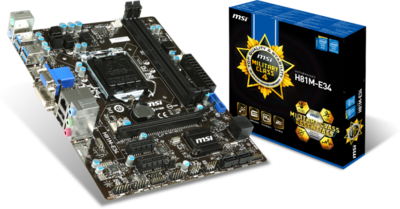

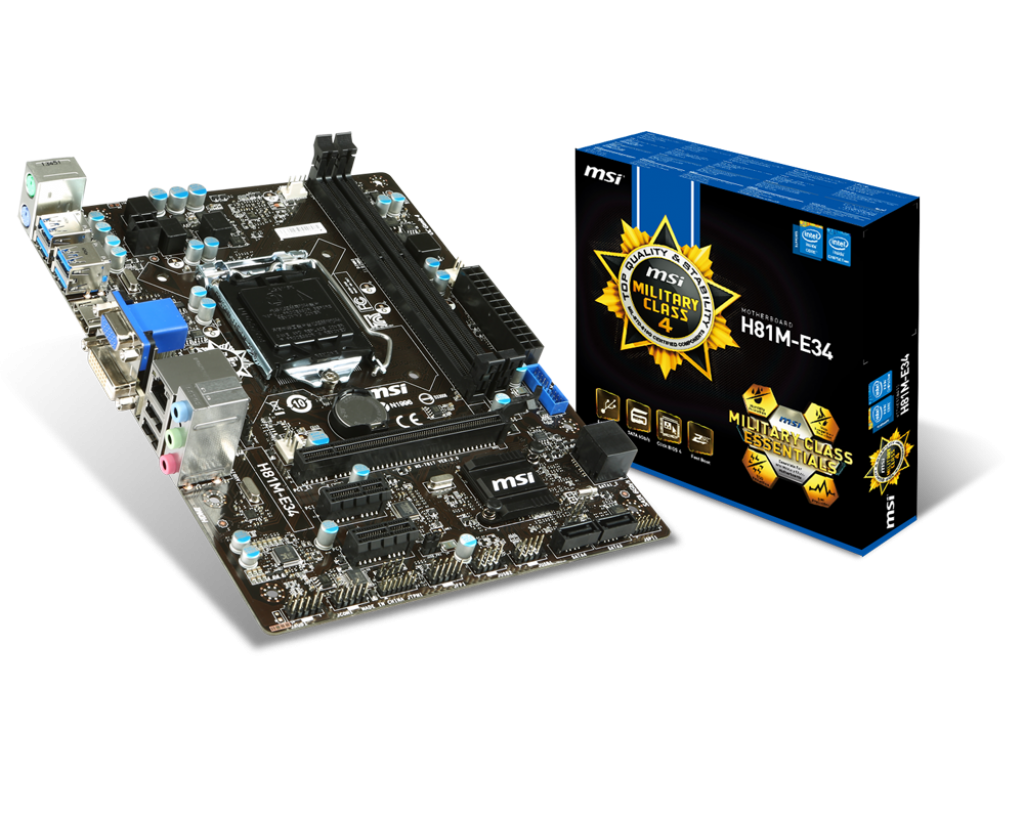

S1150 MSI H81M-E34

CPU
• 4th Generation Intel^® Core™ i7 / Core™ i5 / Core™ i3 / Pentium^® / Celeron^® processors for LGA 1150 socket
Please refer to CPU Support for compatible CPU; the above description is for reference only.

Chipset
• Intel^® H81 Express

Main Memory
• Support two DDR3 DIMMs 1066/1333/1600 MHz, up to 16GB Max
- Supports Dual-Channel mode
- Supports non-ECC, un-buffered memory

 Slots

• 1 x PCIe 2.0 x16 slot
• 2 x PCIe 2.0 x1 slot

On-Board SATA
• SATAIII controller integrated in Intel^® H81 chipset
- Up to 6Gb/s transfer speed.
- Supports two SATAIII ports (SATA1~2) by H81
• SATAII controller integrated in Intel^® H81 chipset
- Up to 3Gb/s transfer speed.
- Supports two SATAII ports (SATA3~4) by H81

USB 3.0

• Intel H81 Express Chipset
- 6 x USB 3.0 ports on the back panel (4 ports on the back panel, 2 ports available through the internal USB connectors*)
- 6 x USB 2.0 ports (2 ports on the back panel, 4 ports available through the internal USB connectors*)

Audio
• Chip integrated by Realtek^® ALC887

LAN
• Supports Gigabit LAN 10/100/1000 by Realtek^® RTL8111G

Internal I/O Connectors
- 1 x 24-pin ATX main power connector
- 1 x 4-pin ATX 12V power connector
- 2 x SATA 6Gb/s connectors
- 2 x SATA 3Gb/s connectors
- 2 x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
- 1 x USB 3.0 connector (supports additional 2 USB 3.0 ports)
- 1 x 4-pin CPU fan connector
- 1 x 4-pin system fan connector
- 1 x 3-pin system fan connector
- 1 x Front panel audio connector
- 2 x System panel connectors
- 1 x Chassis Intrusion connector
- 1 x TPM module connector
- 1 x Serial port connector
- 1 x Clear CMOS jumper
- 2 x USB power jumpers

Back Panel I/O Ports
- 1 x PS/2 keyboard/mouse port
- 2 x USB 2.0 ports
- 4 x USB 3.0 ports
- 1 x HDMI port
- 1 x DVI-D port
- 1 x VGA port
- 1 x LAN (RJ45) port
- 3 x audio jacks

BIOS
• UEFI AMI BIOS
• ACPI 5.0, PnP 1.0a, SM BIOS 2.7, DMI 2.0
• Multi-language

Dimension
• 22.6 cm x 17.3 cm Micro-ATX Form Factor

 Mounting
• 6 mounting holes
