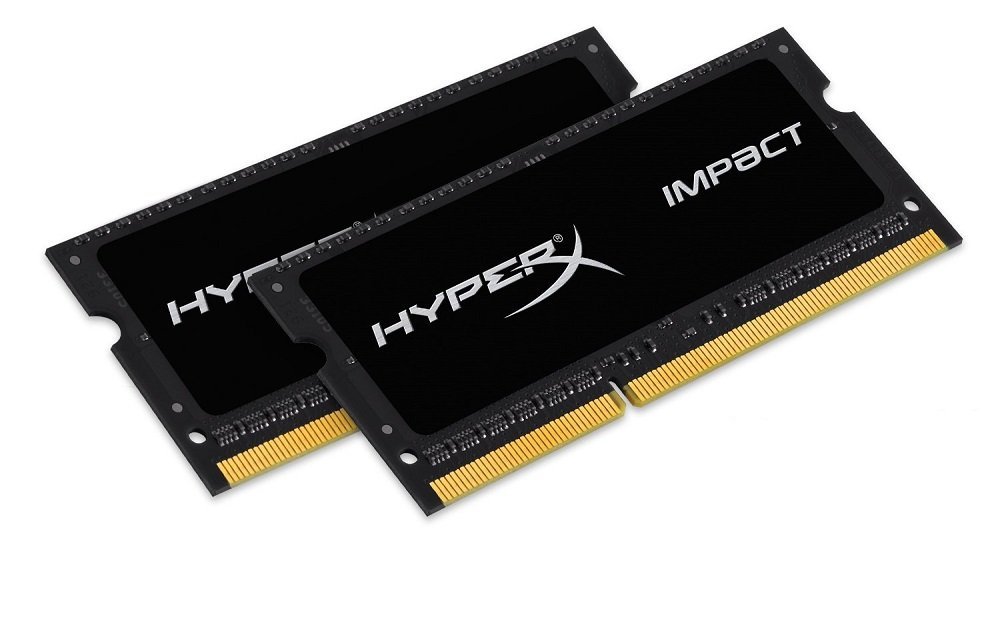

Notebook DDR3L Kingston HyperX Impact 1866MHz 16GB - HX318LS11IBK2/16 (KIT 2DB)

Memória típus	SO-DIMM DDR3L
Memória kapacitás	16 GB
Órajel	1866 MHz
Kiszerelés	KIT (2db)
Hűtőborda	Nincs
Hűtőborda színe	Nincs borda
Időzítés	CL11

SPECIFICATIONS
CL(IDD) 11 cycles
Row Cycle Time (tRCmin) 44.7ns (min.)
Refresh to Active/Refresh 260ns (min.)
Command Time (tRFCmin)
Row Active Time (tRASmin) 34ns (min.)
Maximum Operating Power TBD W* @1.35V
UL Rating 94 V - 0
Operating Temperature 0o
C to 85o C
Storage Temperature -55o
C to +100o C
*Power will vary depending on the SDRAM used

FEATURES
• JEDEC standard 1.35V (1.28V ~ 1.45V) and 1.5V (1.425V ~
1.575V) Power Supply
• VDDQ = 1.35V (1.28V ~ 1.45V) and 1.5V (1.425V ~ 1.575V)
• 933MHz fCK for 1866Mb/sec/pin
• 8 independent internal bank
• Programmable CAS Latency: 13, 11, 10, 9, 8, 7, 6, 5
• Programmable Additive Latency: 0, CL - 2, or CL - 1 clock
• 8-bit pre-fetch
• Burst Length: 8 (Interleave without any limit, sequential with
starting address “000” only), 4 with tCCD = 4 which does not
allow seamless read or write [either on the fly using A12 or
MRS]
• Bi-directional Differential Data Strobe
• Internal(self) calibration : Internal self calibration through ZQ
pin (RZQ : 240 ohm ± 1%)
• On Die Termination using ODT pin
• Average Refresh Period 7.8us at lower than TCASE 85°C,
3.9us at 85°C < TCASE < 95°C
• Asynchronous Reset
• PCB : Height 1.180” (30.00mm), double sided componentSPECIFICATIONS
CL(IDD) 11 cycles
Row Cycle Time (tRCmin) 44.7ns (min.)
Refresh to Active/Refresh 260ns (min.)
Command Time (tRFCmin)
Row Active Time (tRASmin) 34ns (min.)
Maximum Operating Power TBD W* @1.35V
UL Rating 94 V - 0
Operating Temperature 0o
C to 85o C
Storage Temperature -55o
C to +100o C
*Power will vary depending on the SDRAM used

FEATURES
• JEDEC standard 1.35V (1.28V ~ 1.45V) and 1.5V (1.425V ~
1.575V) Power Supply
• VDDQ = 1.35V (1.28V ~ 1.45V) and 1.5V (1.425V ~ 1.575V)
• 933MHz fCK for 1866Mb/sec/pin
• 8 independent internal bank
• Programmable CAS Latency: 13, 11, 10, 9, 8, 7, 6, 5
• Programmable Additive Latency: 0, CL - 2, or CL - 1 clock
• 8-bit pre-fetch
• Burst Length: 8 (Interleave without any limit, sequential with
starting address “000” only), 4 with tCCD = 4 which does not
allow seamless read or write [either on the fly using A12 or
MRS]
• Bi-directional Differential Data Strobe
• Internal(self) calibration : Internal self calibration through ZQ
pin (RZQ : 240 ohm ± 1%)
• On Die Termination using ODT pin
• Average Refresh Period 7.8us at lower than TCASE 85°C,
3.9us at 85°C < TCASE < 95°C
• Asynchronous Reset
• PCB : Height 1.180” (30.00mm), double sided component
