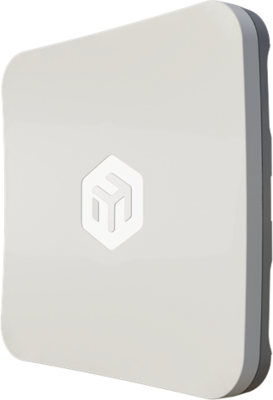

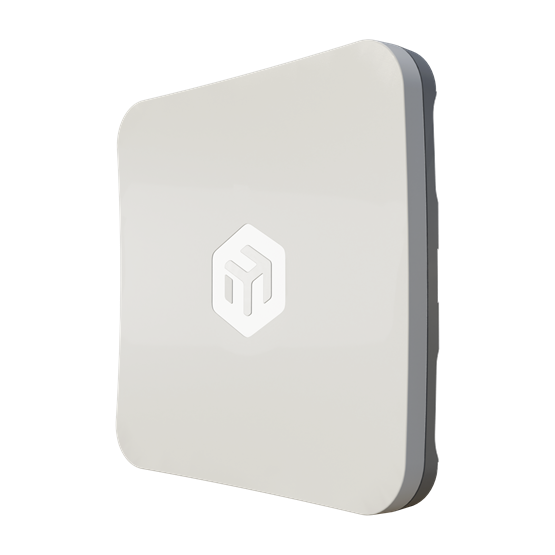

MikroTik - SXTsq 5 ax - SXTSQ-5AXD

Specification

Specifications

• Product codeSXTsq-5axD
• Suggested price$65.00
• ArchitectureARM 32bit
• CPUIPQ-5010
• CPU core count2
• CPU nominal frequency800 MHz
• CPU Threads count2
• RouterOS license4
• Operating SystemRouterOS v7
• Size of RAM256 MB
• Storage size128 MB
• Storage typeNAND
• MTBFApproximately 100'000 hours at 25C
• Tested ambient temperature-40°C to 70°C

Powering

• Number of DC inputs1 (PoE-IN)
• Max power consumption6 W
• PoE inPassive PoE
• Cooling typePassive
• PoE in input Voltage12-28 V

Wireless specifications

• Wireless 5 GHz Max data rate1200 Mbit/s
• Wireless 5 GHz Number of chains2
• Wireless 5 GHz standards802.11a/n/ac/ax
• Antenna gain dBi for 5 GHz16
• Wireless 5 GHz chip modelQCN-6102
• Wireless 5 GHz generationWi-Fi 6

Ethernet

• 10/100/1000 Ethernet ports1

Other

• CPU temperature monitorYes

Certification & Approvals

• CertificationCE, FCC, IC, EAC, ROHS
• IP55

Included parts

24V 0.38A power adapter

Gigabit PoE injector

Hose clamp 1

Note

The device has an operating system preinstalled and licensed. No separate purchase is necessary and the product is ready to use. The device includes free software updates for the life of the product or a minimum of 5 years starting from date of purchase.

Wireless Specification

5 GHz

Transmit (dBm)

Receive Sensitivity

6MBit/s

24

-96

54MBit/s

21

-80

MCS0

24

-96

MCS7

20

-75

MCS9

18

-70

MCS11

16

-67

2.4 GHz

Transmit (dBm)

Receive Sensitivity

1MBit/s

11MBit/s

6MBit/s

54MBit/s

MCS0

MCS7

MCS9

MCS11

Ethernet test results

• All tests are done with Xena Networks specialized test equipment (XenaBay),and done according to RFC2544 (Xena2544)
• Max throughput is determined with 30+ second attempts with 0,1% packet loss tolerance in 64, 512, 1518 byte packet sizes
• Test results show device maximum performance, and are reached using mentioned hardware and software configuration, different configurations most likely will result in lower results
