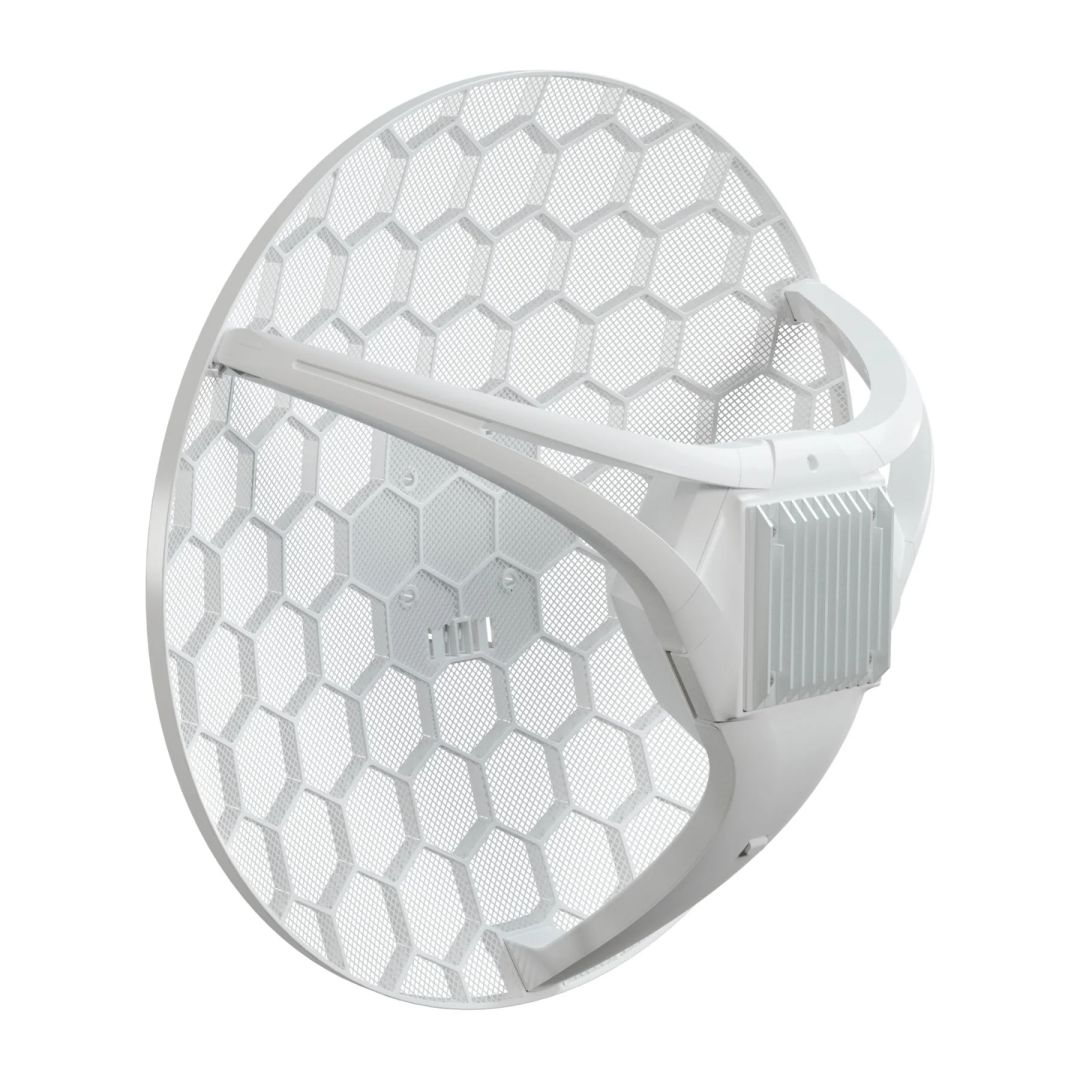

Mikrotik - LHGG LTE7 kit - LHGGR&R11E-LTE7

Specification

Specifications

• Product codeLHGGR&R11e-LTE7
• Suggested price$169.00
• ArchitectureARM 64bit
• CPU88F3720
• CPU core count2
• CPU nominal frequency800 MHz
• CPU Threads count2
• RouterOS license3
• Operating SystemRouterOS v7
• Size of RAM256 MB
• Storage size16 MB
• Storage typeFLASH
• MTBFApproximately 200'000 hours at 25C
• Tested ambient temperature-40°C to 70°C

Powering

• Number of DC inputs1 (PoE-IN)
• Max power consumption8 W
• Max power consumption without attachments8 W
• PoE in802.3af/at
• Cooling typePassive
• PoE in input Voltage12-57 V

Mobile

• 3G CategoryR8 (DL: 42.2 Mbps; UL: 5.76 Mbps)
• 3G bands1 (2100 MHz)
  3 (1800 MHz)
  5 (850 MHz)
  8 (900 MHz)
• LTE Category7 (DL: 300 Mbps; UL: 100 Mbps)
• MIMO DL2x2
• MIMO UL1x1
• LTE FDD bands1 (2100 MHz)
  3 (1800 MHz)
  5 (850 MHz)
  7 (2600 MHz)
  8 (900 MHz)
  20 (800 MHz)
  28 (700 MHz)
• LTE TDD bands38 (2600 MHz)
  40 (2300 MHz)
  41 (2500 MHz)
• TAC35312597

Ethernet

• 10/100/1000 Ethernet ports1

Peripherals

• Number of SIM slots1 Modem (Micro SIM)
• MiniPCI-e slots1

Other

• Mode buttonYes

Certification & Approvals

• CertificationCE, EAC, ROHS
• IP54
