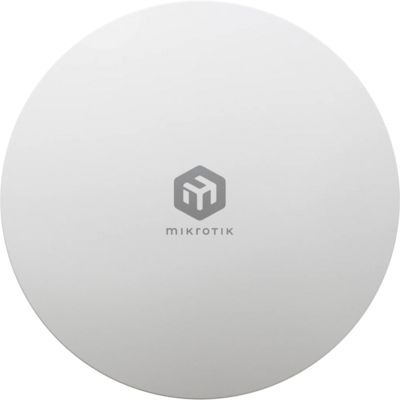

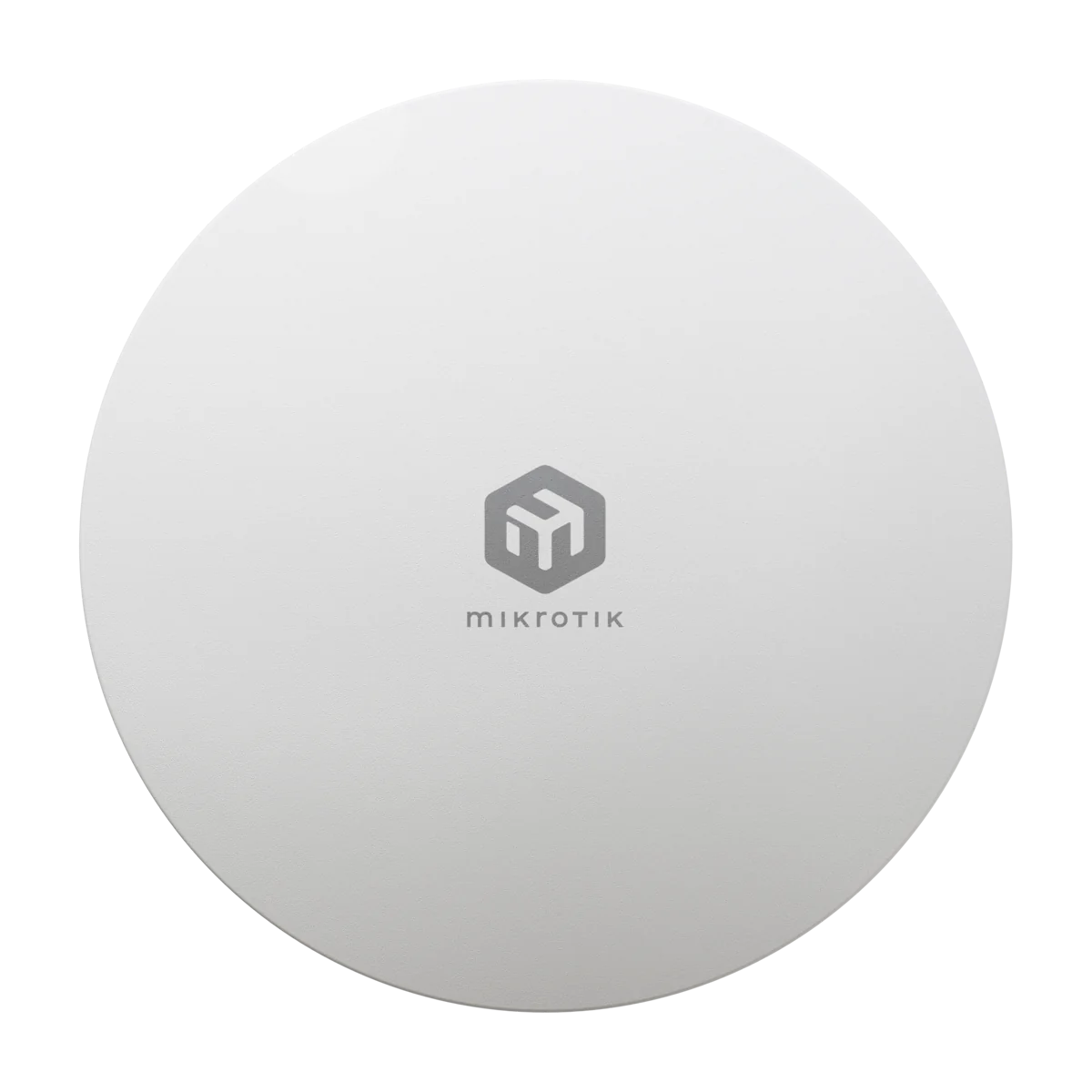

MikroTik - ATL 5G R16 kit 1xGbE LAN port 1xSIM slot 16dBi LTE20 modem 5G/LTE antenna - ATLGM&RG520F-EU

Specifications

• Product codeATLGM&RG520F-EU
• ArchitectureARM 64bit
• CPU88F3720
• CPU core count2
• CPU nominal frequency800 MHz
• CPU Threads count2
• RouterOS license3
• Operating SystemRouterOS v7
• Size of RAM512 MB
• Storage size32 MB
• Storage typeFLASH
• MTBFApproximately 200'000 hours at 25C
• Tested ambient temperature-40°C to 70°C

Powering

• Number of DC inputs1 (PoE-IN)
• Max power consumption10 W
• Max power consumption without attachments10 W
• PoE in802.3af/at
• Cooling typePassive
• PoE in input Voltage12-56 V

Mobile

• 3G CategoryR8 (42.2Mbps Downlink, 5.76Mbps Uplink)
• 3G bands1 (2100MHz)
  5 (850MHz)
  8 (900MHz)
• LTE Category20 (2.0 Gbps Downlink, 200 Mbps Uplink)
• MIMO DL4x4
• LTE FDD bands20 (800MHz)
  28 (700MHz)
  3 (1800MHz)
  5 (850MHz)
  7 (2600MHz)
  8 (900 MHz)
  1 (2100MHz)
  32 (1500 MHz)
• LTE TDD bands40 (2300MHz)
  38 (2600MHz)
  41 (2500MHz)
  42 (3500MHz)
  43 (3700 MHz)
• 5G NSA FDD bands1 (2100 MHz)
  3 (1800 MHz)
  5 (850 MHz)
  7 (2600 MHz)
  8 (900 MHz)
  20 (800 MHz)
  28 (700 MHz)
• 5G NSA TDD bands40 (2300 MHz)
  41 (2500 MHz)
  77 (3700 MHz)
  78 (3500 MHz)
  76 (1500 MHz)
  38 (2600 MHz)
  75 (1500 MHz)
• 5G SA FDD bands1 (2100 MHz)
  3 (1800 MHz)
  5 (850 MHz)
  7 (2600 MHz)
  8 (900 MHz)
  20 (800 MHz)
  28 (700 MHz)
• 5G SA TDD bands38 (2600 MHz)
  40 (2300 MHz)
  41 (2500 MHz)
  75 (1500 MHz)
  76 (1500 MHz)
  77 (3700 MHz)
  78 (3500 MHz)
• TAC86945405

Ethernet

• 10/100/1000 Ethernet ports1
• Number of 1G Ethernet ports with Reverse PoE (PoE-in)1

Peripherals

• Number of SIM slots1 Modem (Micro SIM)
• Number of M.2 slots1

Other

• Mode buttonYes
• eSIMYes

Certification & Approvals

• CertificationCE, EAC, ROHS
• IP66

Included parts

24V 0.8A power adapter

Gigabit PoE injector

Hose clamp 2

Note

The device has an operating system preinstalled and licensed. No separate purchase is necessary and the product is ready to use. The device includes free software updates for the life of the product or a minimum of 5 years starting from date of purchase.
