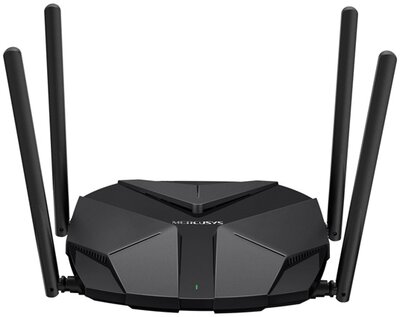

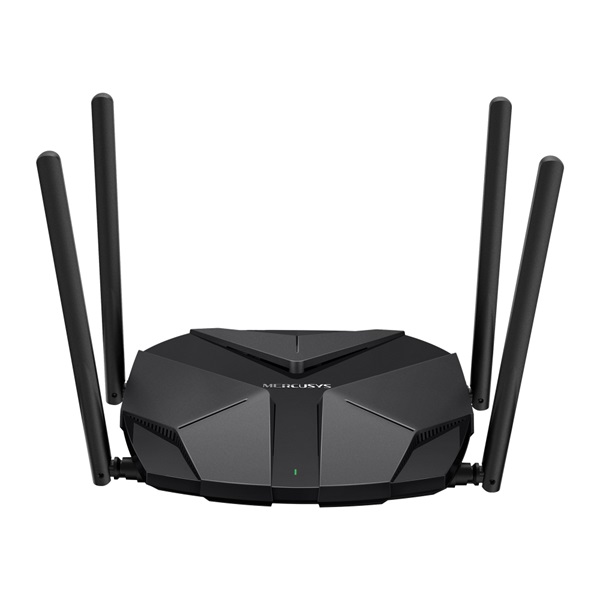

MERCUSYS - MR85X AX3000 Dual-Band Wi-Fi 6 Router

Típus	Wifi Router
Vezeték nélküli frekvenciák	2,4 GHz + 5 GHz (Dualband)
Antennák száma	4 db
Antennák típusa	Fix antenna
2,4 GHz sebesség (max)	574Mbps
5 GHz sebesség (max)	2402Mbps
Extra tulajdonság	WPS
Súly	0.88 kg

WirelessWi-Fi Class

AX3000

 Wi-Fi (2.4 GHz)

574Mbps

 Wi-Fi ( 5 GHz)

2402Mbps

 Wireless Standards

802.11ax/ac/a/b/g/n

 Max Channel Width

160MHz

 Reception Sensitivity

5G:
 11a 6Mbps: -95dBm
 11a 54Mbps:-76.5dBm
 11n HT20 MCS7:-76dBm
 11n HT40 MCS7:-73dBm
 11ac VHT20 MCS8:-71.5dBm
 11ac VHT40 MCS9:-67dBm
 11ac VHT80 MCS9:-63.5dBm
 11ax HE20 MCS11:-64.5dBm
 11ax HE40 MCS11:-63dBm
 11ax HE80 MCS11:-58.5dBm
 11ax HE160 MCS11:-56dBm

2.4G:
 11g 6Mbps : -97dBm
 11g 54Mbps: -79dBm
 11n HT20 MCS7:-78dBm
 11n HT40 MCS7:-75dBm
 11ax HE20 MCS11:-66.5dBm
 11ax HE40 MCS11:-65.5dBm


 Max Wi-Fi Modulation

1024 QAM

 Wireless Security

WPA/WPA2/WPA3

 Wireless Functions

Guest Network
Smart Connect
Wireless Schedule
WPS
AP Isolation
Airtime Fairness

HardwareDimensions

209 × 171.7 × 42.4 mm
(8.2 × 6.8 × 1.7 in)

 Interfaces

1× 2.5G WAN
3× GE LAN

 Antenna

2× 5G External Antennas(5dBi）
1× 2.4G & 5G External Antenna(2.4G: 3dBi, 5G:5dBi)
1× 2.4G External Antenna(5dBi）

 Button

1× WPS Button
1× Reset Button

 Installation

Desktop
Wall-mount

 LED

1× SYS

 Retail Package Dimension

359 × 274 × 60mm

 Units per Carton

10

 Carton Dimension

560 × 370 × 310mm

 IPTV

IGMP Proxy
IGMP Snooping
Bridge
Tag VLAN

 Power

Input：100~240V, 50/60Hz
Output:  12V/1.5A

SoftwareOperation Mode

Router/AP mode

 WAN Mode

Dynamic IP
Static IP
PPPoE
PPTP
L2TP

 NAT Forwarding

Port Forwarding
Port Triggering
DMZ
UPnP

 Protocols

IPv4
IPv6

 Guest Network

2.4G Guest Network
5G Guest Network

 Parental Controls

Profile Settings
Time Control
Pause the Internet
Website Filtering

 DHCP

Address Reservation
DHCP Client List
Server

 DDNS

MERCUSYS
NO-IP
DynDNS

 VPN Server

OpenVPN
PPTP
L2TP/IPSec
WireGuard

 VPN Client

OpenVPN
PPTP
L2TP/IPSec
WireGuard

 Easymesh

Easymesh Compatible

 QoS

Time Settings
Priority Control

 Security

SPI Firewall
Access Control
IP & MAC Binding

 Kill Switch

Support

 ISP Feature

CWMP
ISP Preset(Agile Config)
Superadmin

 System

Firmware Upgrade
Backup and Restore
Administration
System Log
Time & Language Settings
Reboot

 Diagnostics

Ping
Traceroute

 LED Management

LED Control
Night Mode

 Device Management

MERCUSYS APP
Webpage

 Cloud

MERCUSYS ID

 Language

Bulgarian
Czech
Danish
German
English
Spanish
Finnish
French
Hungarian
Italian
Japanese
Korean
Dutch
Norwegian
Polish
Portuguese
Portuguese - Brazil
Romanian
Russian
Slovak
Swedish
Turkish
Ukrainian
Vietnamese
Chinese - Taiwan

 Advanced Features

OFDMA
MU-MIMO
BSS Color
Beamforming

OthersNetwork Services Enabled by Default Web Server Manage and configure device through web (HTTP/HTTPS) • Port: 80/443   Protocol: TCP

---

DNS DNS • Port: 53   Protocol: TCP & UDP

---

DHCP Server IP address assignment (DHCP) • Port: 67   Protocol: UDP

---

App management Manage and configure device through app • Port: 20001   Protocol: TCP • Port: 30001   Protocol: TCP • Port: 20002   Protocol: UDP Network Services Enabled by Default

Web Server

Manage and configure device through web (HTTP/HTTPS)

• Port: 80/443; Protocol: TCP



DHCP Server

IP address assignment (DHCP)

• Port: 67; Protocol: UDP



DNS

DNS

• Port: 53; Protocol: TCP & UDP



App management

Manage and configure device through app

• Port: 20001; Protocol: TCP

• Port: 20002; Protocol: UDP



 Package Contents

• AX3000 Wi-Fi 6 Router MR85X
• Power Adapter
• Quick Installation Guide
• RJ45 Ethernet Cable

 Environment

• Operating Temperature: 0°C~40°C (32°F~104°F)
• Operating Humidity: 10%~90% Non-Condensing
• Storage Humidity: 5%~90% Non-Condensing
