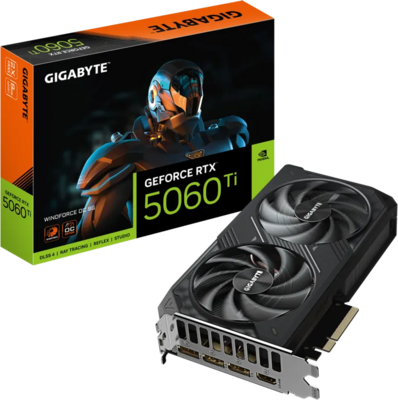

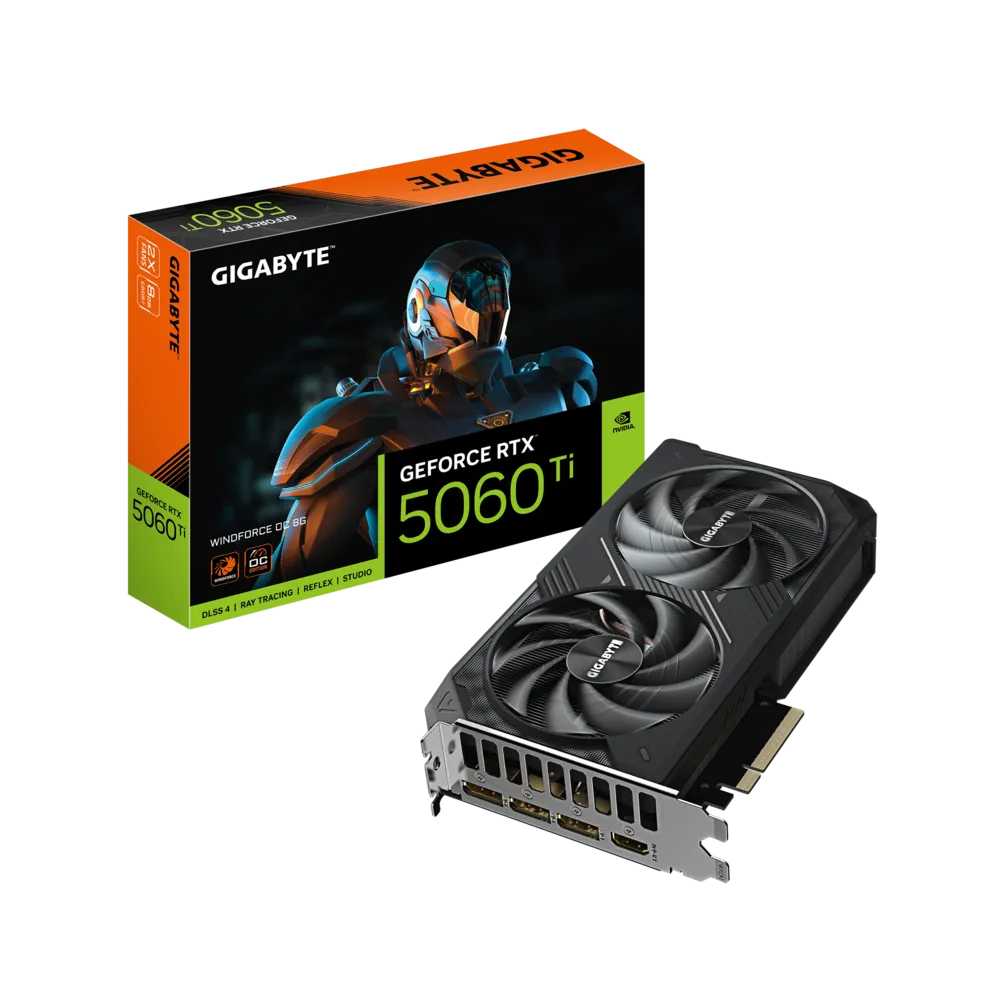

GIGABYTE RTX5060TI - WINDFORCE OC 8G - GV-N506TWF2OC-8GD

• Graphics Processing

  GeForce RTX™ 5060 Ti

• Core Clock

  2587 MHz (Reference card :2572 MHz)

• CUDA® Cores

  TBD

• Memory Clock

  28 Gbps

• Memory Size

  8 GB

• Memory Type

  GDDR7

• Memory Bus

  128 bit

• Card Bus

  PCI-E 5.0

• Digital max resolution

  7680x4320

• Multi-view

  4

• Card size

  L=208 W=120 H=40 mm

• PCB Form

  ATX

• DirectX

  DirectX 12 API

• OpenGL

  4.6

• Recommended PSU

  650W

• Power Connectors

  8 Pin*1

• Output

  DisplayPort 2.1b *3
  HDMI 2.1b *1

• Accessories

  Quick guide

* The terms HDMI, HDMI High-Definition Multimedia Interface, HDMI Trade dress and the HDMI Logos are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.
* The entire materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at anytime without prior notice.
* Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.
* All trademarks and logos are the properties of their respective holders.
* Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.
