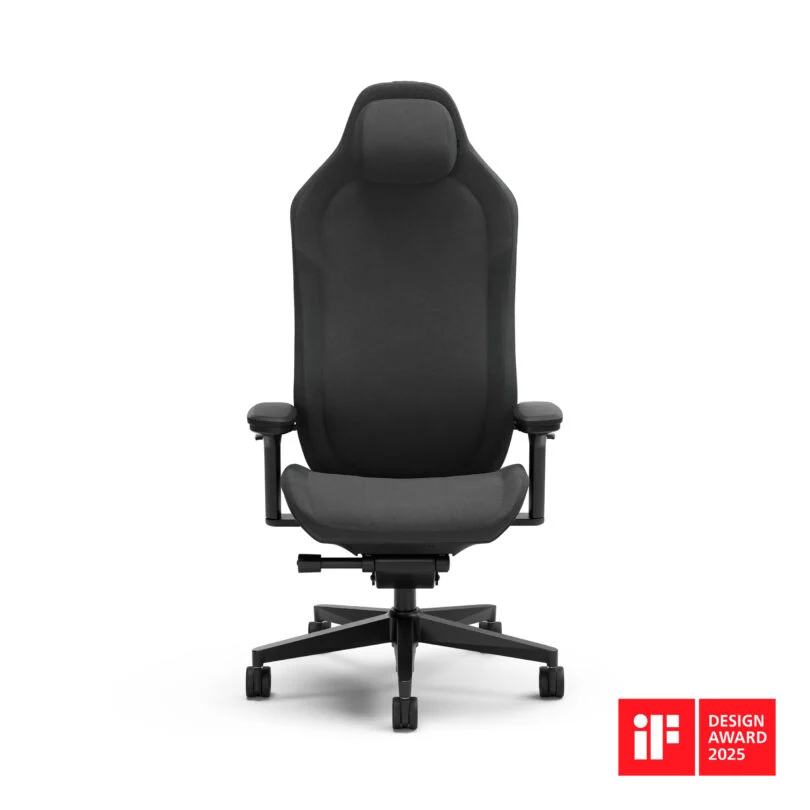

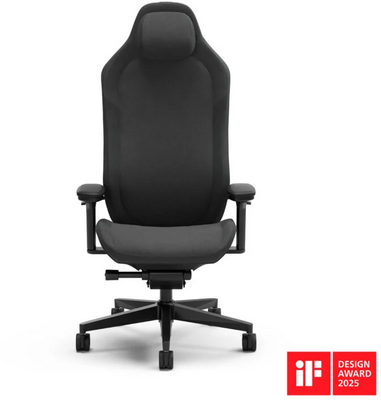

FRACTAL DESIGN - Refine - Fabric Dark - FD-CH-RE1F-01

Specifications

• Frame

  Glass fiber reinforced (20-30%) PP/PA

• Seat

  Cold cured foam (Mesh: Mesh)

• Back

  Cold cured foam (Mesh: Mesh)

• Headrest

  Memory foam

• Wheelbase

  Aluminum

• Casters

  Hubless 65 mm with soft PU wheels

• Gas Piston

  120 mm Class 4

• Mechanism

  Synchro-tilt

• Armrests

  Plastic cover with aluminum mechanism and steel bracket

• Arm Caps

  Soft PU foam with TPU cover

• Lumbar Support

  Height and depth adjustable

• Fabric Cover

  Mesh: Nylon reinforced mesh, Fabric: Woven non-organic fabric, Alcantara®: Alcantara®

Adjustability

• Seat Height (from floor)

  475 mm – 595 mm (Mesh: 490 mm – 610 mm)

• Seat Depth

  425 mm – 480 mm (Mesh: 450 mm – 505 mm)

• Armrest Height (from seat)

  160 mm – 270 mm (Mesh: 145 mm – 255 mm)

• Armrest to Armrest

  420 mm – 560 mm (Mesh: 430 mm – 560 mm)

• Armrest Rotation Adjustability

  ±15°

• Armrest Depth Adjustability

  60 mm

• Lumbar Support Height Adjustability

  110 mm

• Lumbar Support Depth Adjustability

  20 mm

• Max Back Tilt

  125° (~130° under load)

• Tilt Mechanism

  Donati Dynamic

• Back/Seat Tilt Ratio

  2:1

• Lockable Tilt Positions

  11

• Free Tilt

  Yes

• Headrest Height Adjustability

  120 mm

Measurements

• Headrest Width

  210 mm

• Headrest Depth

  80 mm

• Headrest Height

  185 mm

• Lumbar Support Pad Height

  110 mm

• Lumbar Support Pad Width

  260 mm

• Seat Pad Width

  540 mm (Mesh: 550 mm)

• Seat Pad Depth

  460 mm (Mesh: 465 mm)

• Seat Width (between seams)

  435 mm

• Arm Cap Length

  250mm

• Arm Cap Width

  110mm

• Back Height (from floor)

  1340 mm – 1465 mm

• Back Height (from seat)

  875 mm (Mesh: 860 mm)

• Back Width

  530 mm

• Caster Size

  65 mm

• Wheelbase Diameter

  700 mm
