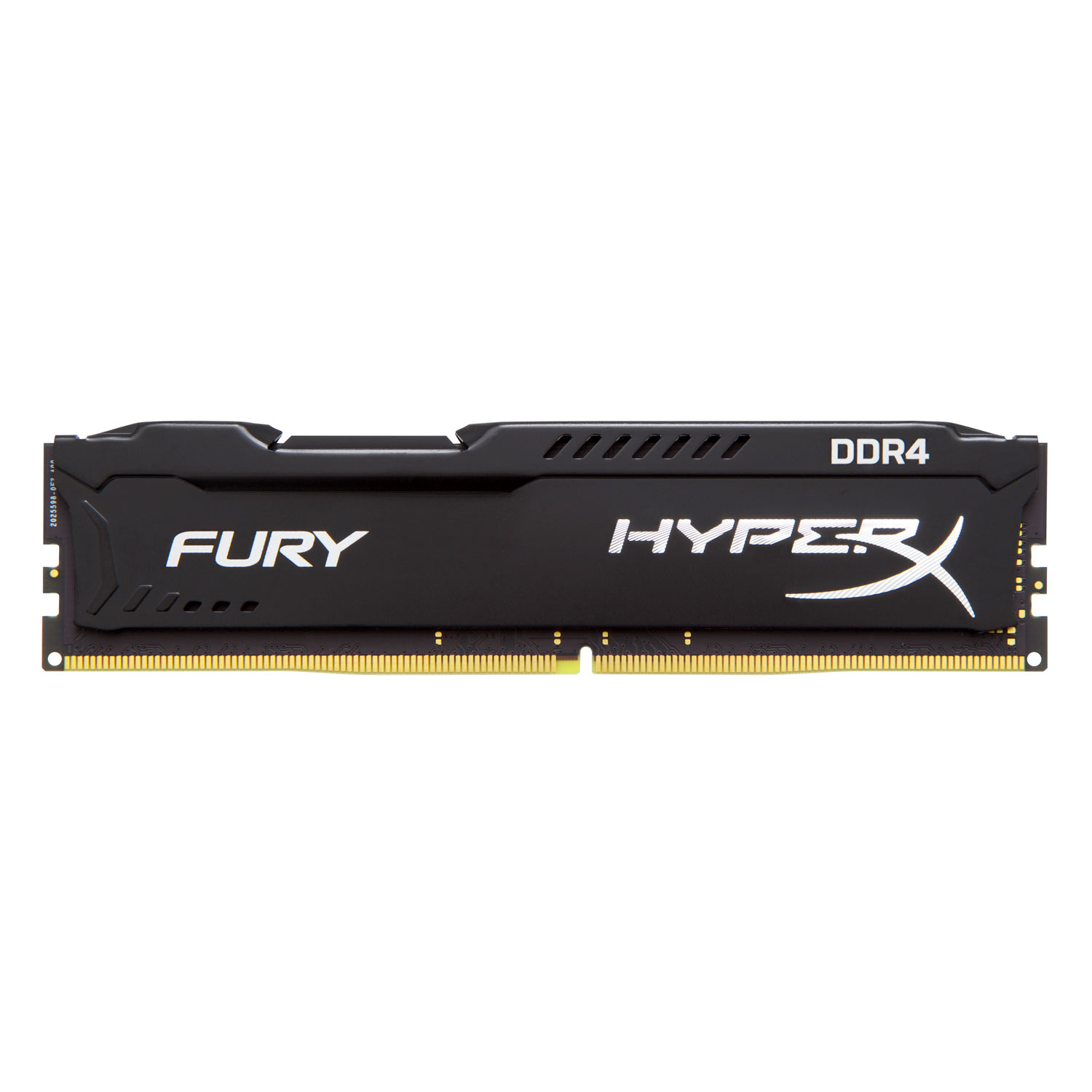

DDR4 Kingston HyperX Fury 2400MHz 8GB - HX424C15FB/8

Memória típus	DDR4
Memória kapacitás	8 GB
Órajel	2400 MHz
Kiszerelés	Single (1db)
Hűtőborda	Alacsonybordás
Hűtőborda színe	Fekete
Időzítés	CL15
Súly	0.01 kg

8GB, DDR4, 2400MHz, CL15, 1,2V

HyperX HX424C15FB/8 is a 1G x 64-bit (8GB) DDR4-2400 CL15
SDRAM (Synchronous DRAM) 2Rx8, memory module, based on
sixteen 512M x 8-bit FBGA components per module. Each module
kit supports Intel® Extreme Memory Profiles (Intel® XMP)
2.0. Each module has been tested to run at DDR4-2400 at a low
latency timing of 15-15-15 at 1.2V. Additional timing parameters
are shown in the Plug-N-Play (PnP) Timing Parameters
section below. The JEDEC standard electrical and
mechanical specifications are as follows:

JEDEC/XMP TIMING PARAMETERS
• JEDEC/PnP: DDR4-2400 CL15-15-15 @1.2V
DDR4-2133 CL14-14-14 @1.2V
•XMP Profile #1: DDR4-2400 CL15-15-15 @1.2V

• Power Supply: VDD = 1.2V Typical
• VDDQ = 1.2V Typical
• VPP - 2.5V Typical
• VDDSPD = 2.2V to 3.6V
• Nominal and dynamic on-die termination (ODT) for
data, strobe, and mask signals
• Low-power auto self refresh (LPASR)
• Data bus inversion (DBI) for data bus
• On-die VREFDQ generation and calibration
• Dual-rank
• On-board I2 serial presence-detect (SPD) EEPROM
• 16 internal banks; 4 groups of 4 banks each
• Fixed burst chop (BC) of 4 and burst length (BL) of 8
via the mode register set (MRS)
• Selectable BC4 or BL8 on-the-fly (OTF)
• Fly-by topology
• Terminated control command and address bus
• Height 1.340” (34.04mm), w/o heatsink
