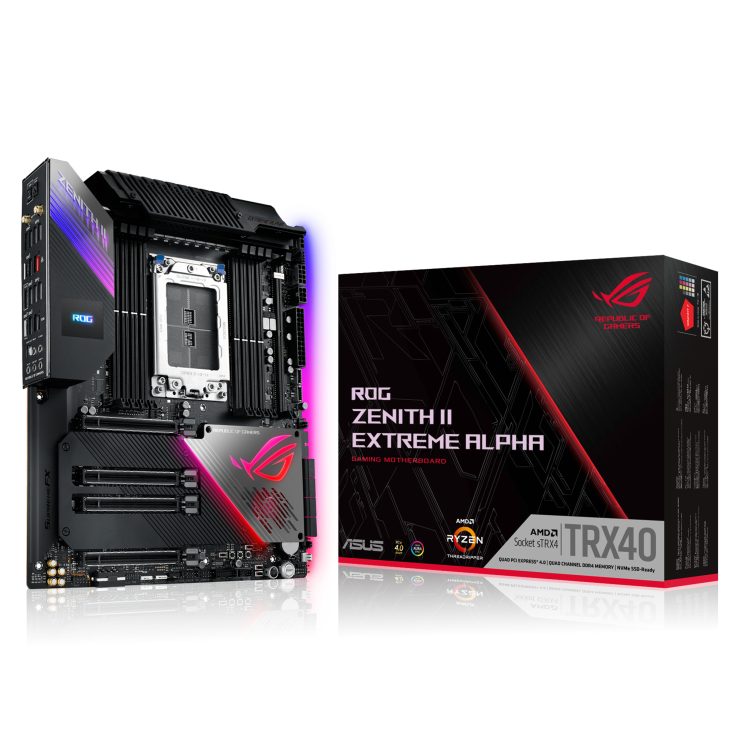

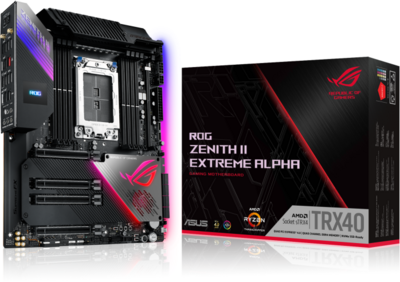

ASUS ROG ZENITH II EXTREME ALPHA

ROG Zenith II Extreme Alpha

CPU

Supports CPU up to 64 cores

Build in AMD Socket sTRX4 for 3^rd Gen AMD Ryzen^™ Threadripper^™ Series Desktop Processors

* Refer to www.asus.com for CPU support list

Chipset

AMD TRX40

Memory

8 x DIMM, Max. 256GB, DDR4 4733(O.C)/4600(O.C)/4400(O.C)/4333(O.C.)/4266(O.C.)/4133(O.C.)/3800(O.C.)/3733(O.C.)/3400(O.C.)/2800/2666/2400/2133 MHz ECC and non-ECC, Un-buffered Memory

AMD Ryzen™ Threadripper™ Processors

Quad Channel Memory Architecture

* Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).

Multi-GPU Support

Supports NVIDIA® 3-Way SLI® Technology

Supports AMD 3-Way CrossFireX™ Technology

Expansion Slots

3^rd Gen AMD Ryzen^™ Threadripper^™ Series Desktop processors

4 x PCIe 4.0 (x16, x16/x16, x16/x8/x16, x16/x8/x16/x8)

Storage

3^rd Gen AMD Ryzen^™ Threadripper^™ Series Desktop processors :

1 x ROG DIMM.2 Module supports 2 M.2 Socket 3 , with M key, type 2242/2260/2280/22110 storage devices support(SATA & PCIe 4.0 x4 mode)

2 x M.2 Socket 3, with M Key, type 2242/2260/2280 (PCIe 4.0 x4 mode)*¹

1 x M.2 Socket 3, with M Key, type 2242/2260/2280 (PCIe 4.0 x4/x2 mode)*²

AMD TRX40 chipset :

ASMedia® SATA 6Gb/s controller :

Support Raid 0, 1, 10

4 x SATA 6Gb/s port(s),

LAN

Aquantia AQC-107 10G

Intel® I211-AT, 1 x Gigabit LAN Controller(s)

Anti-surge LANGuard

ROG GameFirst V Technology

Wireless Data Network

Supports up to 2.4Gbps max data rate

Wi-Fi 802.11 ax, Bluetooth® 5.0

Supports 2x2 MU-MIMO

Intel® Wi-Fi 6 AX200

Supports dual band frequency 2.4/5 GHz

Bluetooth

Bluetooth® 5.0

Audio

- High quality120dBSNR stereo playback output108dBSNR recording input

- ESS® ESS9018Q2C

- Supports : Jack-detection, Multi-streaming, Front Panel MIC Jack-retasking

- LED-illuminated design - Brighten up your build with the gorgeous illuminated audio trace path.

ROG SupremeFX8-Channel High Definition Audio CODEC S1220

- Impedance sense for front and rear headphone outputs

Audio Feature :

- SupremeFX Shielding™ Technology

- Sonic Studio III + Sonic Studio Virtual Mixer

- DTS® Sound Unbound

- Sonic Radar III

USB Ports

3rd Gen AMD Ryzen™ Threadripper™ Processors :

4 x USB 3.2 Gen 2 port(s) (4 at back panel, red)

AMD TRX40 chipset :

2 x USB 3.2 Gen 2 front panel connector port(s)

3 x USB 3.2 Gen 2 port(s) (3 at back panel, red, 2 x Type-A+1 x Type-C)

3 x USB 2.0 port(s)

8 x USB 3.2 Gen 1 port(s) (4 at back panel, blue)

ASMedia® USB 3.2 Gen2x2 controller :

1 x USB 3.2 Gen 2x2 (up to 20Gbps) port(s) (1 at back panel, , Type-C)

ASMedia® USB 3.2 Gen 1 controller :

ROG Exclusive Features

USB BIOS FlashBack^™

- Infineon TDA21472 Power Stage

- FlexKey Button

Clear CMOS button

ProbeIt

ROG DIMM.2 module with heatsink

ROG Aluminum heatsink cover

ROG CPU-Z

ROG Aura

Extreme Engine Digi+ :

- 10K Black Metallic Capacitors

ROG Extreme OC kit :

- OptiMem III

- Safe Boot button

- Slow Mode

- LN2 Mode

UEFI BIOS features :

- ROG SSD Secure Erase

- Graphic Card Information Preview

ROG Patented Pre-mounted I/O Shield

ROG Exclusive Software

- Mem Tweakit

- RAMCache III

- GameFirst V

Special Features

- BIOS FlashBack^™ Button

- Ai Charger+

LiveDash OLED 1.77”

- ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED, HDD LED)

MemOK! II

ASUS Dual Intelligent Processors 5-Way Optimization by Dual Intelligent Processors 5 :
- 5-Way Optimization tuning key perfectly consolidates TPU, EPU, DIGI+ VRM, Fan Expert 4, and Turbo App

Gamer´s Guardian:

- DRAM Overcurrent Protection

- Digi+ VRM

- SafeSlot

- ESD Guards on LAN, Audio,and USB ports

AURA :

- Aura Lighting Control

- Aura RGB Strip Headers

- Addressable Gen 2 Header

ASUS Exclusive Features :

- AI Suite 3

- Pre-mounted I/O Shield

- ASUS EZ Flash 3

- ASUS C.P.R.(CPU Parameter Recall)

- Clear CMOS Button

ASUS Q-Design :

- ASUS Q-Code

- ASUS Q-Slot

- ASUS Q-DIMM

- ASUS Q-Connector

Digi+VRM

Armoury Crate

Back I/O Ports

4 x USB 3.2 Gen 1 blue

5 x USB 3.2 Gen 2 (red) (3 x Type-A+1 x Type-C)

1 x USB BIOS FlashBack^™ Button(s)

1 x USB 3.2 Gen 2x2 (up to 20Gbps) ports (Type-C)

5 x LED-illuminated audio jacks

1 x Aquantia AQC-107 10G LAN port

1 x LAN (RJ45) port(s)

1 x Optical S/PDIF out

1 x Clear CMOS button(s)

Internal I/O Ports

1 x M.2_3 cold storage Switch

1 x Chipset Fan Header

1 x VRM_HS_FAN Header

1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices(support PCIe 4.0 x4 mode)

1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices(support PCIe 4.0 x4/x2 mode)

2 x USB 3.2 Gen 2 front panel connector

2 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 4 USB 3.2 Gen 1 port(s)

1 x FlexKey button

1 x FS Mode switch

1 x M.2 socket pre-installed with a Wi-Fi/Bluetooth module

2 x W_PUMP+ connector

2 x USB 2.0 connector(s) support(s) additional 3 USB 2.0 port(s)

2 x Aura RGB Strip Header

1 x WB_SENSOR

1 x 6-pin EATX 12V Power connector

2 x 8-pin EATX 12V Power connectors

1 x 4-pin EZ_PLUG Power connector(s)

7 x ProbeIt Measurement Points

1 x BIOS Switch button(s)

1 x DIMM.2 Slot supports 2 M.2 drives (2242-22110)

1 x RSVD Switch

2 x Addressable Gen 2 header(s)

1 x TPM header

8 x SATA 6Gb/s connector(s)

1 x CPU Fan connector(s)

1 x CPU OPT Fan connector(s)

2 x Chassis Fan connector(s)

1 x H_AMP fan connector

1 x 24-pin EATX Power connector(s)

1 x Front panel audio connector(s) (AAFP)

1 x Node Connector(s)

1 x LN2 Mode jumper(s)

1 x Safe Boot button

1 x ReTry button

1 x W_IN header

1 x W_OUT header

1 x W_FLOW header

1 x Speaker connector

1 x Start button

Accessories

1 x Wi-Fi moving antenna

1 x ROG Multi-Bit screwdriver

6 x SATA 6Gb/s cable(s)

1 x Fan Extension Card II (6 x 4-pin Chassis Fan connectors, 3 x RGB headers, 3 x 2-pin Thermal sensor header)

1 x Fan Extension Card II power cable

1 x Fan Extension Card II NODE connector cable

1 x Fan Extension Card II screw package

1 x ROG DIMM.2 with heatsink

1 x M.2 Pad for ROG DIMM.2

User´s manual

1 x ROG logo plate sticker

1 x ROG big sticker

1 x Thermistor cable(s)

1 x ROG coaster(s)

2 x ROG weave SATA 6G cable

1 x ROG Thank you card

BIOS

2 x 128 Mb Flash ROM, UEFI AMI BIOS, PnP, WfM2.0, SM BIOS 3.0, ACPI 7.1

Manageability

WOL , PXE

Operating System

Windows® 10 64-bit

Form Factor

12.2 inch x 10.9 inch ( 31 cm x 27.7 cm )

Extended ATX Form Factor

Note

* When the M.2_2 on board is operating in PCIe mode,PCIE x16_4 will running at x4 mode ** When the M.2_3 on board is operating in PCIe x4 mode, SATA6G_E1-E4 will be disabled *** Supports PCIE RAID configurations via onboard M.2 storages.
