| Processzor foglalat | Socket 1700 |
| Chipset | Q670 |
| Memória típus | DDR5 |
| Memória foglalatok száma | 4 x DIMM |
| Méret | MATX |
| Súly | 0.93 kg |

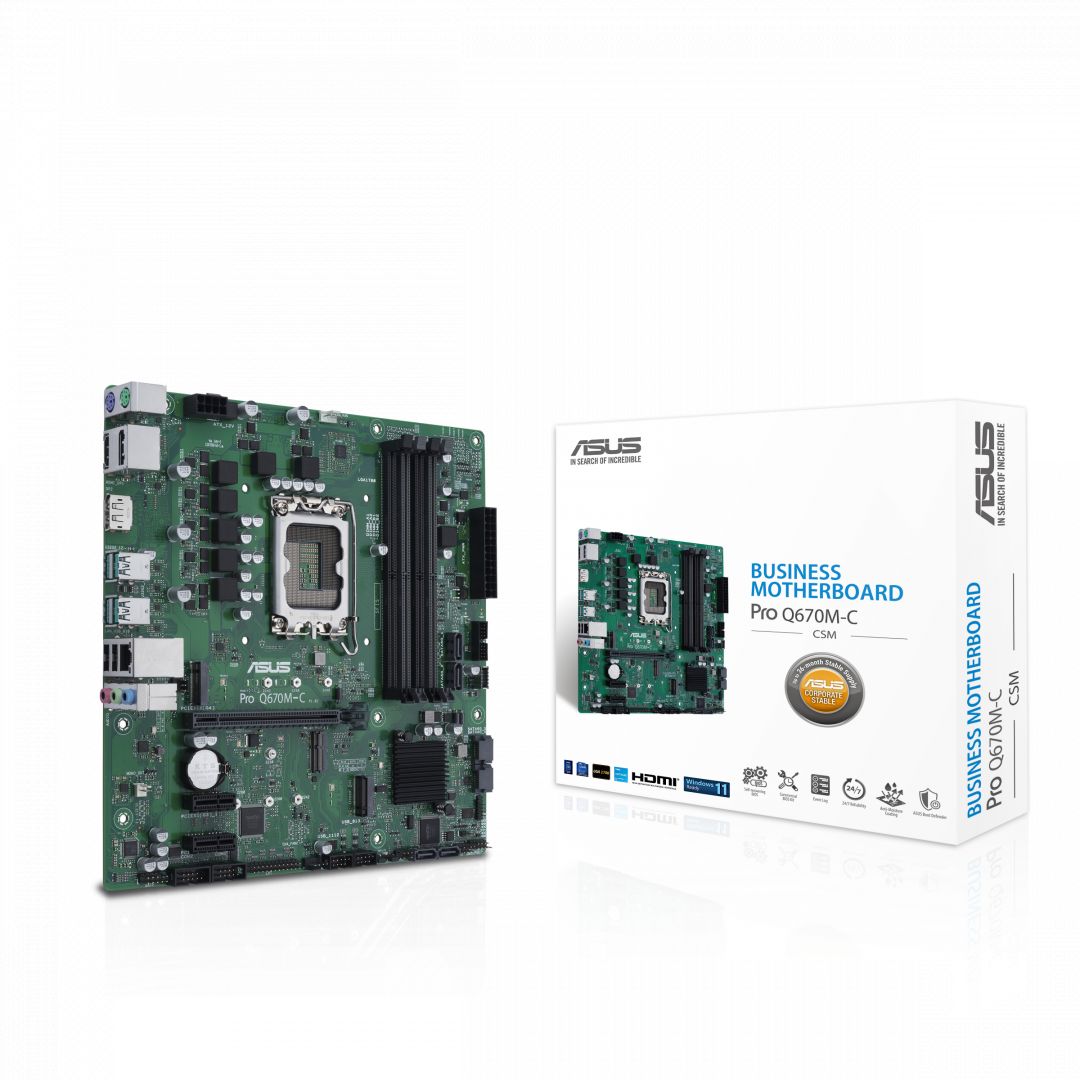

Model
Pro Q670M-C-CSM
CPU
Intel® Socket LGA1700 for Intel® Core™ 14th & 13th Gen Processors, Intel® Core™ 12th Gen, Pentium® Gold and Celeron® Processors*
Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**
* Refer to www.asus.com for CPU support list.
** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.
Chipset
Intel® Q670 Chipset
Memory
4 x DIMM, Max. 192GB, Support for DDR5 5600/5400/5200/5000/4800 memory modules*
Dual Channel Memory Architecture
Supports Intel® Extreme Memory Profile (XMP)
Support for ECC Un-buffered DIMM memory modules (operate in non-ECC mode)
Support for non-ECC Un-buffered DIMM memory modules
Optimem II
* Supported memory types, data rate(Speed), and number of DRAM module vary depending on the CPU and memory configuration, for more information refer to www.asus.com for memory support list.
Graphics
2 x DisplayPort**
1 x HDMI®***
* Graphics specifications may vary between CPU types.
** Supports max. 4K@60Hz as specified in DisplayPort 1.4.
*** Supports 4K@60Hz as specified in HDMI 2.1.
**** VGA resolution support depends on processors' or graphic cards' resolution.
Expansion Slots
Intel® Core™ Processors (14th & 13th & 12th Gen)*
1 x PCIe 4.0/3.0 x16 slot
Intel® Q670 Chipset
2 x PCIe 3.0 x1 slots
* Please check PCIe bifurcation table in support site.
Storage
Intel® Core™ Processors (14th & 13th & 12th Gen)*
M.2_1 slot (Key M), type 2242/2260/2280(support PCIe 4.0 x4 mode)
Intel® Q670 Chipset**
M.2_2 slot (Key M), type 2242/2260/2280(supports PCIe 4.0 x4 mode)
6 x SATA 6Gb/s ports
* Intel® Rapid Storage Technology supports NVMe RAID 0/1/5, SATA RAID 0/1/5/10.
** Intel® Rapid Storage Technology supports Intel® Optane Memory H Series on PCH attached M.2 slots.
Ethernet
1 x Intel® 1Gb Ethernet
ASUS LANGuard
Wireless & Bluetooth
M.2 slot only (Key E, CNVi & PCIe)
*Wi-Fi module is sold separately.
USB
Rear USB:Total 6 ports
4 x USB 3.2 Gen 2 ports (4 x Type-A)
2 x USB 2.0 ports (2 x Type-A)
Front USB:Total 7 ports
1 x USB 3.2 Gen 1 front panel connector (suppports USB Type-C®)
1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
2 x USB 2.0 headers support additional 4 USB 2.0 ports
Audio
Realtek 7.1 Surround Sound High Definition Audio CODEC*
- Supports: Jack-detection, Front Panel Jack-retasking
- Supports up to 24-Bit/192 kHz playback "
* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.
Back Panel I/O Ports
4 x USB 3.2 Gen 2 ports (4 x Type-A)
2x USB 2.0 ports (2 x Type-A)
2 x DisplayPort
1 x HDMI® port
3 x Audio jacks
1 x Intel® 1Gb Ethernet
1 x PS/2 keyboard (purple) port
1 x PS/2 mouse (green) port
Internal I/O Connectors
Fan and cooling related
1 x 4-pin CPU Fan header
2 x 4-pin Chassis Fan headers
Power related
1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector
Storage related
2 x M.2 slots (Key M)
6 x SATA 6Gb/s ports
USB
1 x USB 3.2 Gen 1 Front Panel connector (suppports USB Type-C®)
1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
2 x USB 2.0 headers support additional 4 USB 2.0 ports
Miscellaneous
1 x Clear CMOS header
1 x Chassis Intrude header
2 x COM Port headers
1 x Front Panel Audio header (AAFP)
1 x COM debug header
1 x DIS ME jumper
1 x LPT header
1 x Mono-out header(with Amp IC)
1 x M.2 slot (Key E)
1 x Speaker header
1 x 10-1 System Panel header
Fan and cooling related
1 x 4-pin CPU Fan header
2 x 4-pin Chassis Fan headers
Power related
1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector
Storage related
2 x M.2 slots (Key M)
6 x SATA 6Gb/s ports
USB
1 x USB 3.2 Gen 1 Front Panel connector (suppports USB Type-C®)
1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
2 x USB 2.0 headers support additional 4 USB 2.0 ports
Miscellaneous
1 x Clear CMOS header
1 x Chassis Intrude header
2 x COM Port headers
1 x Front Panel Audio header (AAFP)
1 x COM debug header
1 x DIS ME jumper
1 x LPT header
1 x Mono-out header(with Amp IC)
1 x M.2 slot (Key E)
1 x Speaker header
1 x 10-1 System Panel header
Special Features
ASUS EZ DIY
- Box Headers
Bespoke Motherboard Design & Business Focused Features
- ASUS Boot Defender
- Q-LED Core
- ASUS Self Recovering BIOS
- ASUS Event Log
- ASUS Commercial BIOS kit
- Anti-Moisture
- 24/7 Reliability
- Overcurrent Protection
TPM 2.0 IC onboard
Software Features
ASUS Exclusive Software
IT Management software supported
- ASUS Control Center Express(ACCE)
BIOS
256 Mb Flash ROM
Manageability
WOL by PME, PXE
Accessories
Cables
2 x SATA 6Gb/s cables
Miscellaneous
1 x I/O Shield
1 x M.2 SSD screw package
1 x M.2 Key E screw package
Installation Media
1 x Support DVD
Documentation
1 x ACC Express Activation Key Card
1 x User guide
Operating System
Windows 11, Windows 10 64-bit
Form Factor
micro-ATX
24.4cm x 24.4cm
