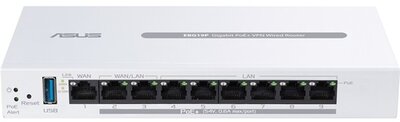

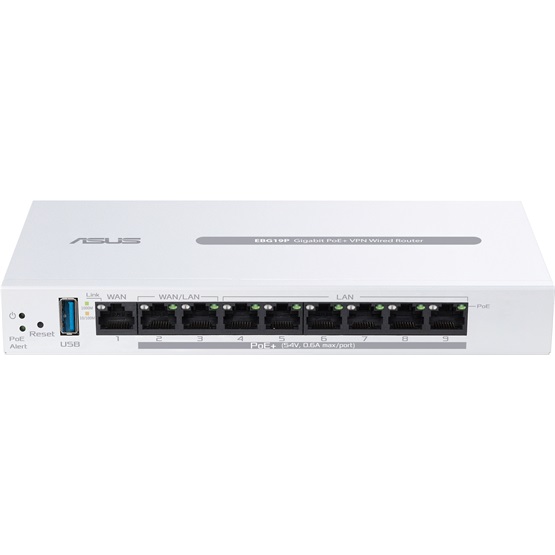

Asus - ExpertWiFi EBG19P

Model

ASUS ExpertWiFi EBG19P

Model Name

EBG19P

Network Standard

IEEE 802.1p
IEEE 802.1q
IEEE 802.3
IEEE 802.3ab
IEEE 802.3i
IEEE 802.3u
IEEE 802.3x
IPv4
IPv6

Antenna

Internal Bluetooth antenna x 1

Processor

1.8GHz Dual-core ARMv8

Memory

256 MB Flash
512 MB RAM

Operating Mode

AiMesh Node Mode

I/O Ports

Gigabit WAN Port x 1
Gigabit LAN Port x 8 (Changable WAN/LAN Port x 2)
USB 3.2 Gen 1 x 1

Buttons

Reset Button

LED Indicator

Power x 1
PoE Alert x 1

Power Supply

AC Input : 110V~240V (50~60Hz)
DC Output : 54 V with max. 2.278 A current

Package Content

ExpertWiFi EBG19P
RJ-45 cable
Power adapter
Warranty card
Quick start guide

Product Weight (g)

530g

Product Dimentions

212x95x26 mm

Remark

Content and color may vary in different regions and packages.

AiMesh

AiMesh
• Primary AiMesh Router
• AiMesh Node

Device Access Control

"Allow you to block access to unwanted websites and apps."
Web & Apps Filters
Time Scheduling
Safe Browsing
Customized Internet Schedule
• Maximum Device Access Control Profile :12
• Maximum Device Access Control Content Filter Rule :12

Dashboard

Dashboard

Self-Defined Network

"You can create additional networks for different purposes, these networks are separate from the main network domain, to provide enhanced security, and create comprehensive network environment with customized settings."
• Employee
• Guest Portal
• Guest Network
• Scheduled Network
• IoT Network
• VPN Network
• Maximum Self-Defined Network Rule :16
VLAN
Bandwidth Limiter
AP isolate
DNS Server Connection

Security

AiProtection
VPN
Let's Encrypt
DNS-over-TLS
SSH
Firewall
• Maximum Firewall Keyword Filter :64
• Maximum Firewall Network Service Filter :32
• Maximum Firewall URL Filter : 64

AiProtection

AiProtection Pro
• Router Security Assessment
• Malicious Site Blocking
• Two-Way IPS
• Infected Device Prevention and Blocking

VPN

VPN Client L2PT
VPN Client Open VPN
VPN Client PPTP
VPN Client WireGuard
VPN Server IPSec
VPN Server Open VPN
VPN Server PPTP
VPN Server WireGuard
VPN Fusion
Support Surfshark

Traffic Control

Adaptive QoS
• Bandwidth Monitor
• Bandwidth Limiter
Traditional QoS
Traffic Monitor
• Real-time Traffic Monitor
• Wired Traffic Monitor
Traffic Analyzer
• Website History

WAN

Internet Connection Type
• PPPoE
• PPTP
• L2TP
• Automatic IP
• Static IP
• IPSec
Dual WAN
Multi WAN Group
WAN Aggregation
3G / 4G LTE Dongle
4G / 5G Auto Mobile Tethering
Port Forwarding
• Maximum Port Forwarding Rule : 64
Port Triggering
• Maximum Port Triggering Rule : 32
DMZ
DDNS
NAT Passthrough
• PPTP Pass-Through
• L2TP Pass-Through
• IPSec Pass-Through
• RTSP Pass-Through
• H.323 Pass-Through
• PPPoE Relay

LAN

DHCP Server
IGMP Snooping
IPTV
LAN Link Aggregation
Manually Assign IP Address
Wake on LAN (WOL)
VLAN

USB application

4G / 5G Auto Mobile Tethering
Safely Remove Disk
Media Server
Samba Server
FTP Server
Shared Folder Privileges

User Interface

WEB: ASUSWRT
APP: ASUS ExpertWiFi APP

Management

Multiple Site Management

Administration

Configuration Backup and Restore
Diagnosis Tools
Feedback System
System Log
New Device Connect Notification
Login Captcha
Connection Diagnosis
Auto Firmware Update
