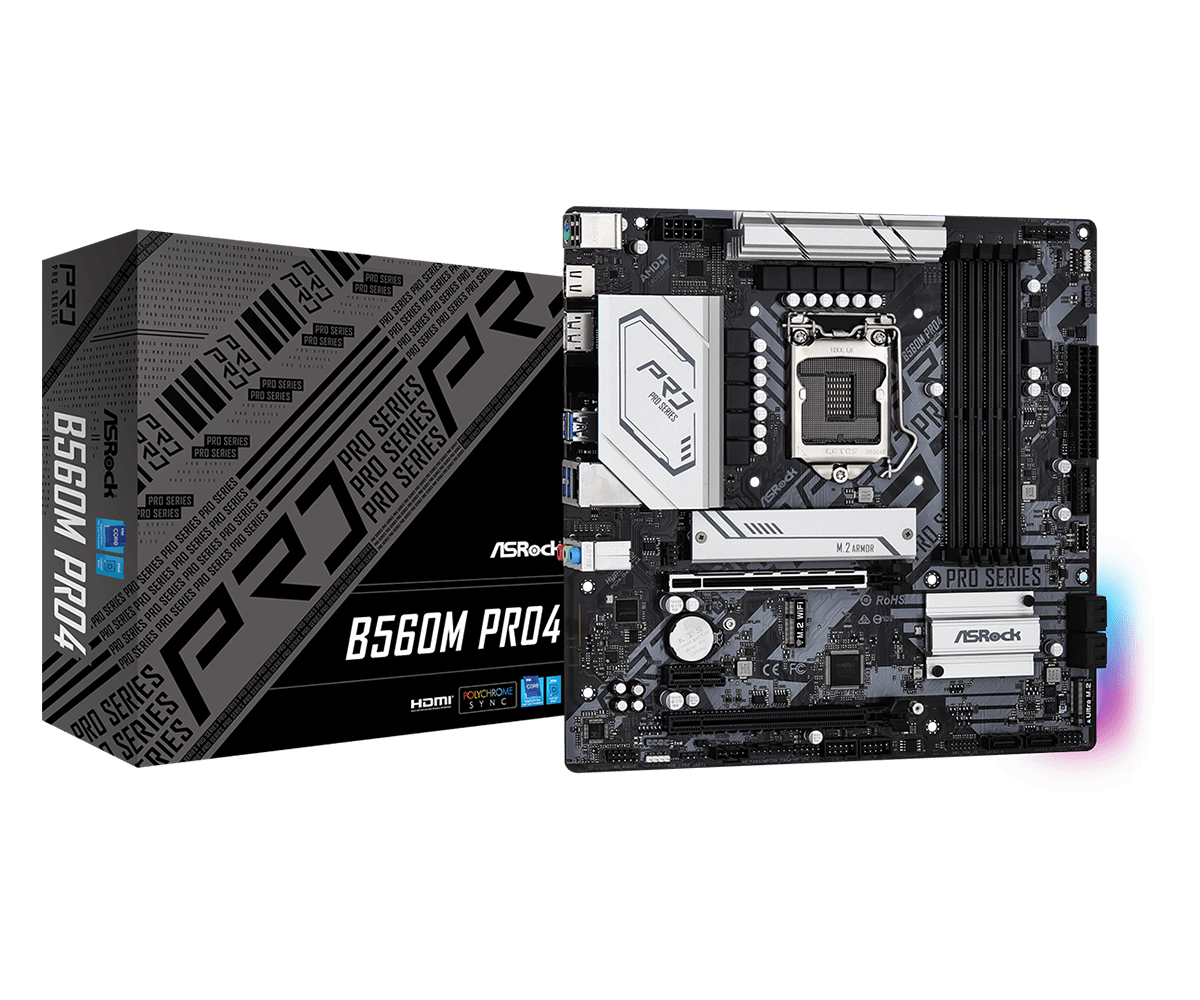

ASROCK B560M PRO4

Azonosító #185764
Gyártó ASRock
CikkszámB560M PRO4
Frissítve16 perce
Garancia 36 hónap
(33 543 Ft + ÁFA)

42 600 Ft

NEM RENDELHETŐ
0 vélemény
Írjon véleményt

SPECIFIKÁCIÓ

Processzor foglalat Socket 1200
Chipset B560
Memória típus DDR4
Memória foglalatok száma 4 x DIMM
Méret MATX
Súly 0.84 kg

Termék leírás

  • Unique Feature

    ASRock Super Alloy
    - Premium 50A Power Choke
    - Sapphire Black PCB
    - High Density Glass Fabric PCB
    ASRock Intel® 4-Layer Memory POOL (Planes on Outer Layers) Technology
    ASRock Steel Slot
    ASRock Full Coverage M.2 Heatsink
    ASRock Hyper M.2 (PCIe Gen4x4)
    ASRock POST Status Checker (PSC)
    ASRock Full Spike Protection (for all USB, Audio, LAN Ports)
    ASRock Live Update & APP Shop

  • CPU

    - Supports 10th Gen Intel® Core™ Processors and 11th Gen Intel® Core™ Processors (LGA1200)
    - Digi Power design
    - 8 Power Phase design
    - Supports Intel® Turbo Boost Max 3.0 Technology

  • Chipset

    - Intel® B560

  • Memory

    - Dual Channel DDR4 Memory Technology
    - 4 x DDR4 DIMM Slots
    - 11th Gen Intel® Core™ Processors support DDR4 non-ECC, un-buffered memory up to 4800+(OC)*
    - 10th Gen Intel® Core™ Processors support DDR4 non-ECC, un-buffered memory up to 4600+(OC)*
    - Supports ECC UDIMM memory modules (operate in non-ECC mode)
    - Max. capacity of system memory: 128GB**
    - Supports Intel® Extreme Memory Profile (XMP) 2.0

    **Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows® 32-bit OS. For Windows® 64-bit OS with 64-bit CPU, there is no such limitation.

    *11th Gen Intel® Core™ (i9/i7/i5) support DDR4 up to 2933; Core™ (i3), Pentium® and Celeron® support DDR4 up to 2666.
    10th Gen Intel® Core™ (i9/i7) support DDR4 up to 2933; Core™ (i5/i3), Pentium® and Celeron® support DDR4 up to 2666.

  • BIOS

    - 128Mb AMI UEFI Legal BIOS with multilingual GUI support
    - ACPI 6.0 Compliant wake up events
    - SMBIOS 2.7 Support
    - CPU Core/Cache, GT, DRAM, VPPM, VCCIN AUX, VCCSA,VCCIO Multi-adjustment

  • Graphics

    - 11th Gen Intel® Core™ Processors support Intel® Xe Graphics Architecture (Gen 12). 10th Gen Intel® Core™ Processors support Gen 9 Graphics
    - Graphics, Media & Compute: Microsoft® DirectX 12, OpenGL 4.5, Intel® Built In Visuals, Intel® Quick Sync Video, Hybrid / Switchable Graphics, OpenCL 2.1
    - Display & Content Security: Rec. 2020 (Wide Color Gamut), Microsoft® PlayReady 3.0, UHD/HDR Blu-ray Disc
    - Dual graphics output: support HDMI and DisplayPort 1.4 ports by independent display controllers
    - Supports HDMI 2.0 with max. resolution up to 4K x 2K (4096x2160) @ 60Hz
    - Supports DisplayPort 1.4 with max. resolution up to 4K x 2K (4096x2304) @ 60Hz
    - Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI 2.0 Port (Compliant HDMI monitor is required)
    - Supports HDCP 2.3 with HDMI 2.0 and DisplayPort 1.4 Ports
    - Supports 4K Ultra HD (UHD) playback with HDMI 2.0 and DisplayPort 1.4 Ports**

    *Intel® UHD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated.

    **11th Gen Intel® Core™ Processors support HDMI 2.0. 10th Gen Intel® Core™ Processors support HDMI 1.4.

  • Audio

    - 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
    - Supports Surge Protection
    - Nahimic Audio

  • LAN

    - Gigabit LAN 10/100/1000 Mb/s
    - Giga PHY Intel® I219V
    - Supports Wake-On-LAN
    - Supports Lightning/ESD Protection
    - Supports Energy Efficient Ethernet 802.3az
    - Supports PXE

  • Slots

    11th Gen Intel® Core™ Processors
    - 2 x PCI Express x16 Slots (PCIE1/PCIE3: single at Gen4x16 (PCIE1); dual at Gen4x16 (PCIE1) / Gen3x4 (PCIE3))*
    10th Gen Intel® Core™ Processors
    - 2 x PCI Express x16 Slots (PCIE1/PCIE3: single at Gen3x16 (PCIE1); dual at Gen3x16 (PCIE1) / Gen3x4 (PCIE3))*

    - 1 x PCI Express 3.0 x1 Slot
    - Supports AMD Quad CrossFireX™ and CrossFireX™
    - 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and Intel® CNVi (Integrated WiFi/BT)

    *Supports NVMe SSD as boot disks

  • Storage

    - 6 x SATA3 6.0 Gb/s Connectors, support Intel® Rapid Storage Technology 18, NCQ, AHCI and Hot Plug*
    - 1 x Hyper M.2 Socket (M2_1), supports M Key type 2242/2260/2280 M.2 PCI Express module up to Gen4x4 (64 Gb/s) (Only supported with 11th Gen Intel® Core™ Processors) **
    - 1 x Ultra M.2 Socket (M2_2), supports M Key type 2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s)**

    *If M2_2 is occupied by a SATA-type M.2 device, SATA3_1 will be disabled.

    **Supports NVMe SSD as boot disks
    Supports ASRock U.2 Kit

  • Connector

    - 1 x SPI TPM Header
    - 1 x Chassis Intrusion and Speaker Header
    - 2 x RGB LED Headers*
    - 2 x Addressable LED Headers**
    - 1 x CPU Fan Connector (4-pin)***
    - 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)****
    - 3 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)*****
    - 1 x 24 pin ATX Power Connector
    - 1 x 8 pin 12V Power Connector (Hi-Density Power Connector)
    - 1 x Front Panel Audio Connector
    - 1 x Thunderbolt™ AIC Connector (5-pin) (Supports ASRock Thunderbolt™ 4 AIC Card)
    - 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection)
    - 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) (Supports ESD Protection)
    - 1 x Front Panel Type C USB 3.2 Gen1 Header (Supports ESD Protection)

    *Support in total up to 12V/3A, 36W LED Strip

    **Support in total up to 5V/3A, 15W LED Strip

    ***The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power.

    ****The CPU/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power.

    *****The Chassis/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power.
    CPU_FAN2/WP, CHA_FAN1/WP, CHA_FAN2/WP and CHA_FAN3/WP can auto detect if 3-pin or 4-pin fan is in use.

  • Rear Panel I/O

    - 3 x Antenna Mounting Points
    - 1 x PS/2 Mouse/Keyboard Port
    - 1 x HDMI Port
    - 1 x DisplayPort 1.4
    - 4 x USB 3.2 Gen1 Ports (Supports ESD Protection)
    - 2 x USB 2.0 Ports (Supports ESD Protection)
    - 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
    - HD Audio Jacks: Line in / Front Speaker / Microphone

  • Software and UEFI

    Software
    - ASRock Motherboard Utility (A-Tuning)
    - ASRock Polychrome SYNC
    - ASRock XFast LAN
    UEFI
    - ASRock EZ Mode
    - ASRock Full HD UEFI
    - ASRock My Favorites in UEFI
    - ASRock Instant Flash
    - ASRock Internet Flash

    *These utilities can be downloaded from ASRock Live Update & APP Shop.

  • Support CD

    - Drivers, Utilities, AntiVirus Software (Trial Version), Google Chrome Browser and Toolbar

  • Accessories

    - Quick Installation Guide, Support CD, I/O Shield
    - 2 x SATA Data Cables
    - 3 x Screws for M.2 Sockets
    - 1 x Standoff for M.2 Socket

  • Hardware Monitor

    - Fan Tachometer: CPU, CPU/Water Pump, Chassis/Water Pump Fans
    - Quiet Fan (Auto adjust chassis fan speed by CPU temperature): CPU, CPU/Water Pump, Chassis/Water Pump Fans
    - Fan Multi-Speed Control: CPU, CPU/Water Pump, Chassis/Water Pump Fans
    - CASE OPEN detection
    - Voltage monitoring: +12V, +5V, +3.3V, CPU Vcore, DRAM, VPPM, VCCIN AUX, VCCSA, VCCIO, CPU PLL Voltage

  • Form Factor

    - Micro ATX Form Factor: 9.6-in x 9.6-in, 24.4 cm x 24.4 cm
    - Solid Capacitor design

  • OS

    - Microsoft® Windows® 10 64-bit

  • Certifications

    - FCC, CE
    - ErP/EuP ready (ErP/EuP ready power supply is required)
